IBM Storwize V7000 Unified Problem Determination Guide

Storwize V7000 Gen2 node canister ports
Each Storwize V7000 2076-524 node canister has ports for connecting Ethernet,
iSCSI, and USB peripherals, and optional expansion enclosures.
Figure 21 illustrates the location of the ports.
Storwize V7000 2076-524 node canister indicators
Each Storwize V7000 2076-524 node canister has indicator LEDs that provide status
information about the canister.
Using the callout numbers in Figure 22, refer to the tables for a listing of the
Storwize V7000 2076-524 node canister LEDs and a description of the meaning of
the LED activity.
Storwize V7000 2076-524 node canister SAS port LEDs
Table 14 on page 16 depict the status LEDs for SAS ports 1 and 2, and their
location in Figure 22.
fab10004
2
3
1

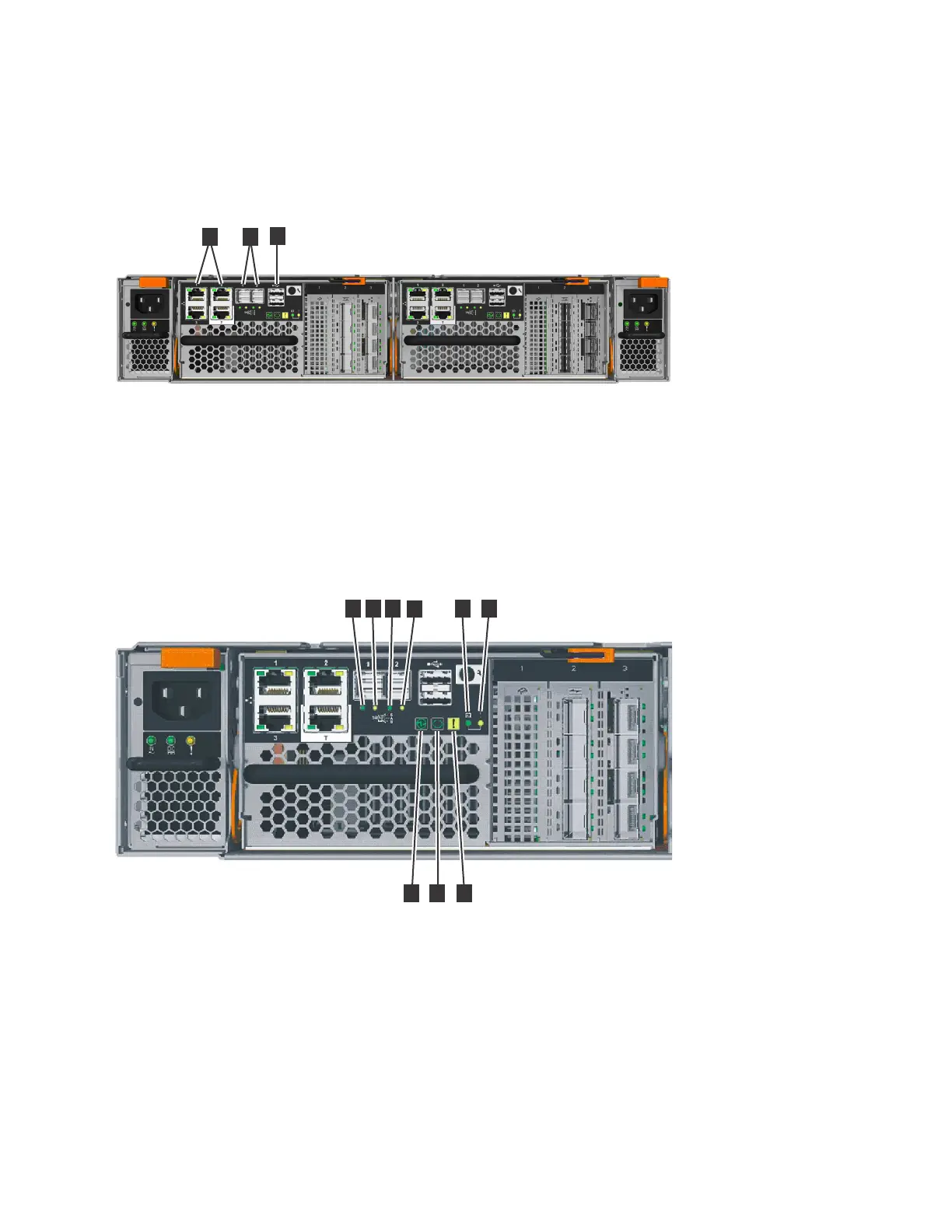

Figure 21. Storwize V7000 2076-524 node canister ports
5
6
7
8
9
fab10036
1
2
3
4
Figure 22. Storwize V7000 2076-524 node canister indicators
Chapter 1. Storwize V7000 Unified hardware components 15

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
