IBM Storwize V7000 Unified Problem Determination Guide

The USB ports have no indicators.
Ethernet ports and indicators
Ethernet ports are located side by side on the rear of the node canister. All control
enclosure models have two 1 Gbps Ethernet ports per node canister. Model
2076-312 and model 2076-324 also have two 10 Gbps Ethernet ports per node
canister.
For the 1 Gbps support, the Ethernet ports are numbered 1 on the left and 2 on the
right as shown in Figure 31 on page 28. Port 1 must be connected; the use of port 2
is optional. Two LEDs are associated with each port.
Note: The reference to the left and right locations applies to canister 1, which is
the upper canister. The port locations are inverted for canister 2, which is the lower
canister.
svc00690

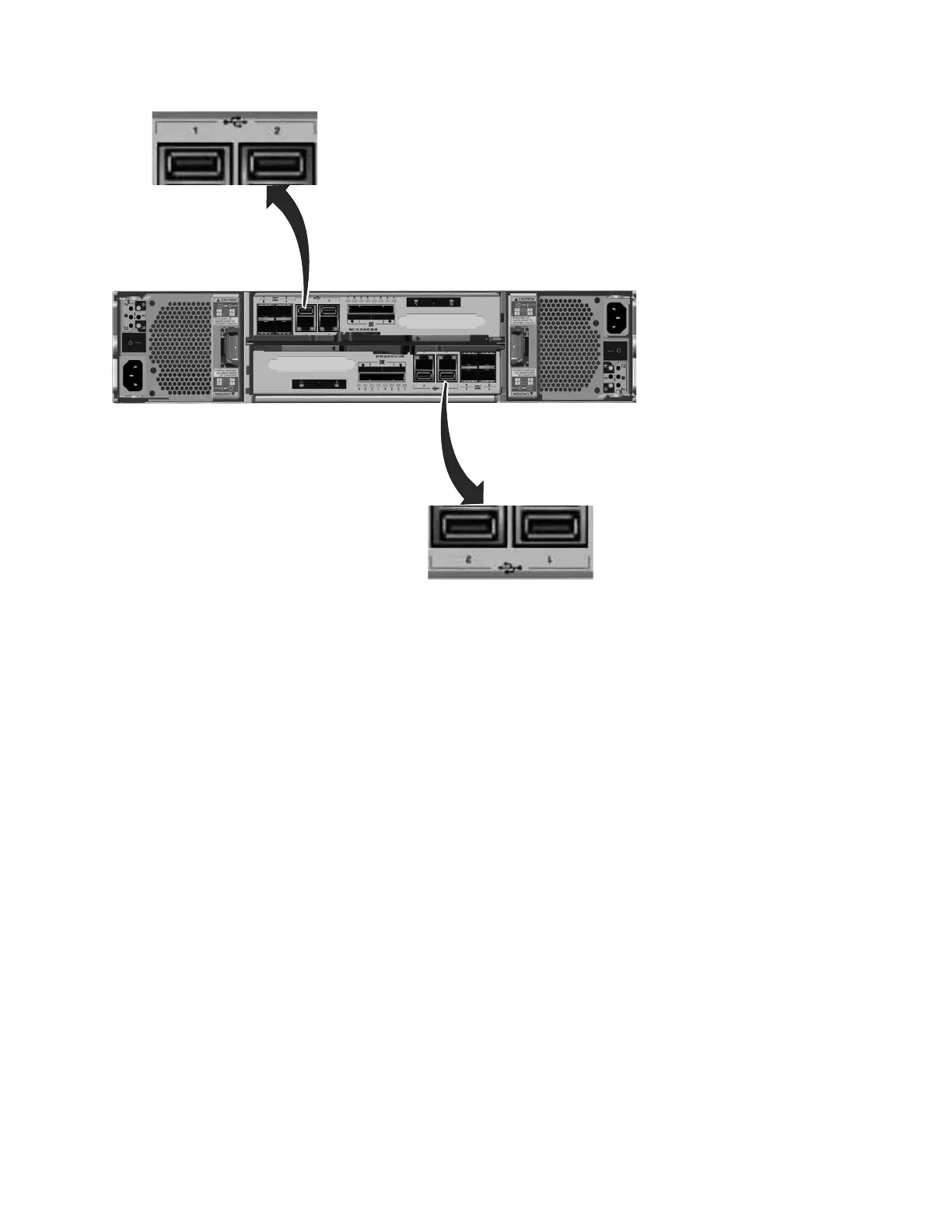

Figure 30. USB ports on the node canisters
Chapter 1. Storwize V7000 Unified hardware components 27

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
