CAUTION:
Some laser products contain an embedded Class 3A or Class 3B laser diode.
Note the following information: laser radiation when open. Do not stare into the
beam, do not view directly with optical instruments, and avoid direct exposure
to the beam. (C030)
Attention: When replacing this part, you must follow recommended procedures
for handling electrostatic discharge (ESD) sensitive devices.
Important: For correct operation, use the correct SFP transceivers with each
adapter card. The topic “Storwize V7000 2076-524 Gen2 replaceable units”
identifies the suitable IBM parts.
v Use only 8G bps SFP transceivers in the 8 Gbps Fibre Channel adapter cards.
v Use only 16 Gbps SFP transceivers in the 16 Gbps Fibre Channel adapter cards.
v Use only 10 Gbps SFP transceivers in the 10 Gbps Ethernet (FCoE/iSCSI)
adapter card.
Procedure
Complete the following steps to remove and then replace an SFP transceiver.
1. Carefully determine the failing physical port connection.
Important: Removing the wrong SFP transceiver might result in loss of data
access.
2. Remove the cable from the SFP.
Figure 84 illustrates an SFP transceiver.
3. Remove the faulty SFP transceiver from its aperture.
a. Unclip the handle of the SFP transceiver.
b. Pull on the handle of the SFP transceiver.
c. The SFP transceiver slides out of its slot.
4. Install the replacement SFP transceiver into the aperture that is vacated in step
3.
a. Open the lock on the replacement SFP transceiver.
b. Push the new SFP transceiver into the aperture until it stops.
c. Close the release handle.

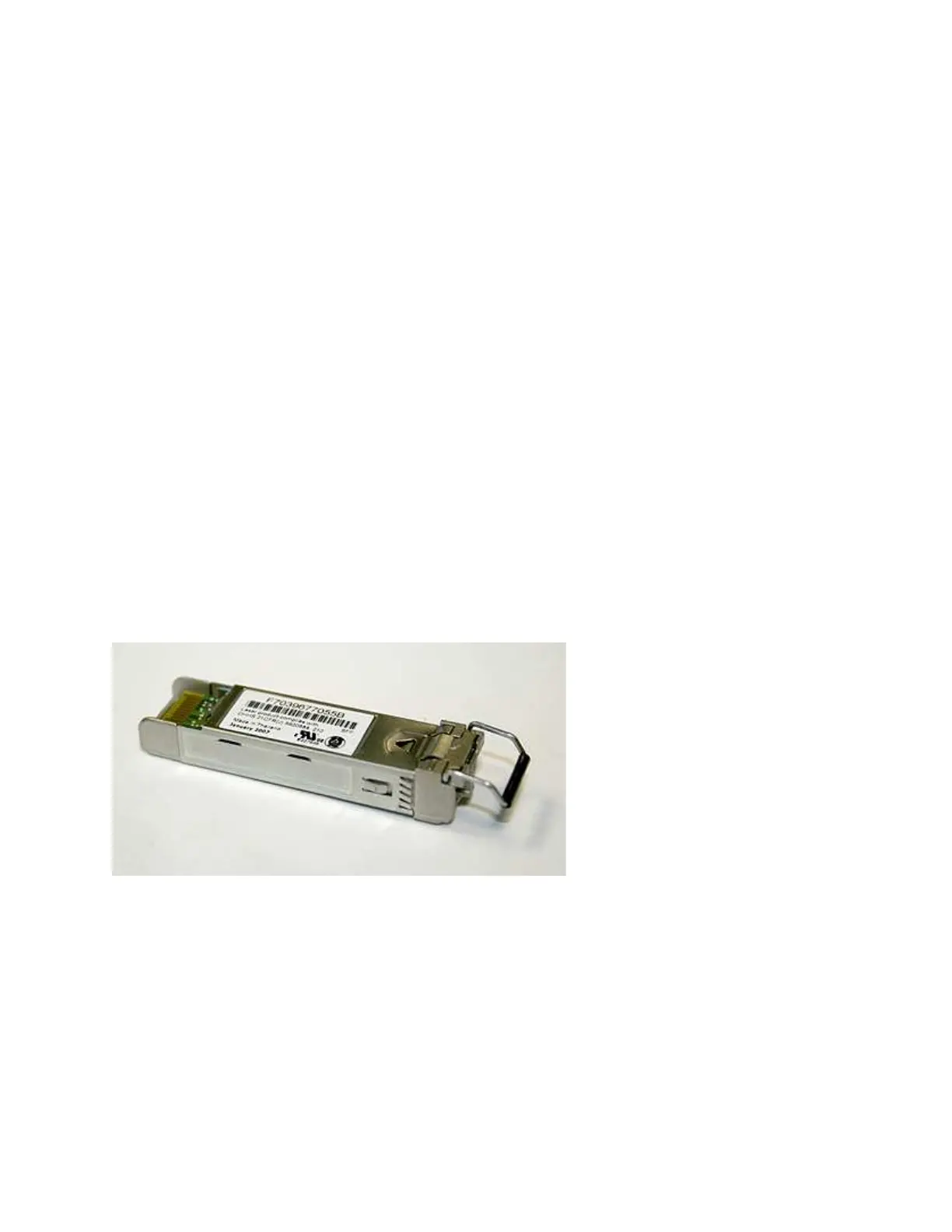

Figure 84. SFP transceiver
Chapter 5. Control enclosure 303
