Procedure
1. Insert the tabs on the bottom of the bezel into the slots on the underside of the
chassis and attach it with the screws.
2. Connect any cables that you previously removed from the front of the file
module.
Removing the 240 VA safety cover
The following procedure is for a Tier 1 customer replaceable unit (CRU).
Replacement of Tier 1 CRUs is your responsibility. If IBM installs a Tier 1 CRU at
your request, you will be charged for the installation. Service agreements can be
purchased so that you can ask IBM to replace these units.
To remove the 240 VA safety cover, complete the following steps:
1. Read the Safety information and “Installation guidelines” on page 94.
2. Follow the procedure in “Removing a file module and disconnecting power”
on page 92 to suspend the file module from the cluster and shut it down, and
then disconnect all power cords and external cables.
3. Pull the file module out of the rack.
4. Remove the file module cover (see “Removing the cover” on page 123).
v7000003

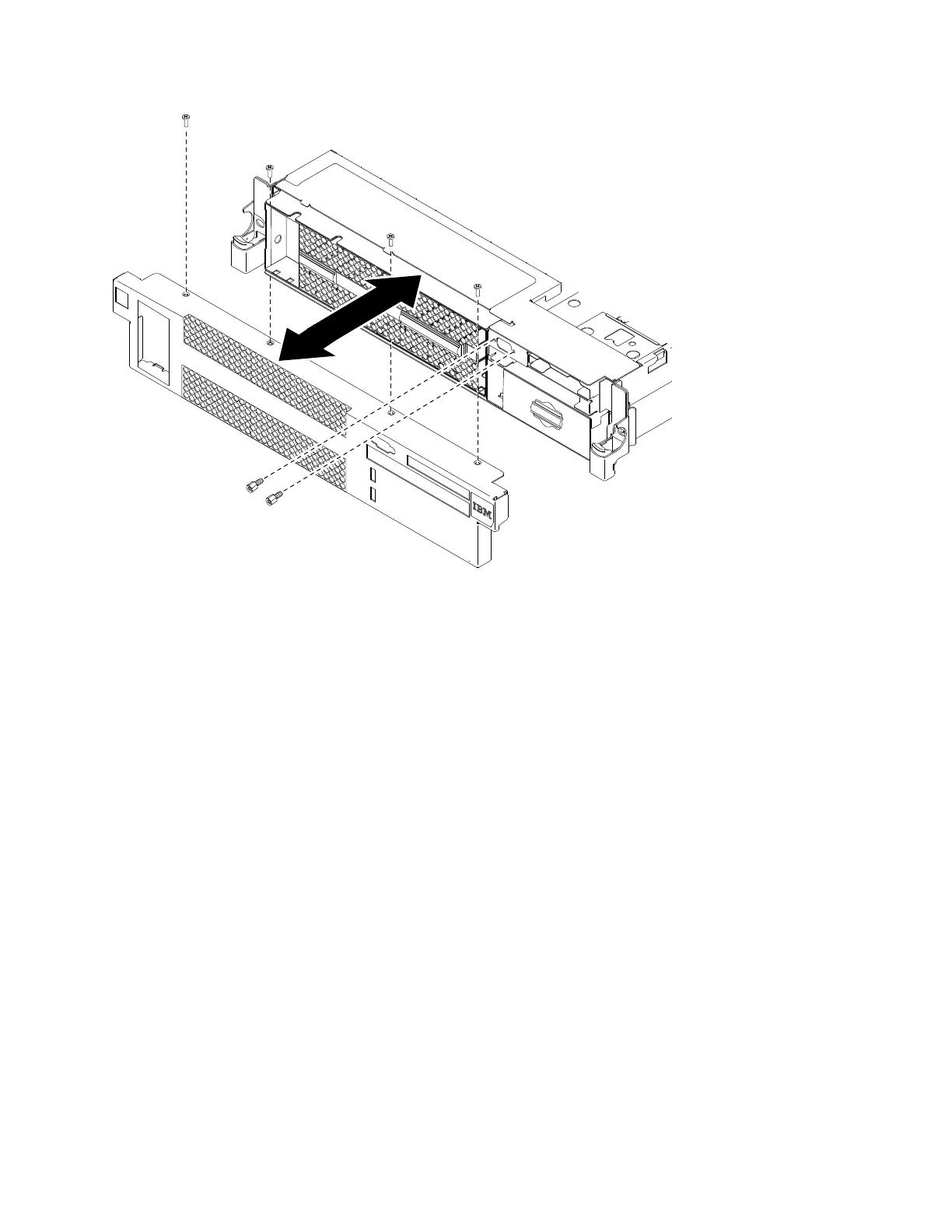

Figure 53. Installing the bezel
Chapter 4. File module 127

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
