IBM Storwize V7000 Unified Problem Determination Guide

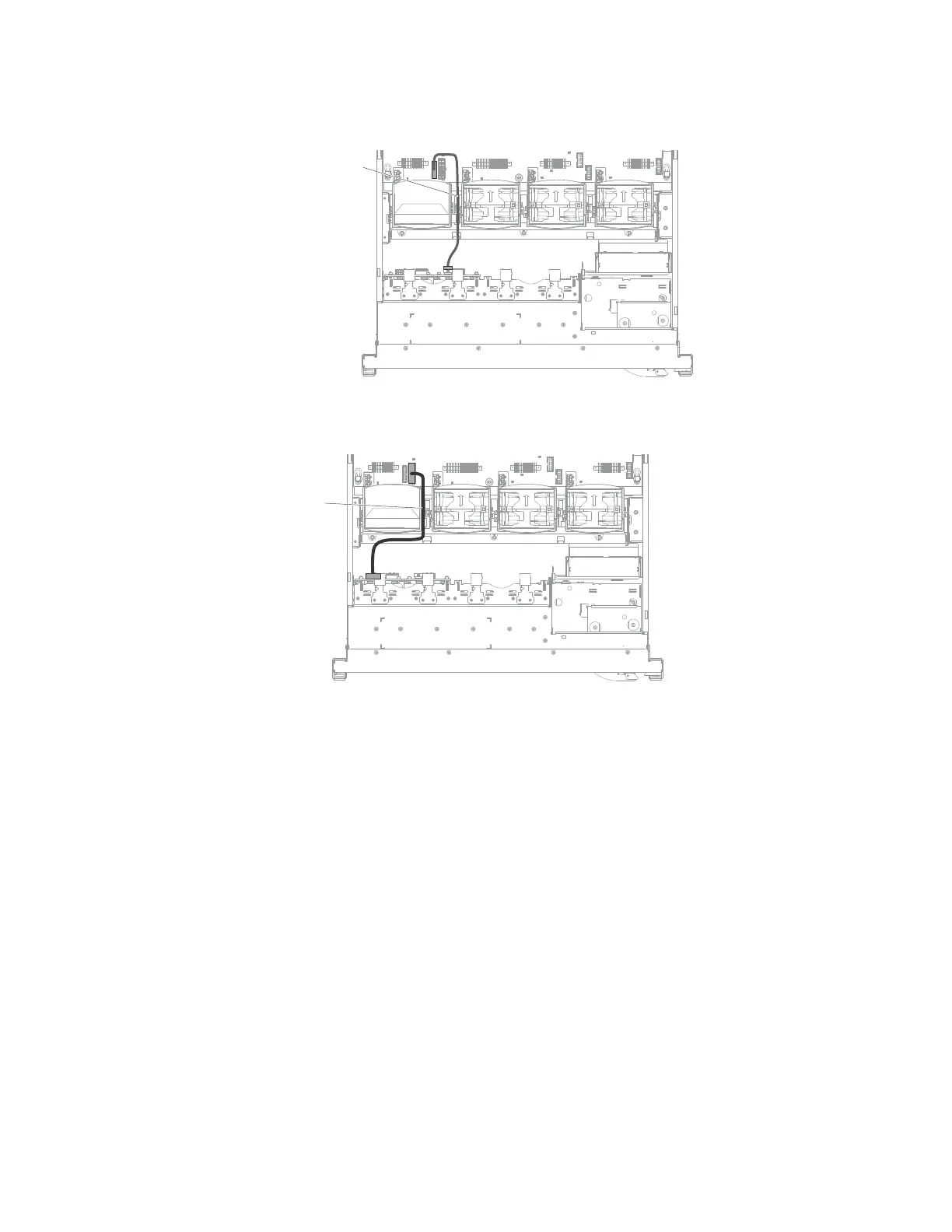

The following illustration shows the cabling information for the configuration cable
in the file module:
Configuration cable
The following illustration shows the internal routing for the hard disk drive power
cable.
SAS/SATA
backplane
power cable
The following illustration shows the internal routing and connectors for the two
SAS signal cables.
Note:
1. To connect the SAS signal cables, make sure that you first connect the signal
cable, and then the power cable and configuration cable.
2. To disconnect the SAS signal cables, make sure that you first disconnect the
power cable, and then the signal cable and configuration cable.
Figure 54. Configuration cable
Figure 55. Power
®
cable connection
130 Storwize V7000 Unified: Problem Determination Guide 2073-720

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
