b. Grip the handle to pull the power supply out of the enclosure as shown in
Figure 88.
6. Insert the replacement power supply unit into the enclosure with the handle
pointing towards the center of the enclosure. Insert the unit in the same
orientation as the one that you removed.

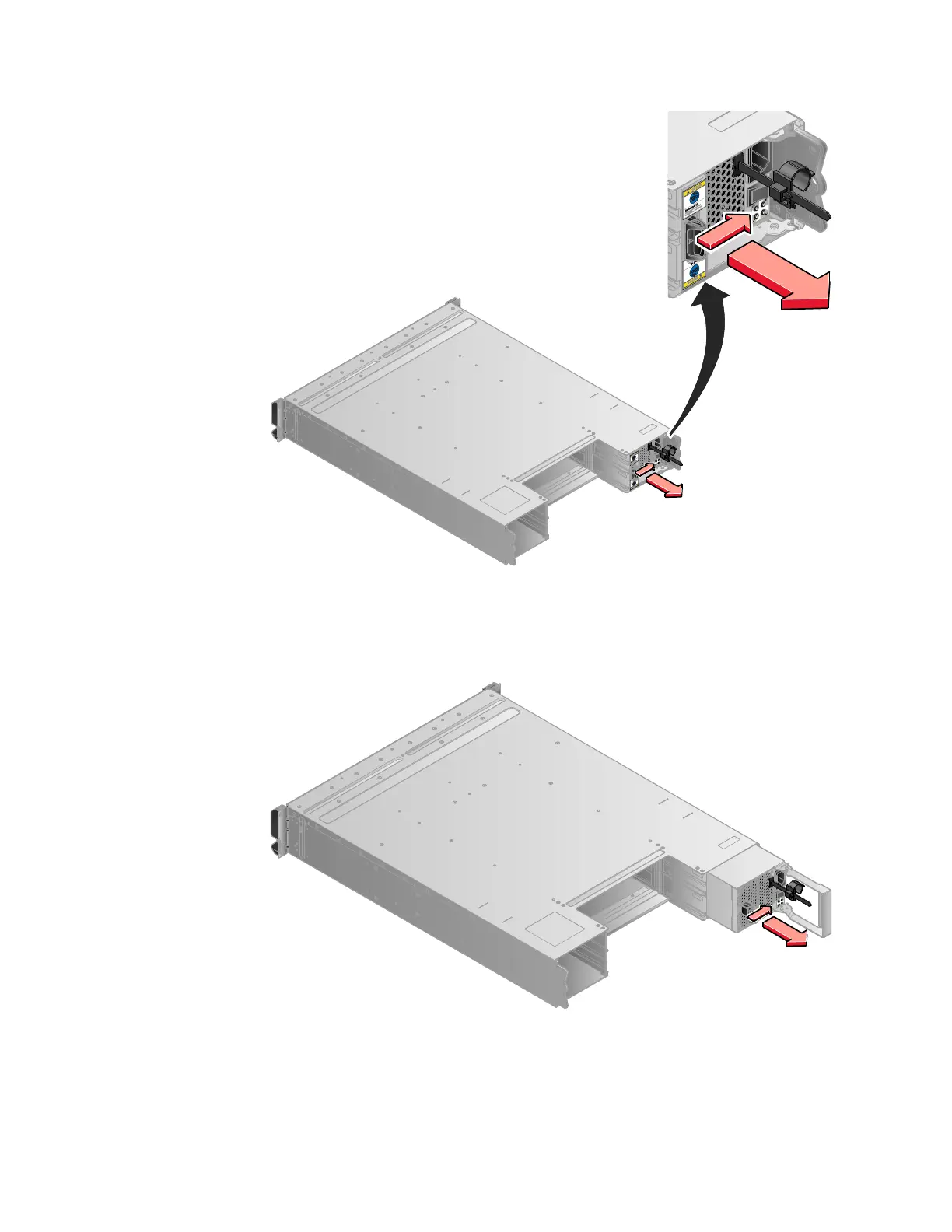

Figure 87. Directions for lifting the handle on the power supply unit
Figure 88. Using the handle to remove a power supply unit
Chapter 5. Control enclosure 309
