2. If you are planning to view the error LEDs that are on the system board and
components, leave the file module connected to power and go directly to step
4.
3. If you are planning to install or remove a microprocessor, memory module,
PCI adapter, battery, or other non-hot-swap optional device, follow the
procedure in “Removing a file module and disconnecting power” on page 92 to
suspend the file module from the cluster and shut it down and disconnect all
power cords and external cables.
4. Press down on the left and right side latches and pull the file module out of
the rack enclosure until both slide rails lock.
Note: You can reach the cables on the back of the file module when the file
module is in the locked position.
5. Push the cover-release latch back ▌1▐, then lift it up ▌2▐.
6. Slide the cover back ▌3▐, then lift the cover off the file module and set it aside.
Attention: For proper cooling and airflow, replace the cover before you turn
on the file module. Operating the file module for extended periods of time
(over 30 minutes) with the cover removed might damage the file module
components.
7. If you are instructed to return the cover, follow all packaging instructions, and
use any packaging materials for shipping that are supplied to you.
Installing the cover
The following procedure is for a Tier 1 customer replaceable unit (CRU).
Replacement of Tier 1 CRUs is your responsibility. If IBM installs a Tier 1 CRU at
your request, you will be charged for the installation. Service agreements can be
purchased so that you can ask IBM to replace these units.
About this task
To install the cover, complete the following steps.

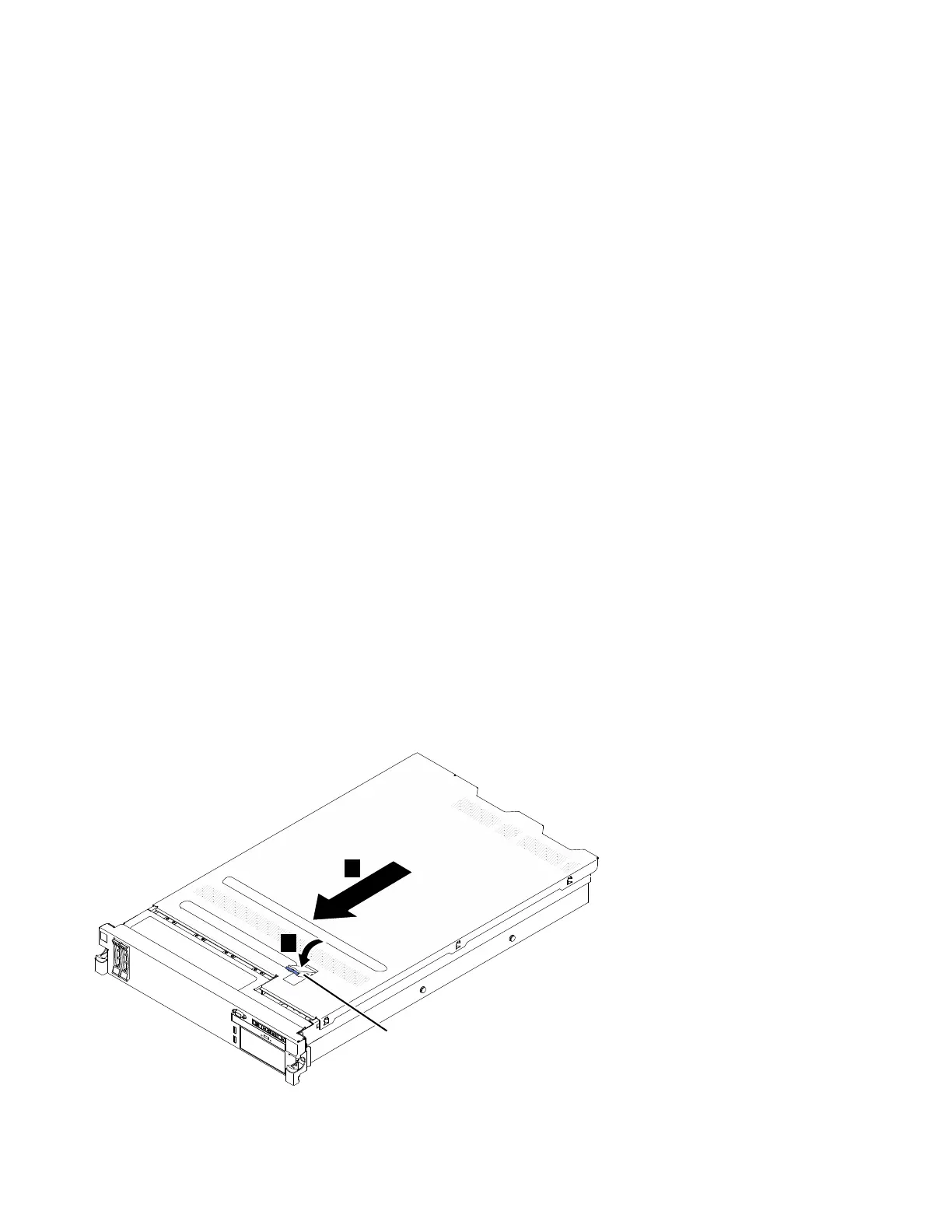

Cover-release
latch
v7000002
1
2
Figure 51. Installing the cover
124 Storwize V7000 Unified: Problem Determination Guide 2073-720
