IBM Storwize V7000 Unified Problem Determination Guide

indicators on a single 2.5 inch drive.
▌1▐ Fault LED
▌2▐ Activity LED
Table 5 shows the status descriptions for the two LEDs.
Table 5. Drive LEDs
Name Description Color
Activity Indicates if the drive is ready or active.
v If the LED is on, the drive is ready to be used.
v If the LED is off, the drive is not ready.
v If the LED is flashing, the drive is ready, and there is activity.
Green
Fault Indicates a fault or identifies a drive.
v If the LED is on, a fault exists on the drive.
v If the LED is off, no known fault exists on the drive.
v If the LED is flashing, the drive is being identified. A fault might
or might not exist.
Amber
1
2
svc00607

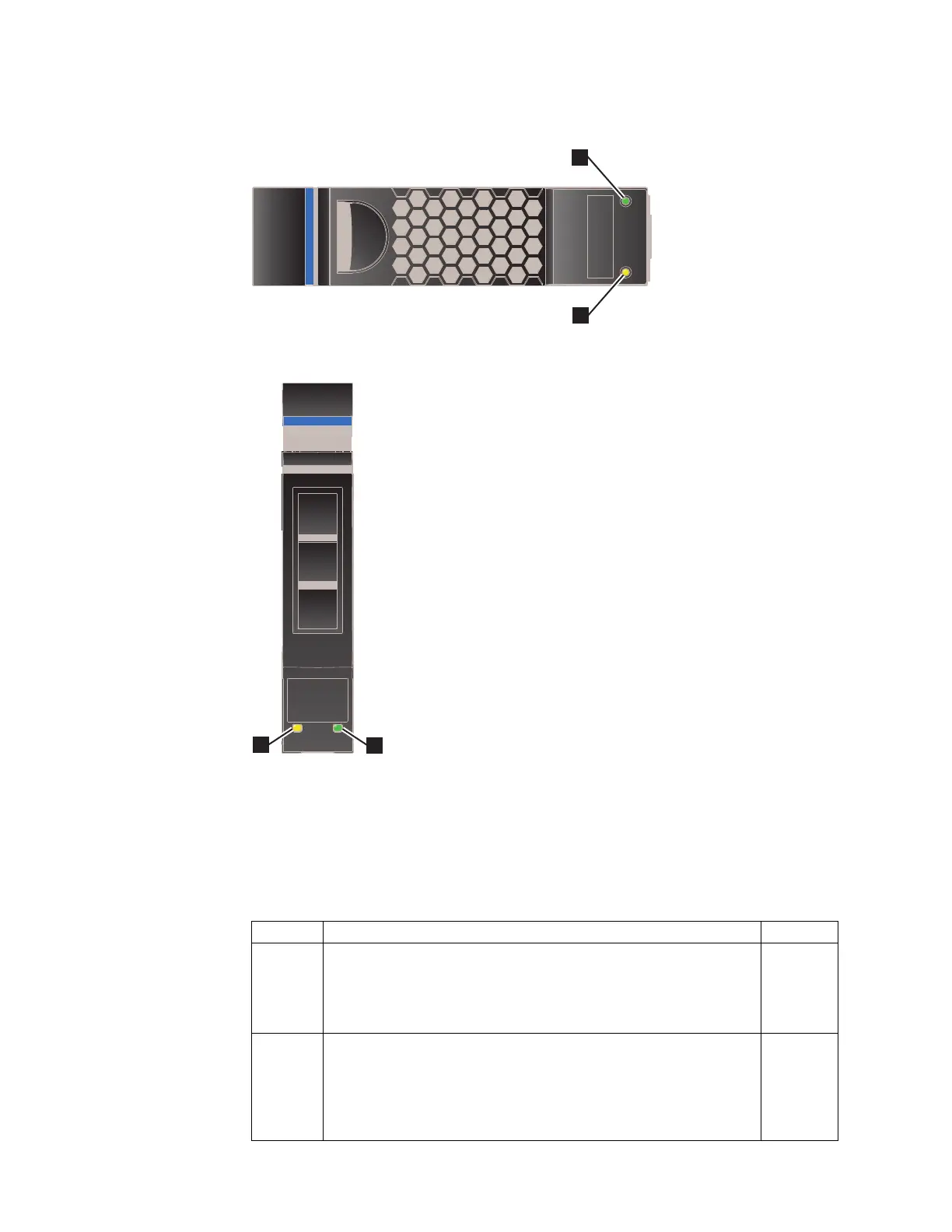

Figure 10. LED indicators on a single 3.5 inch drive
1
2
svc00606
Figure 11. LED indicators on a single 2.5 inch drive
6 Storwize V7000 Unified: Problem Determination Guide 2073-720

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
