IBM Storwize V7000 Unified Problem Determination Guide

Attention: To maintain proper system cooling, do not operate the file module for
more than 10 minutes without a drive that is installed in each bay.
Procedure

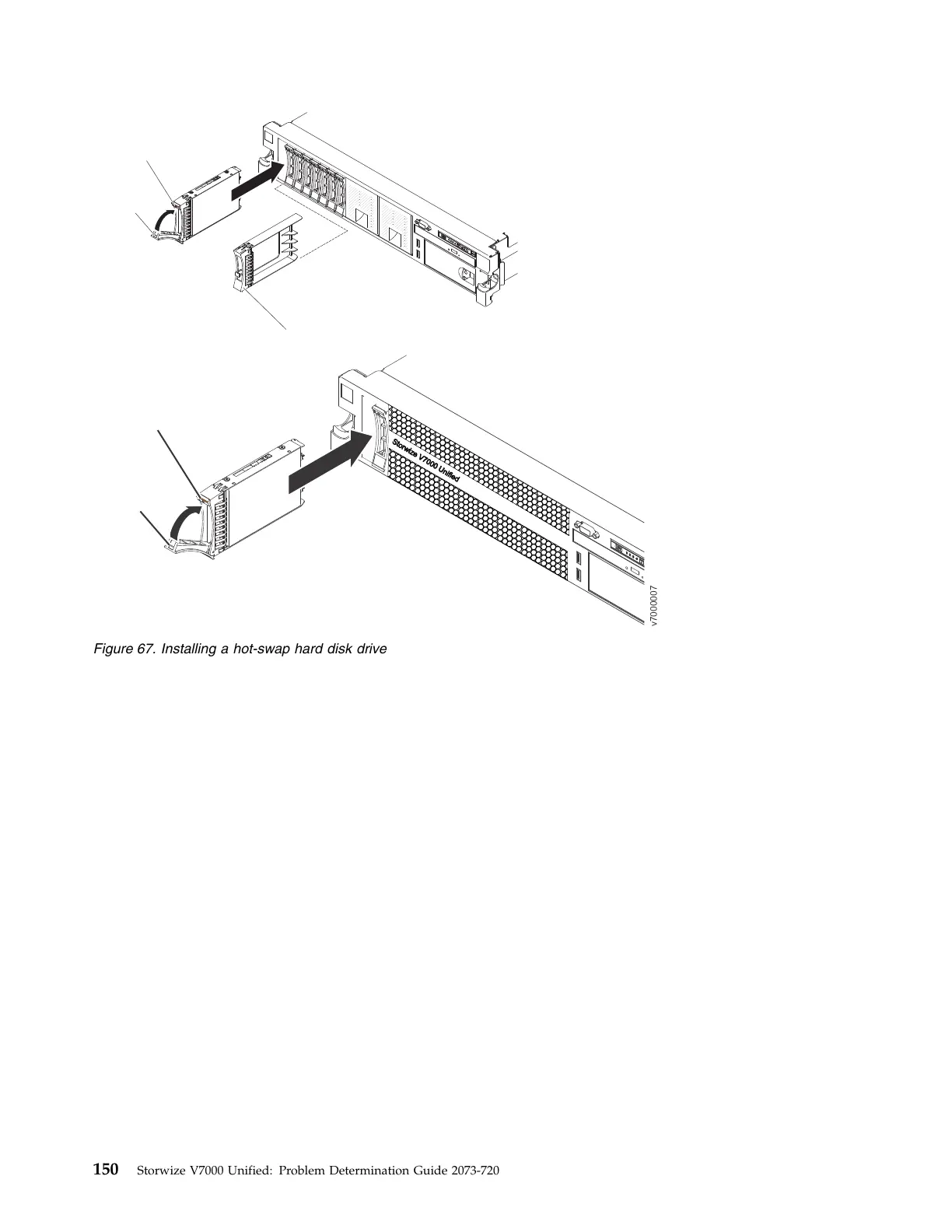

1. Orient the drive as shown in the illustration.
2. Make sure that the tray handle is open.
3. Align the drive assembly with the guide rails in the bay.
4. Gently push the drive assembly into the bay until the drive stops.
5. Push the tray handle to the closed (locked) position.
6. If the system is turned on, check the hard disk drive status LED to verify that
the hard disk drive is operating correctly.
Results
After you replace a failed hard disk drive, the green activity LED flashes as the
disk spins up. The yellow LED turns off after approximately 1 minute. If the new
drive starts to rebuild, the yellow LED flashes slowly, and the green activity LED
remains lit during the rebuild process.
Removing the DVD drive
The following procedure is for a Tier 1 customer replaceable unit (CRU).
Replacement of Tier 1 CRUs is your responsibility. If IBM installs a Tier 1 CRU at
your request, you will be charged for the installation. Service agreements can be
purchased so that you can ask IBM to replace these units.
Latch
Handle
Filler panel handle
Latch
Handle
