4. Pull out the drive.
5. Push the new drive back into the slot until the handle starts to move.
6. Finish inserting the drive by closing the handle until the locking catch clicks
into place.
Replacing enclosure end caps
Remove and replace enclosure end caps.
Replacing Storwize V7000 Gen2 enclosure end caps
You can remove and replace enclosure end caps.
About this task
Attention: The left end cap is printed with information that helps identify the
enclosure.
v Machine type and model
v Enclosure serial number
The information on the end cap should always match the information that is
printed on the rear of the enclosure, and it should also match the information that
is stored on the enclosure midplane.
Procedure
To remove and replace either the left or right end cap, complete the following
steps.
1. If the enclosure is on a table or other flat surface, elevate the enclosure front
slightly or carefully extend the front over the table edge.
2. Grasp the end cap by the blue touch point and pull it until the bottom edge of
the end cap is clear of the bottom tab on the chassis flange.
svc00615

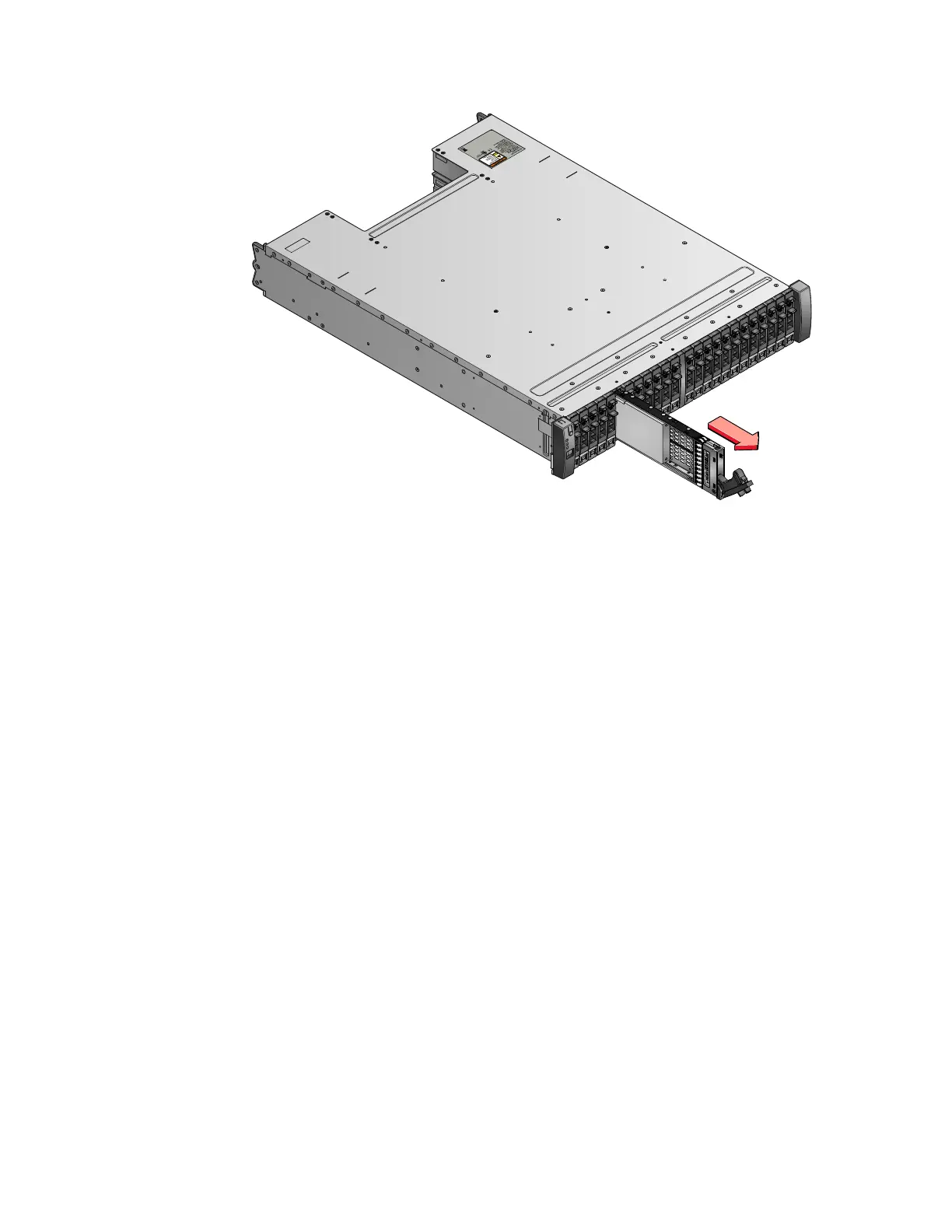

Figure 101. Removing the 2.5 inch drive
328 Storwize V7000 Unified: Problem Determination Guide 2073-720

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
