12. Repeat steps 9 on page 366 to Figure 114 on the right support rail.
13. Install the new support rails at the rack position that is recorded at step 8 on
page 366 by following the instructions in Step 6. Installing the support rails
for the enclosures.
14. Reinstall the enclosure (removed at step 7 on page 366) and the end caps
(removed at step 5 on page 366) by following the instructions in Step 7.
Installing the enclosures.
15. If components were removed from the enclosure at step 7 on page 366, return
each canister, drive assembly, and power supply unit to its labeled slot.
16. Reconnect the cables, ensuring that they are connected to their original ports.
17. Reconnect the power supply cables to their original power supply and
electrical outlet.
The system starts.
18. After the system is online, use the management GUI to verify that the system
is correct.
Replacing the Storwize V7000 Gen1 support rails
You can replace the support rails.
v3500116_a

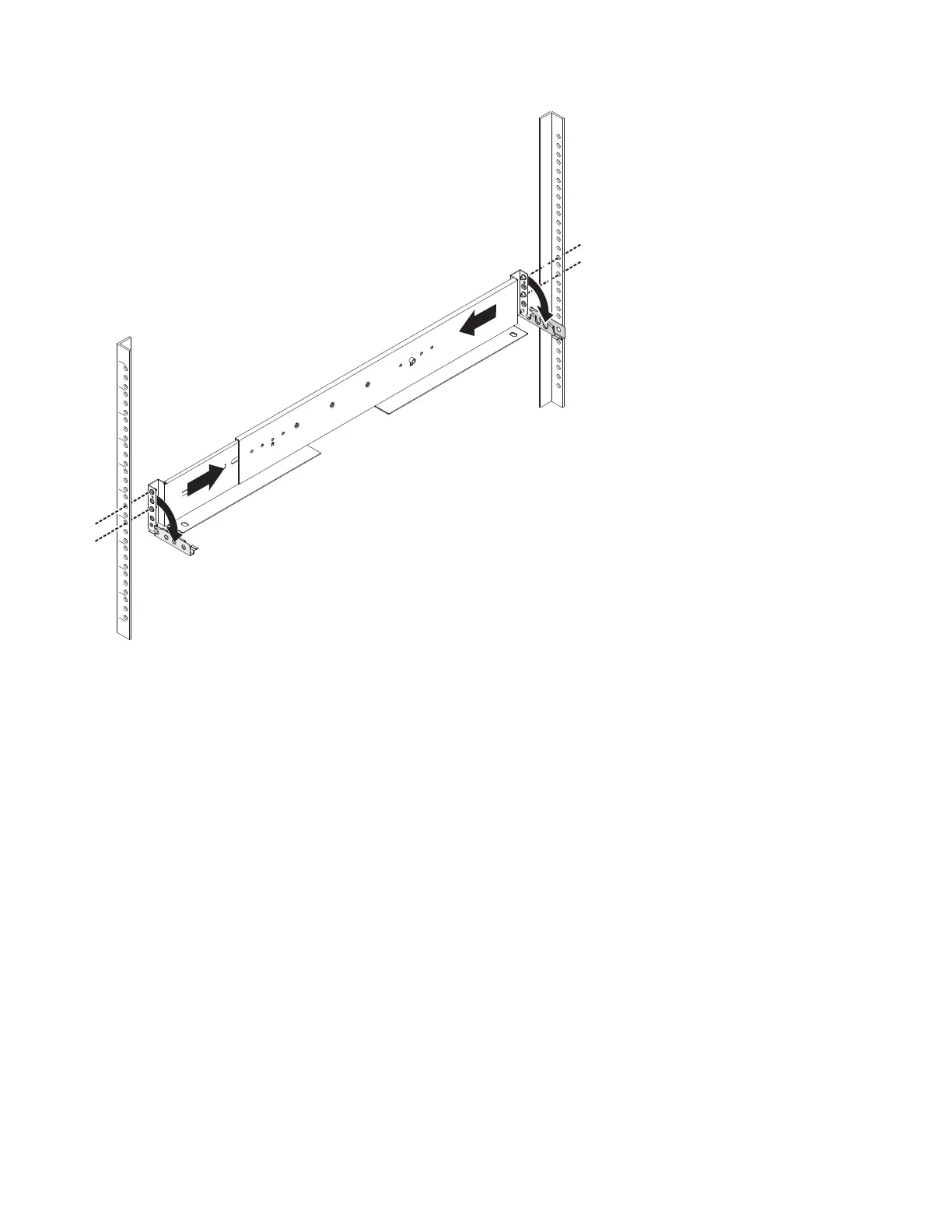

Figure 114. Compressing rail for removal from rack
368 Storwize V7000 Unified: Problem Determination Guide 2073-720

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
