IBM Storwize V7000 Unified Problem Determination Guide

▌2▐ Power supply units
Storwize V7000 Gen1 Power supply unit and battery for the
control enclosure
The Storwize V7000 Gen1 control enclosure contains two power supply units, each
with an integrated battery.
The two power supply units in the enclosure are installed with one unit top side
up and the other inverted. The power supply unit for the control enclosure has six
LEDs.
Each power supply unit has a power switch. The switch must be on for the power
supply unit to be operational. If the power switches are turned off, or the main
power is removed, the integrated batteries temporarily continue to supply power
to the node canisters. As a result, the canisters can store configuration data and
cached data to their internal drives. Battery power is required only if both power
supply units stop operating.

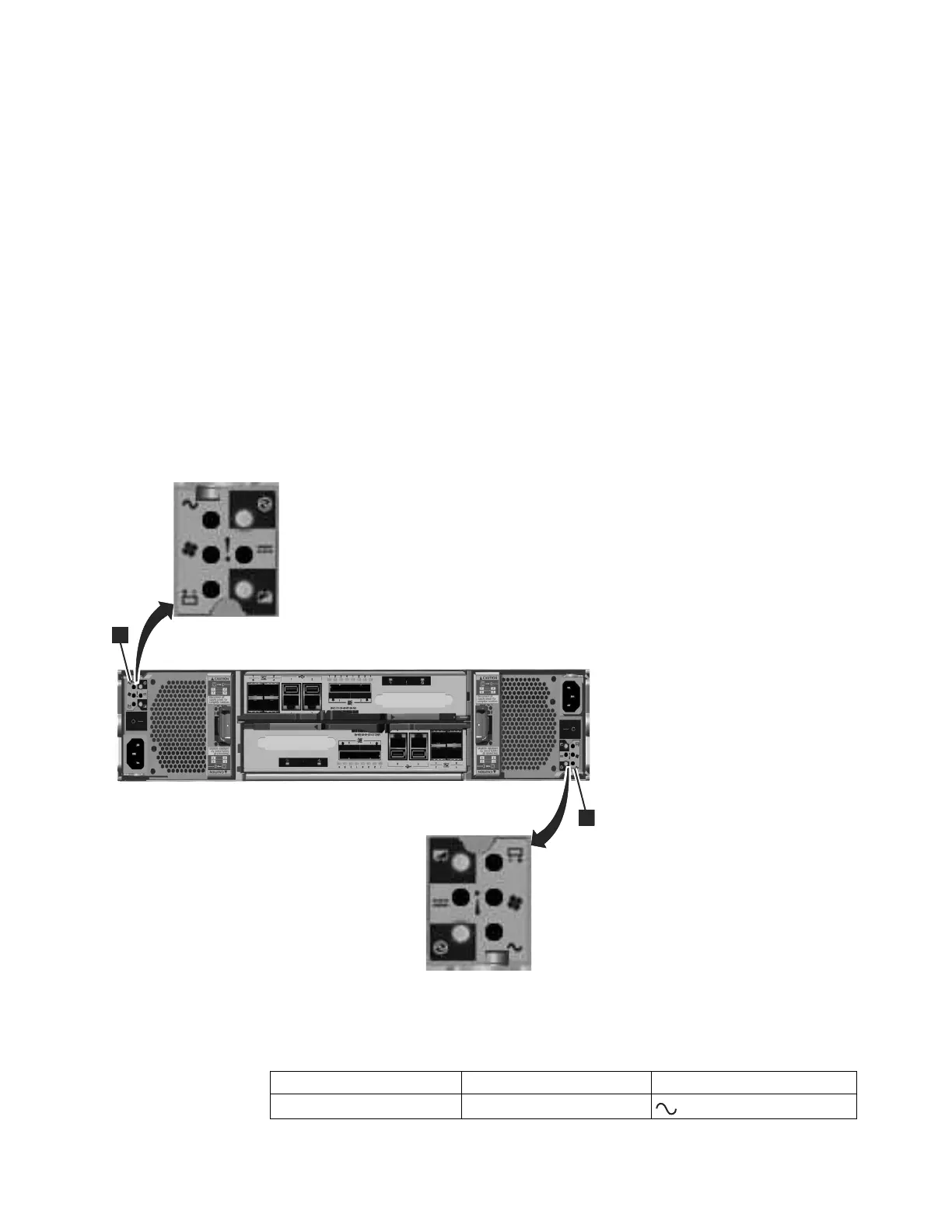

Figure 18 shows the location of the LEDs ▌1▐ in the rear of the power supply unit.
Table 9 identifies the LEDs in the rear of the control enclosure.
Table 9. Power supply unit LEDs in the rear of the control enclosure
Name Color Symbol
ac power failure Amber
svc00670
1
1
Figure 18. LEDs on the power supply units of the control enclosure
Chapter 1. Storwize V7000 Unified hardware components 11

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
