IBM Storwize V7000 Unified Problem Determination Guide

SAS signal cables
Port 0-3
Port 4-7
Port 0-3
Port 4-7
Removing the battery
The following procedure is for a Tier 1 customer replaceable unit (CRU).
Replacement of Tier 1 CRUs is your responsibility. If IBM installs a Tier 1 CRU at
your request, you will be charged for the installation. Service agreements can be
purchased so that you can ask IBM to replace these units.
About this task
Note: Before running a procedure, refer to “Removing a file module to perform a
maintenance action” on page 91.
The following notes describe information that you must consider when replacing
the battery:
v IBM has designed this product with your safety in mind. The lithium battery
must be handled correctly to avoid possible danger. If you replace the battery,
you must adhere to the following instructions.
Note: In the U. S., call 1-800-IBM-4333 for information about battery disposal.
v If you replace the original lithium battery with a heavy-metal battery or a
battery with heavy-metal components, be aware of the following environmental
consideration. Batteries and accumulators that contain heavy metals must not be

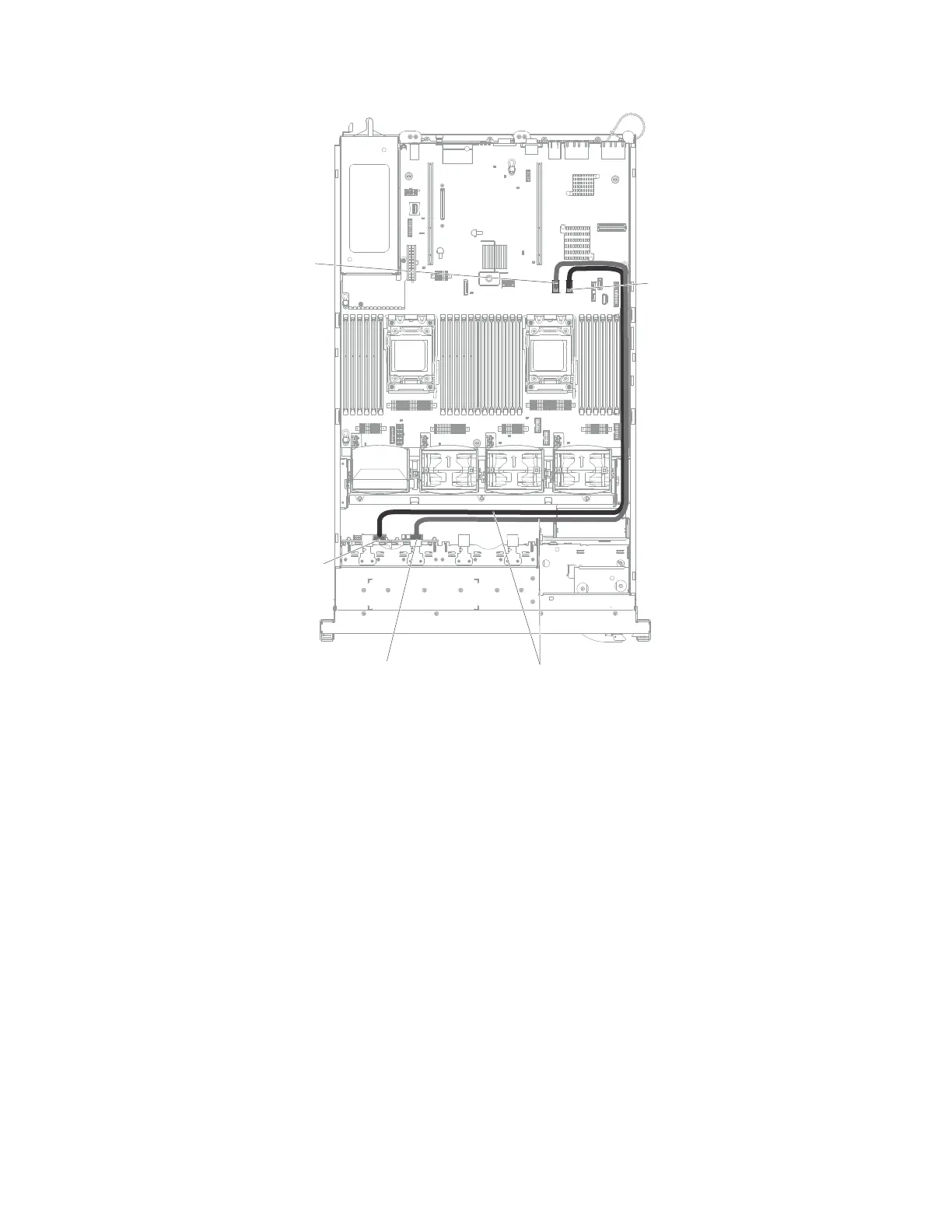

Figure 56. Hard disk drive cable connection
Chapter 4. File module 131

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
