IBM Storwize V7000 Unified Problem Determination Guide

Table 21 provides a description of the two LEDs.
Table 21. 1 Gbps Ethernet port LEDs
Name Description Color
Link speed (LED on right of
upper canister)
The LED is on when there is a link
connection; otherwise, the LED is off.
Green
Activity (LED on left of
upper canister)
The LED is flashing when there is activity on
the link; otherwise, the LED is off.
Yellow

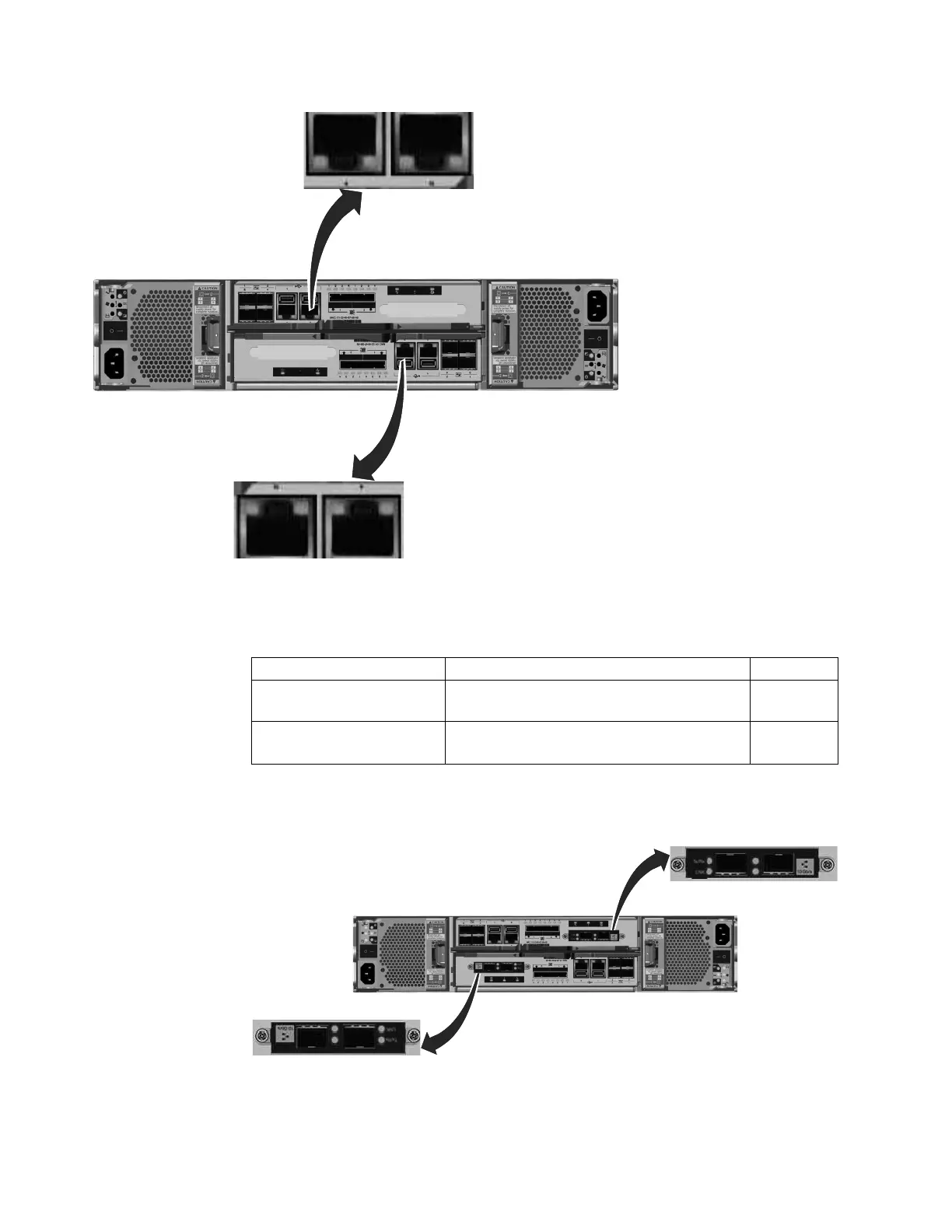

Figure 32 shows the location of the 10 Gbps Ethernet ports.
Table 22 on page 29 provides a description of the LEDs.
svc00691
Figure 31. Ethernet ports on the 2076-112 and 2076-124 node canisters
svc00727
Figure 32. 10 Gbps Ethernet ports on the 2076-312 and 2076-324 node canisters
28 Storwize V7000 Unified: Problem Determination Guide 2073-720

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
