IBM Storwize V7000 Unified Problem Determination Guide

▌1▐ Ethernet ports. The technician port is labeled T. It is used for
troubleshooting or servicing the system.
▌2▐ Serial-attached SCSI (SAS) ports.
▌3▐ USB ports. Each canister has two USB ports.
The USB ports have no indicators.
Storwize V7000 2076-524 host interface adapter ports and
indicators
An 8 Gbps or 10 Gbps host interface adapter can be installed in each node canister.
Storwize V7000 2076-524 Fibre Channel host interface adapter ports and
indicators:
If you specified Fibre Channel host interface adapters for your Storwize V7000
2076-524 system, an adapter is preinstalled in each node canister.
Each 8 Gbps Fibre Channel 4-port host interface adapter (feature code ACHK) can
have from two to four short wave (SW) small form-factor pluggable (SFP)
transceivers installed. Cap unused ports with safety caps.
Fibre Channel host interface adapter ports
Fibre Channel ports ▌1▐ are in 1 - 4 order, starting at the top. Ports and their
indicators are shown in Figure 24 on page 22.
Each port can have up to an 8 Gbps SW SFP transceiver installed. Each transceiver
connects to a host or Fibre Channel switch with an LC-to-LC Fibre Channel cable.
3
1 2

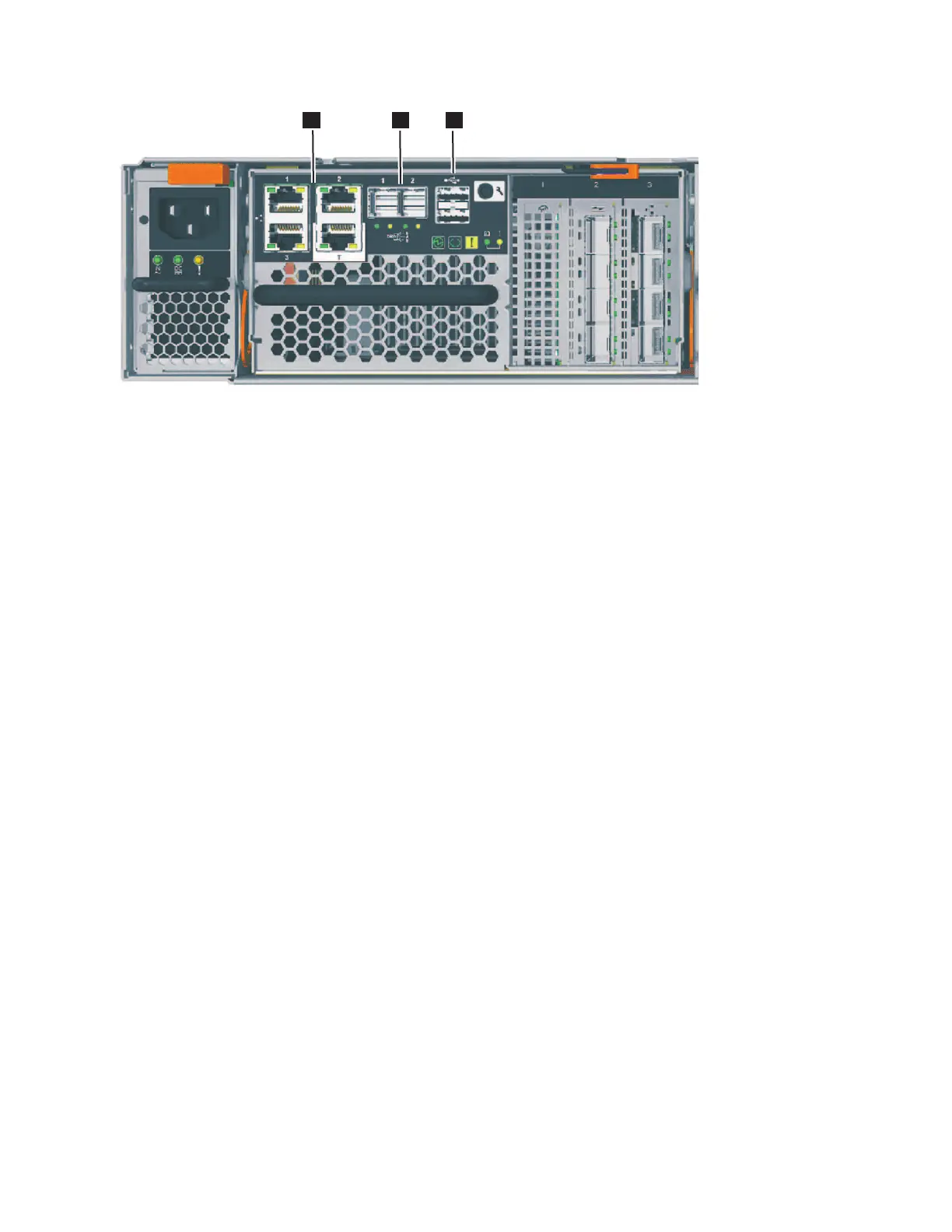

Figure 23. USB ports on the Storwize V7000 Gen2 node canister
Chapter 1. Storwize V7000 Unified hardware components 21

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
