15. Gently push the drive assembly into the bay until the drive stops.
16. Rotate its handle to the closed (locked) position.
Results
If the replaced drive was a failed drive, the system automatically reconfigures the
replacement drive as a spare and the replaced drive is removed from the
configuration. The process can take a few minutes.
Replacing a 3.5-inch drive assembly or blank carrier
This topic describes how to replace a 3.5-inch drive assembly or blank carrier.

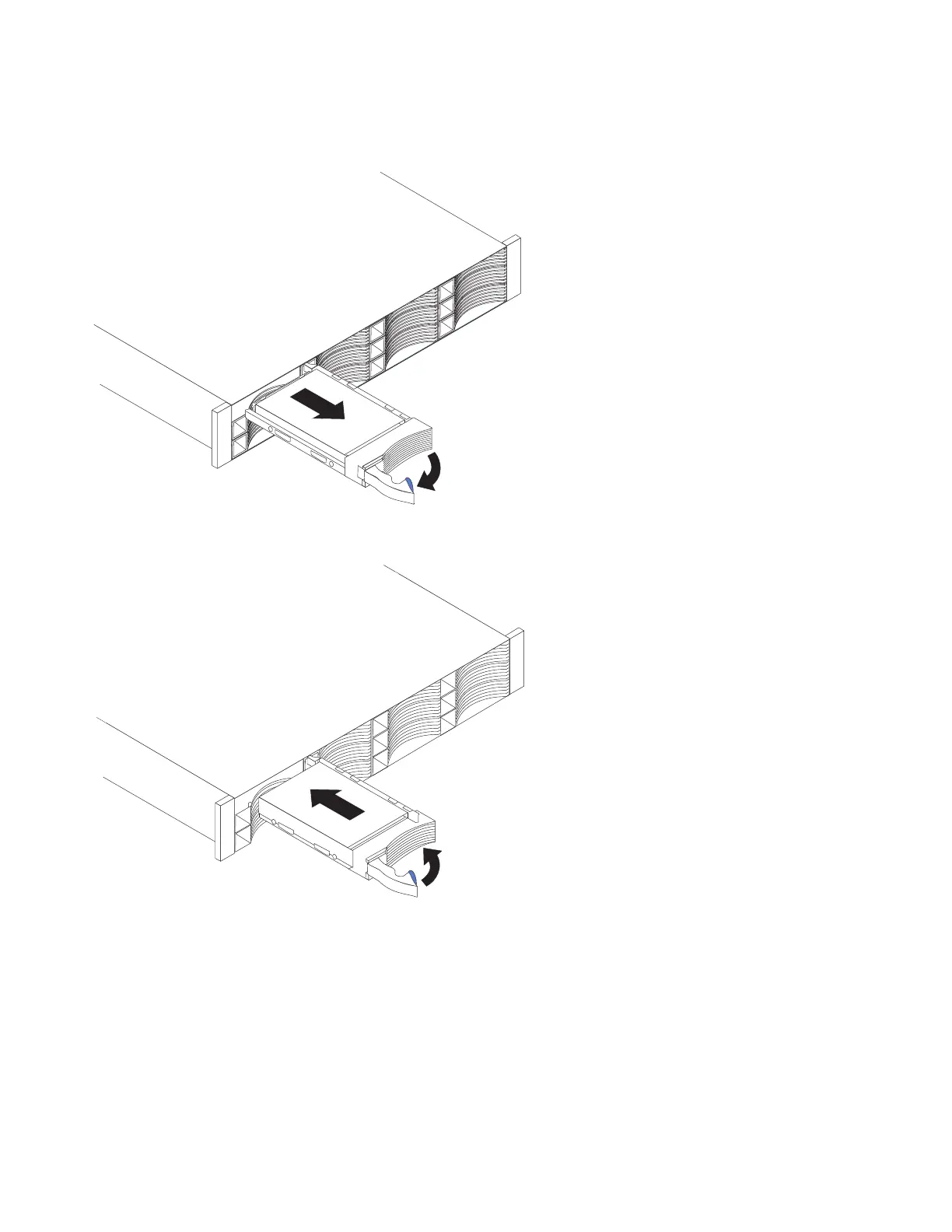

Figure 94. Unlocking and removing a 3.5-inch drive from its slot
Figure 95. Installing and locking a 3.5-inch drive into its slot
322 Storwize V7000 Unified: Problem Determination Guide 2073-720
