IBM Storwize V7000 Unified Problem Determination Guide

Storwize V7000 Gen2
Figure 8 shows a large form factor 3.5 in. (8.89 cm) drive with the latching
mechanism open.
Figure 9 shows a small form factor 2.5 in. (6.35 cm) drive with the latching
mechanism open.
Drive indicators for control enclosures
Storwize V7000 Unified enclosures use different drive indicators, depending on the
generation of your control enclosure model. Drives have two light-emitting diode
(LED) indicators each; they have no controls or connectors.
Storwize V7000 Gen1
The LED color is the same for both drives. The LEDs for the 3.5-inch drives are
placed vertically above and below each other. Figure 10 on page 6 displays the
LED indicators on a single 3.5 inch drive. The LEDs for the 2.5-inch drives are
placed next to each other at the bottom. Figure 11 on page 6 displays the LED
svc00608

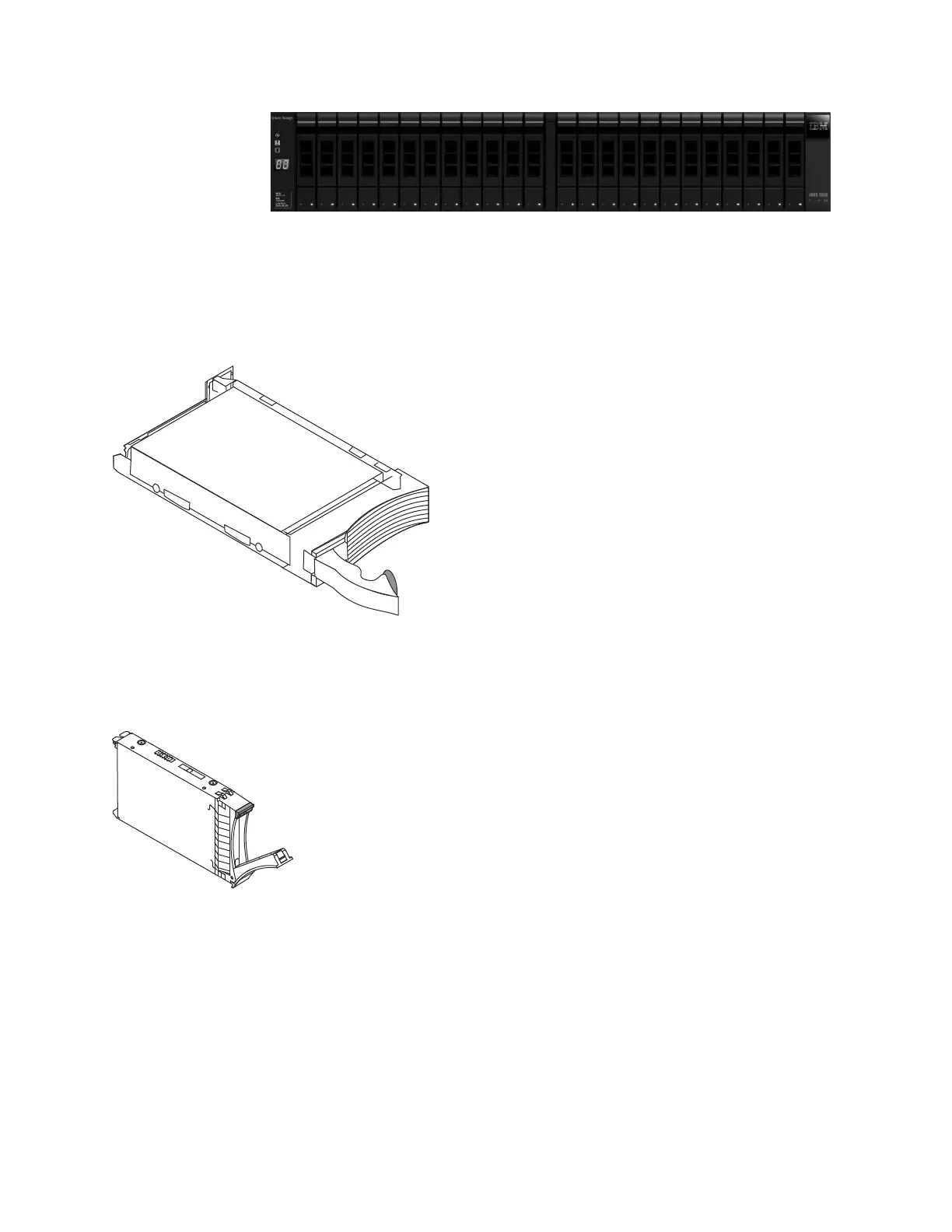

Figure 7. Storwize V7000 Gen1 Drives on a 24-drive enclosure
v3500128
Figure 8. Storwize V7000 Gen2 Large form factor horizontal drive
v3500129
Figure 9. Storwize V7000 Gen2 Small form factor vertical drive
Chapter 1. Storwize V7000 Unified hardware components 5

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
