IBM Storwize V7000 Unified Problem Determination Guide

6. Remove the drive retention clip from the drive.
7. If you are instructed to return the DVD drive, follow all packaging instructions,
and use any packaging materials for shipping that are supplied to you.
Installing the DVD drive
The following procedure is for a Tier 1 customer replaceable unit (CRU).
Replacement of Tier 1 CRUs is your responsibility. If IBM installs a Tier 1 CRU at
your request, you will be charged for the installation. Service agreements can be
purchased so that you can ask IBM to replace these units.
About this task
To install the replacement DVD drive, complete the following steps.

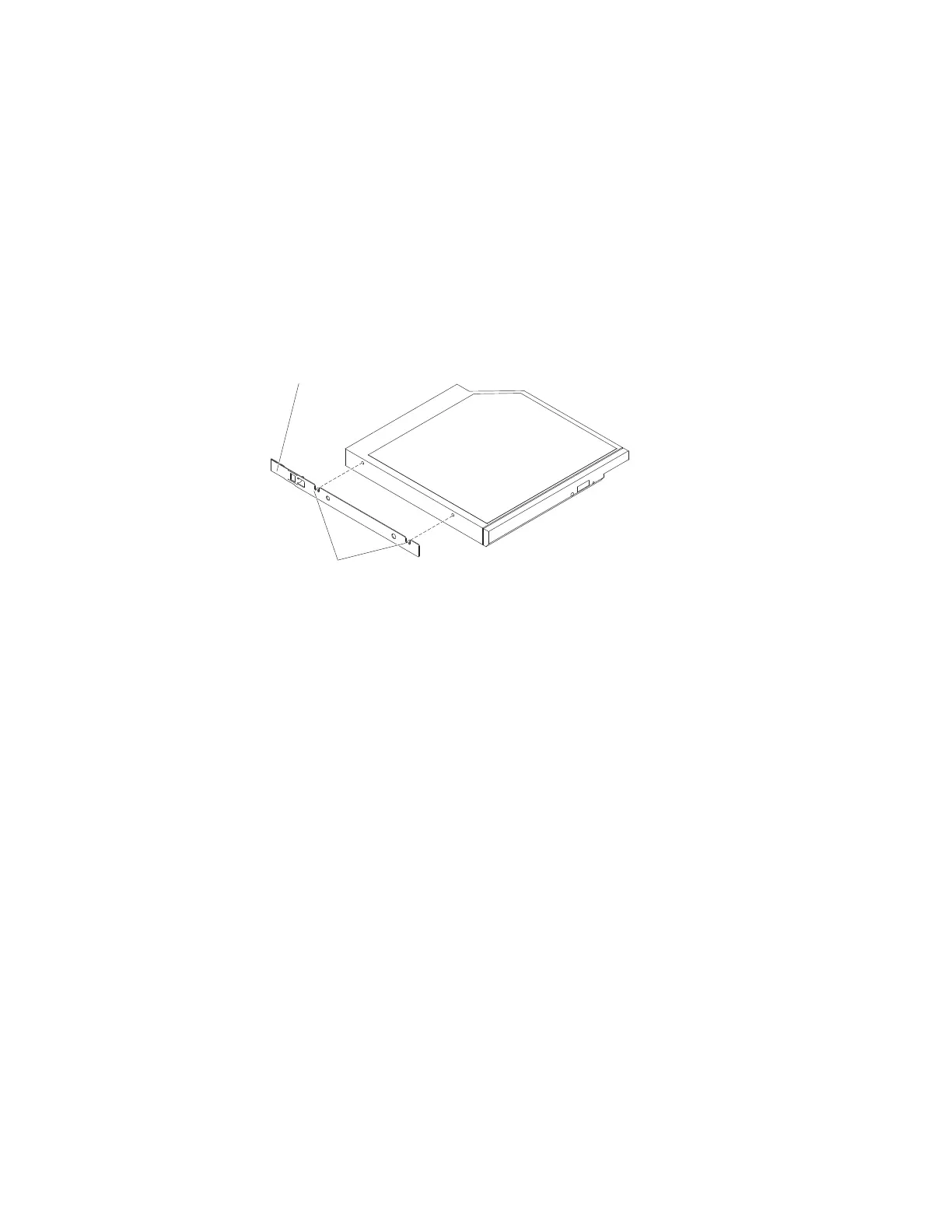

Alignment pins
Drive retention clip
1. Attach the drive-retention clip to the side of the drive.
2. Slide the drive into the CD/DVD drive bay until the drive clicks into place.
3. Install the cover (see “Installing the cover” on page 124).
4. Slide the file module into the rack.
5. Follow the steps at the end of the procedure “Removing a file module and
disconnecting power” on page 92 to reconnect the file module and resume its
use in the cluster.
Removing a memory module
The following procedure is for a Tier 1 customer replaceable unit (CRU).
Replacement of Tier 1 CRUs is your responsibility. If IBM installs a Tier 1 CRU at
your request, you will be charged for the installation. Service agreements can be
purchased so that you can ask IBM to replace these units.
152 Storwize V7000 Unified: Problem Determination Guide 2073-720
