IBM Storwize V7000 Unified Problem Determination Guide

Retainerbracket
Heatsink
releaselever
Locktab
Microprocessor
Heatsink

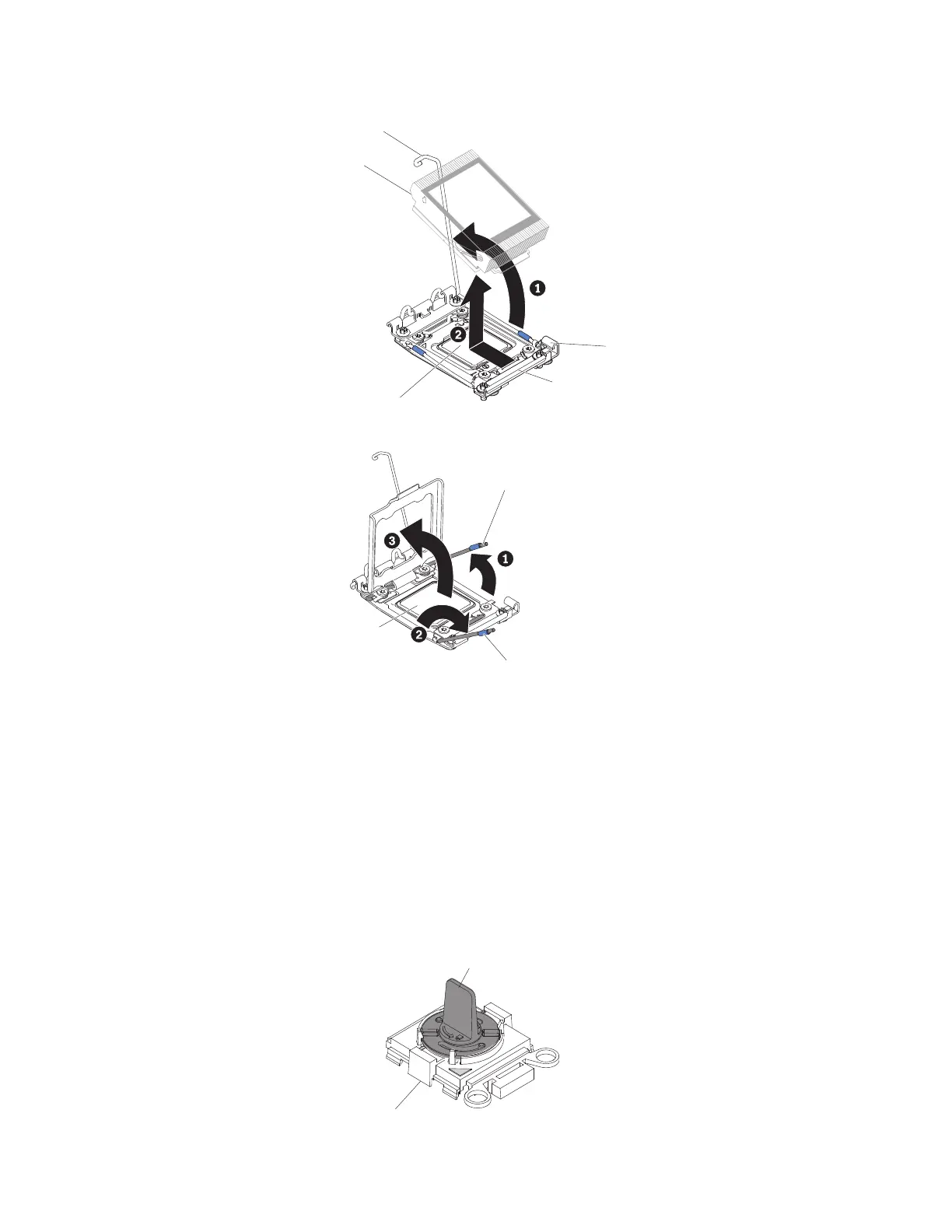

8. Open the microprocessor socket release levers and retainer:
Microprocessor
Microprocessor
releasele
ver
Microprocessor
releasele
ver
a. Identify which release lever is labeled as the first release lever to open and
open it.
b. Open the second release lever on the microprocessor socket.
c. Open the microprocessor retainer.
Attention: Do not touch the connectors on the microprocessor and the
microprocessor socket.
9. Install the microprocessor on the microprocessor installation tool.
Note: If you are replacing a microprocessor, use the empty installation tool
that comes with the CRU to remove the microprocessor.
a. Twist the handle on the microprocessor tool counterclockwise so that it is
in the open position.
Handle
Installation tool
168 Storwize V7000 Unified: Problem Determination Guide 2073-720

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
