IBM Storwize V7000 Unified Problem Determination Guide

Installation tool
Microprocessor
Cover
Note: Do not touch the microprocessor contacts. Contaminants on the
microprocessor contacts, such as oil from your skin, can cause connection
failures between the contacts and the socket.

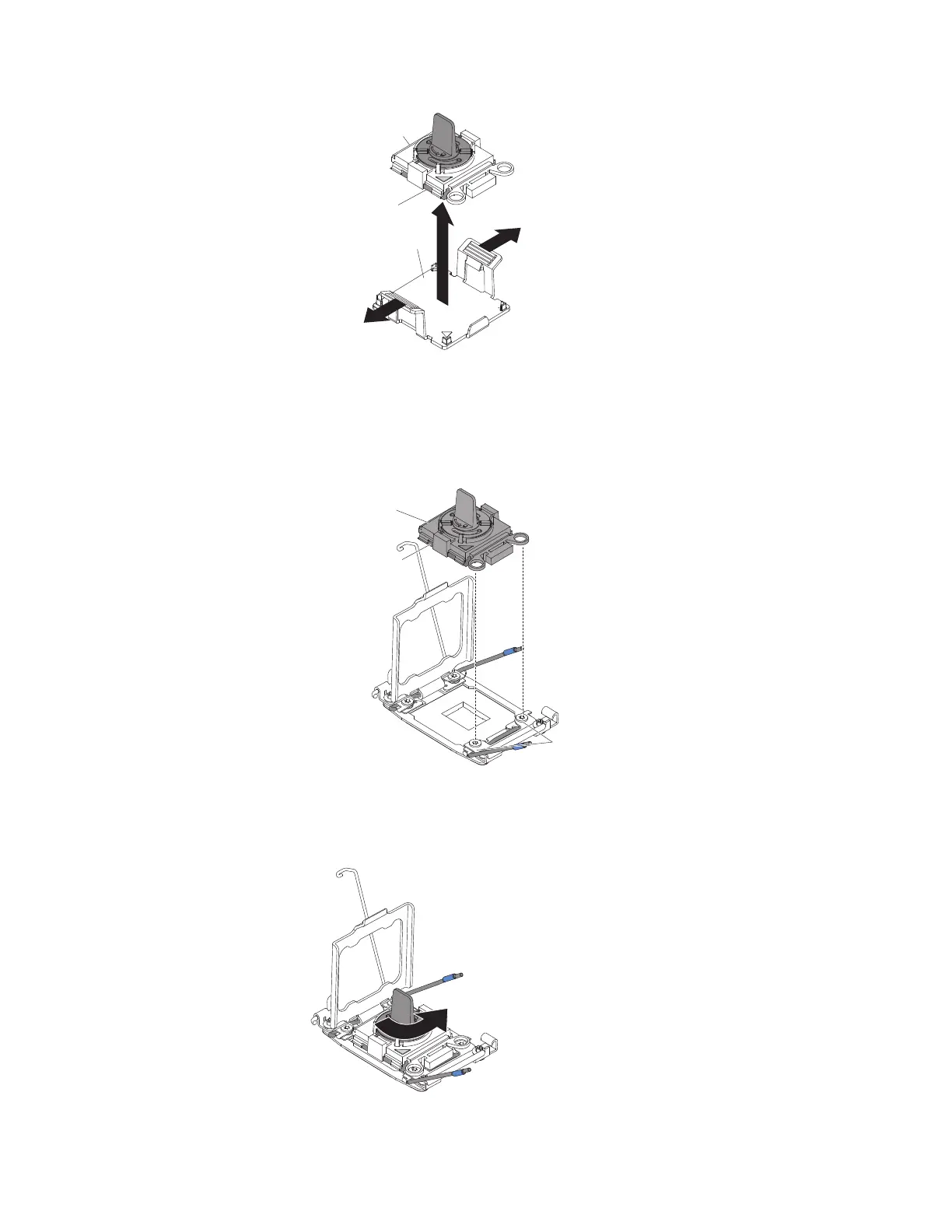

c. Align the installation tool with the microprocessor socket. The installation
tool rests flush on the socket only if properly aligned.
Installation tool
Microprocessor
Alignment
pins
d. Twist the handle on the microprocessor tool counterclockwise to insert the
microprocessor into the socket. The microprocessor is keyed to ensure that
the microprocessor is installed correctly. The microprocessor rests flush on
the socket only if properly installed.
172 Storwize V7000 Unified: Problem Determination Guide 2073-720
