Rev. 1
Card Gr1-
8

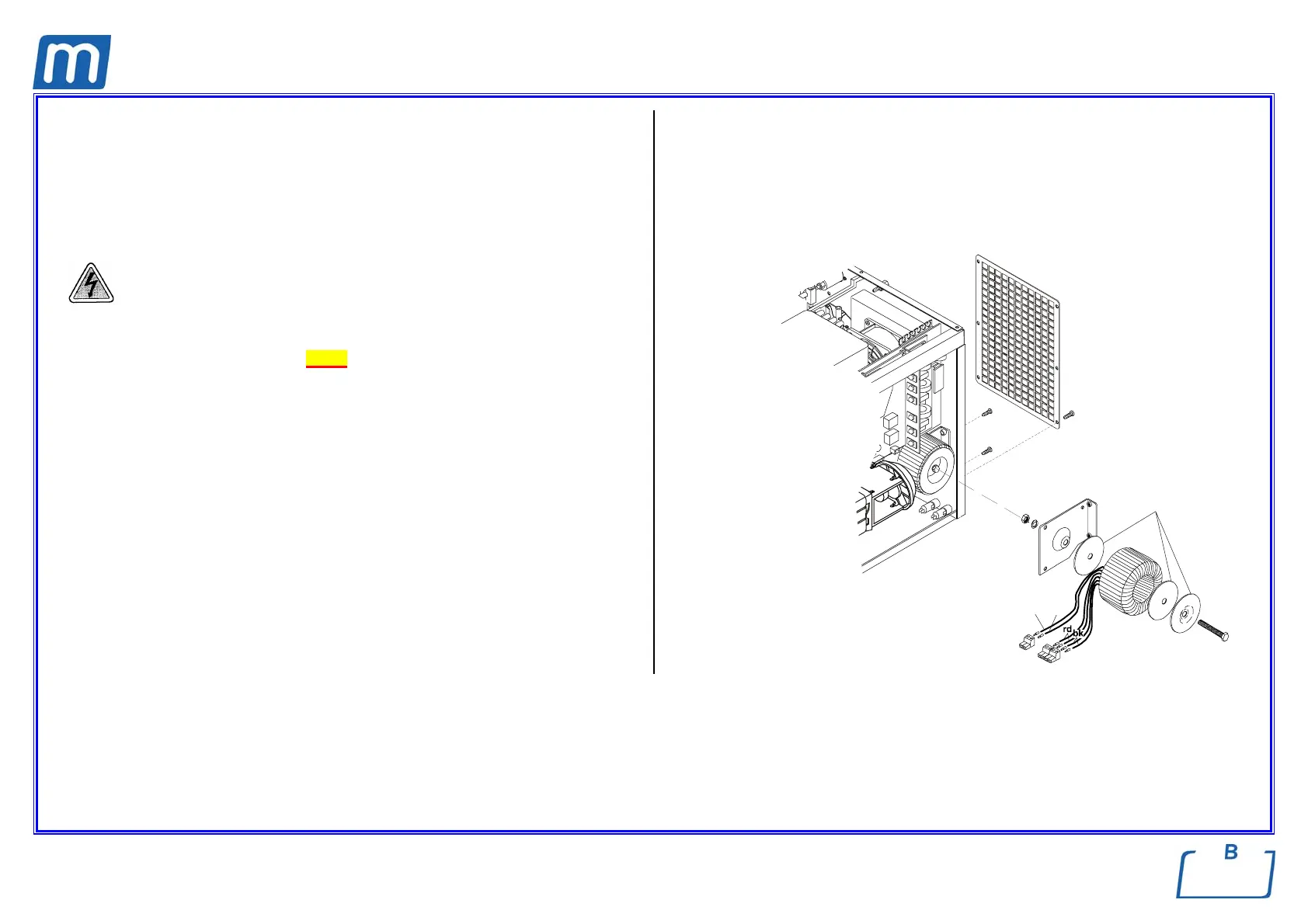

TRANSFORMER ASSEMBLY
A#0BP3060000
TRANSFORMER
412#00040000
Before servicing, switch off the equipment and unplug the power
supply cable from the mains socket
1. Remove the covers (see card Gr7-1);
2. Remove the transformer wiring from the boards;
3. Remove the grid (1) from the rear frame to access the mounting screws of
the transformer bracket;
4. Remove the bracket with the transformer, and unscrew the fixing screw (3)
maintaining the rear nut (2) blocked;
5. Remove transformer and disks (4);
6. Arrange the disks on the new transformer;
7. Mount the transformer, restore connections and assembly all items
proceeding in reverse order as above;
8. Run a sterilization cycle.
1
br
bl
2
3
4
