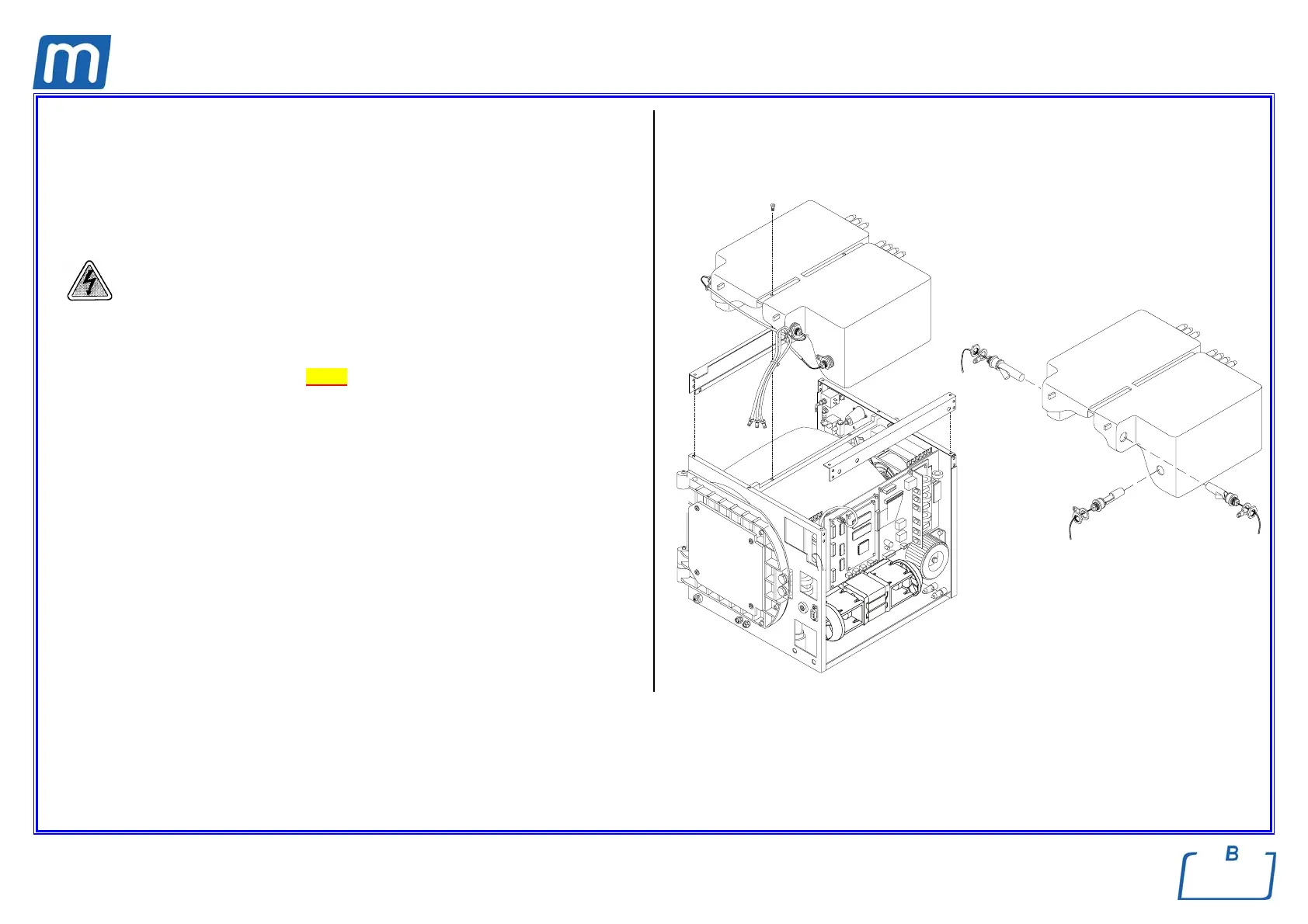

WATER TANK ASSEMBLY
A#0BP2900000
WATER TANK
C#3BP1700000
Before servicing, switch off the equipment and unplug the power
supply cable from the mains socket
1. Remove the covers (see card Gr7-1 );
2. Empty both reservoirs;
3. Remove the wiring from the water level probes and the rear pipes from the
reservoirs;
4. Remove the right (1) and left (2) rail;
5. Remove screws (3) fixing the reservoir;
6. Lift the reservoir (4) and remove the bottom pipes;
7. Mount the new reservoir, assembly all items and restore connections
proceeding in reverse order as above;
8. Run a sterilization cycle.
