STEAM GENERATOR THERMOSTAT
430#00150000
Before servicing, switch off the equipment and unplug the power
supply cable from the mains socket

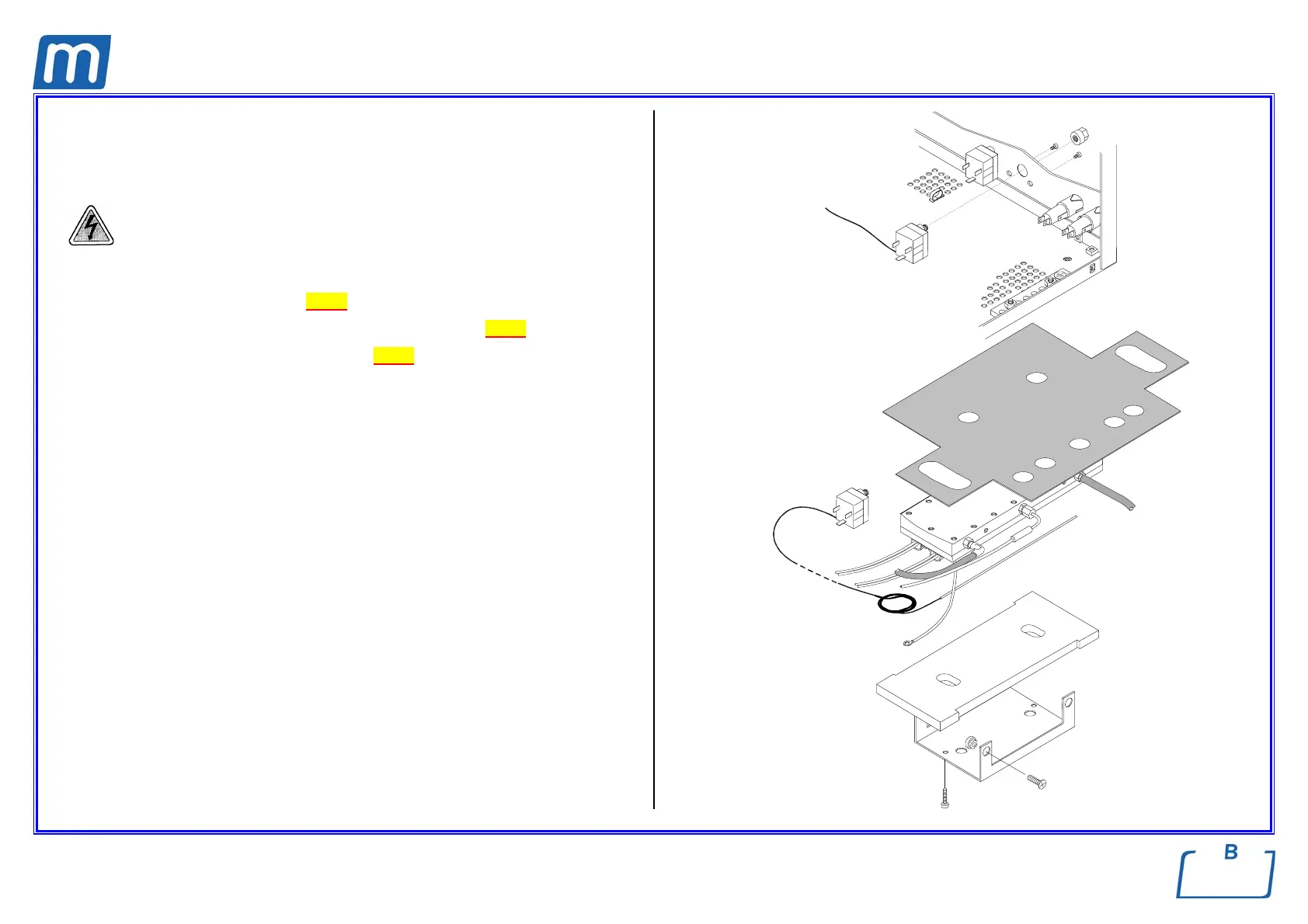

1. Remove the covers (see card Gr7-1 );
2. Remove the water pump from the base frame (see card Gr3-1);
3. Remove the steam generator (see card Gr4-6);
4. Unscrew the cap (1) and the screws from the rear frame;
5. Remove the support (2) and thermal insulation layer (3) of the steam
generator to access the probe’s bulb;
6. Loosen screws and withdraw the bulb (4) with the thermostat;
7. Mount the new thermostat, restore connections and assembly all items
proceeding in reverse order as above;
8. Run a sterilization cycle.
1
2
3
4
