Rev. 1
Card Gr1-
19

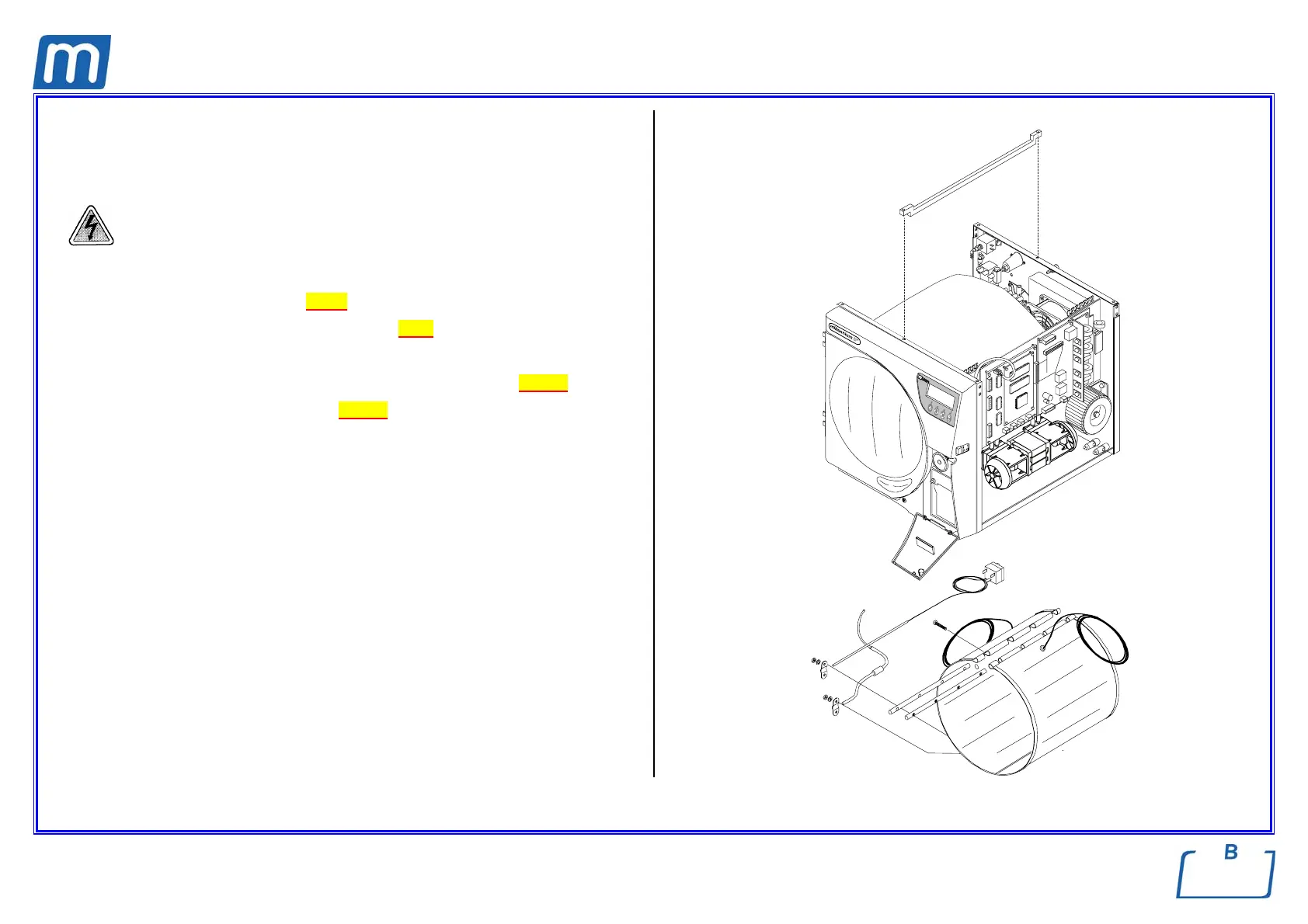

BAND CHAMBER HEATER
410#00140000
Before servicing, switch off the equipment and unplug the power
supply cable from the mains socket
1. Remove the covers (see card Gr7-1);
2. Remove the reservoir assembly – see card G4-1;
3. Unscrew the central rail (1);
4. Remove the thermostat probe (2) from the heater – see card Gr1-13;
5. Remove PT3 probe (3) – see card Gr1-10;
6. Remove the insulation layer covering the chamber heater;
7. Disconnect the heater wiring from the power board;
8. Remove the screws (4) fixing the heater (5) and withdraw it carefully out the
chamber surface;
9. Mount the new chamber heater, restore connections and assembly all items
proceeding in reverse order as above;
10. Run a sterilization cycle.
1
2
3
4
5
