Rev. 1
Card Gr1-
15

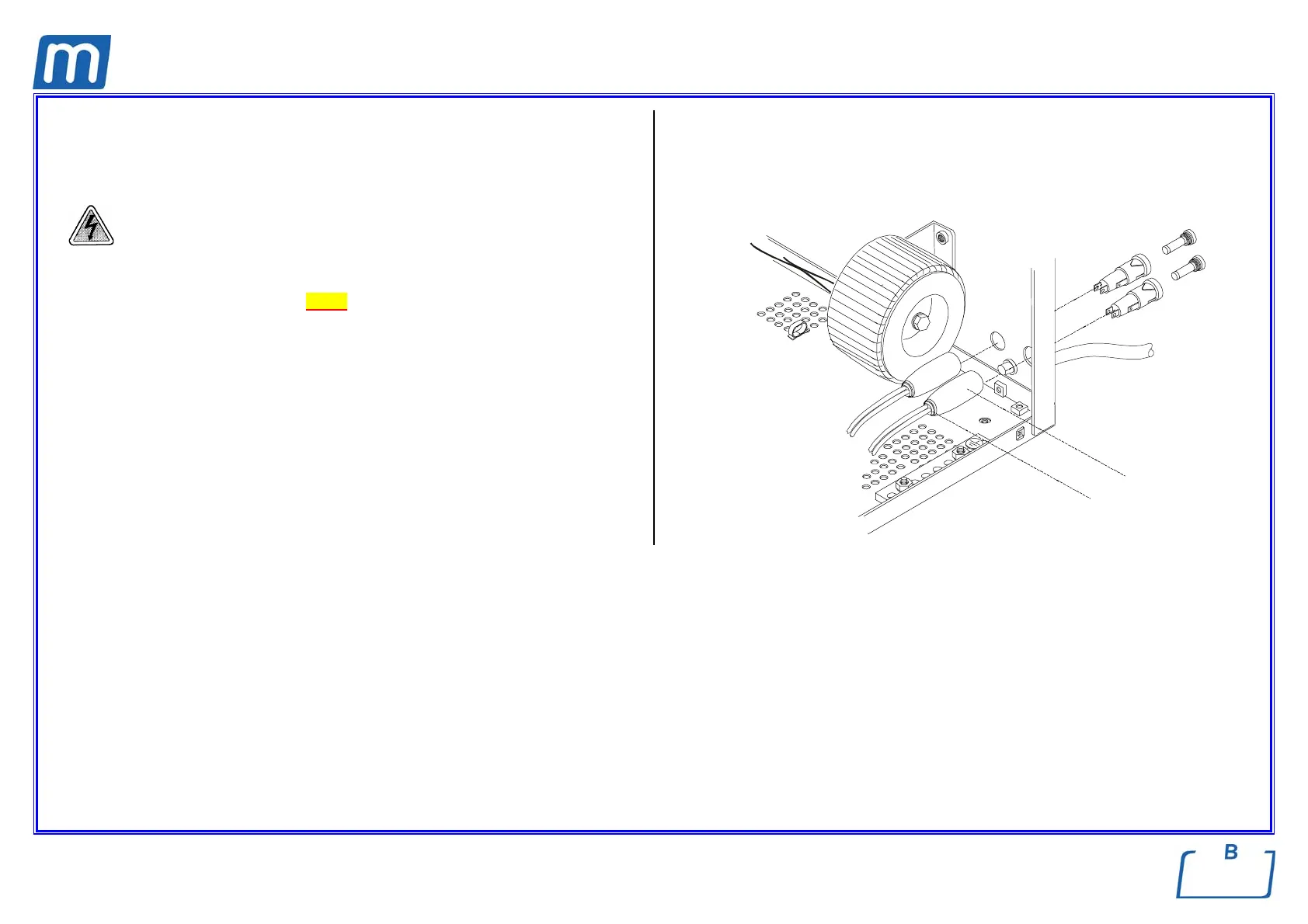

MAINS FUSE HOLDERS
417#00060000
Before servicing, switch off the equipment and unplug the power
supply cable from the mains socket
1. Remove the covers (see card Gr7-1 );
2. Remove the clamp (1) from the sheath (2) of the fuse holder; move the
sheath to access the wiring, then disconnect it from the fuse holder;
3. Unscrew the cap with the fuse (3) and remove the fuse holder (4);
4. Mount the new fuse holder, restore connections and assembly all items
proceeding in reverse order as above;
5. Run a sterilization cycle.
