Rev. 1
Card Gr1-
20
CARTRIDGE RESISTORS
410#00130000
Before servicing, switch off the equipment and unplug the power
supply cable from the mains socket
1. Remove the covers (see card Gr7-1 );
2. Remove the water pump from the base frame (see card Gr3-1);
3. Remove the cartridge wiring from the power board;
4. Remove the steam generator (see card Gr4-6);
5. Remove the support and the thermal insulation of the steam generator;

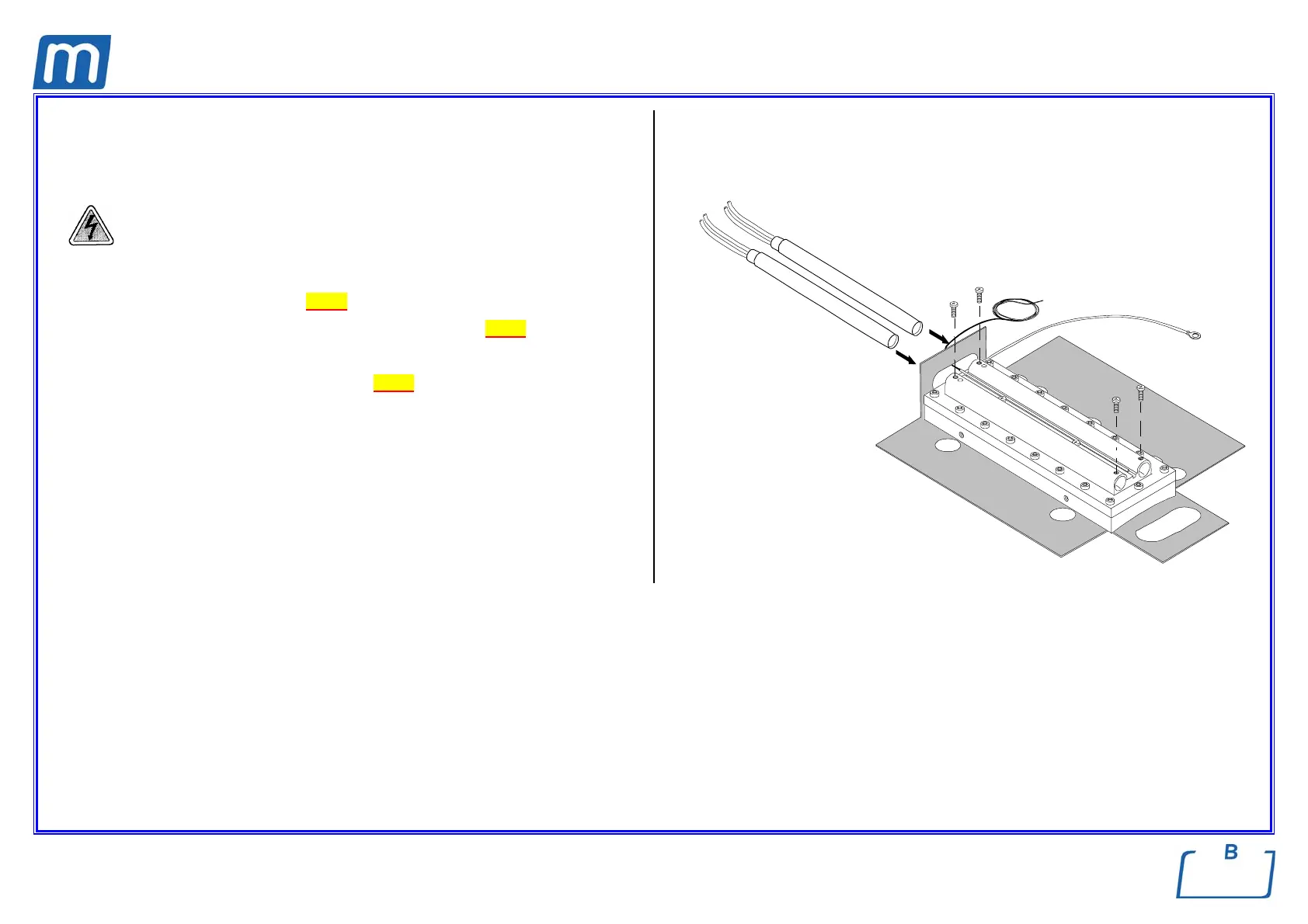

6. Loosen the screws (1) locking the cartridges (2) and take out it;
7. Apply the dissipation paste on the new cartridges and mount them;
8. Restore connections and assembly all items proceeding in reverse order as
above;
9. Run a sterilization cycle.
1
2
1
