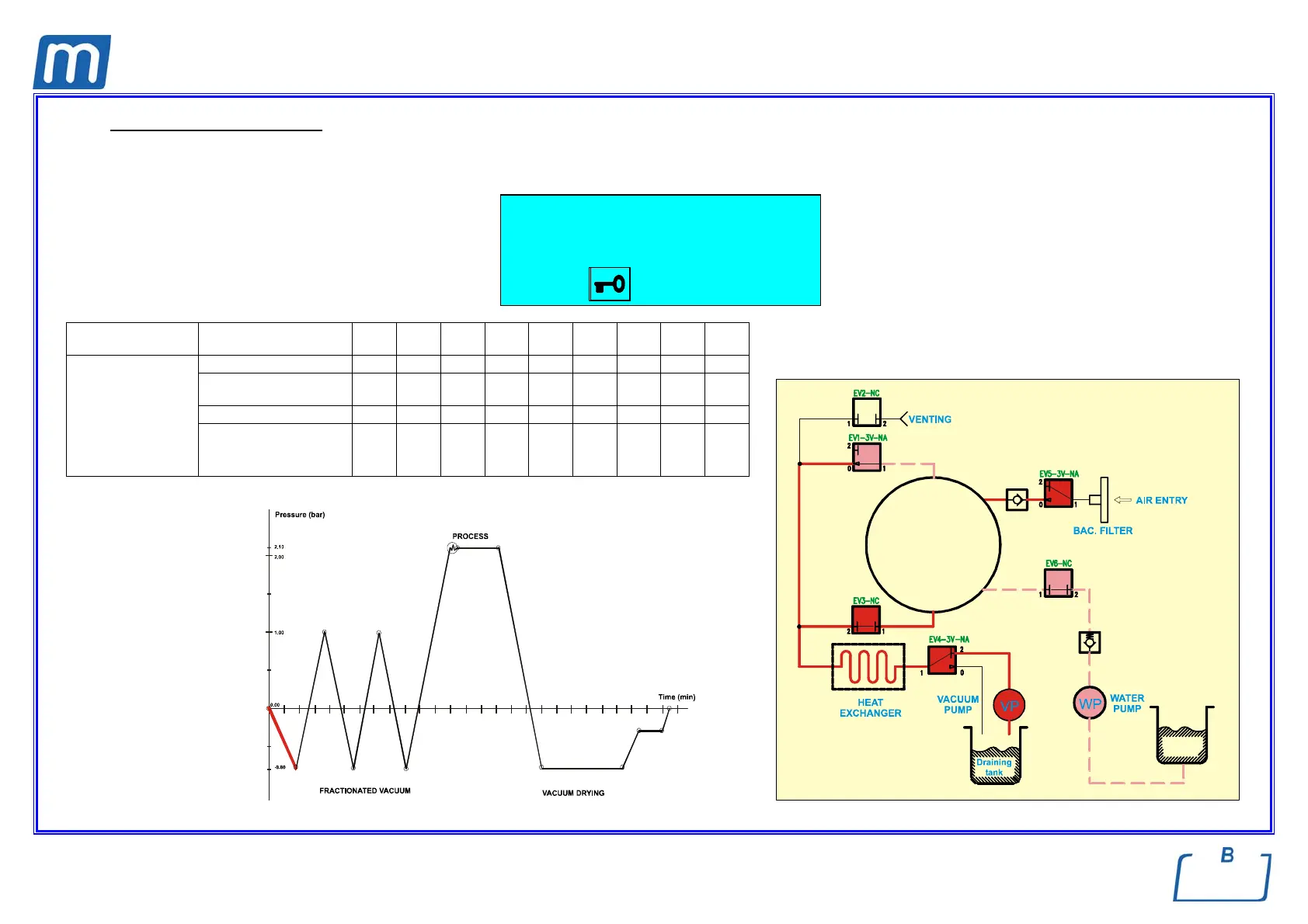

Mocom millennium B - SEQUENCE OF THE PROCESS; 1 st vacuum pulse - PV1

Rev. 1
Page 2-
12
1
st
vacuum pulse – PV1
When the optimum temperature is reached, the first vacuum phase (1st VACUUM PULSE) is started and brings the chamber pressure down to
the established value. The display shows :
1 134°C POROUS
1. VACUUM PULSE
84.1 °C
-0.69 bar 01:25
CHAMBER
Water
tank
DESCRIPTION
STATUSES
(P, t)
VP WP
EV1
(no)
EV2
(nc)
EV3
(nc)
EV4 EV5
(no)
EV6
(nc)
Fan
from 0,00 to –0,70 bar ON OFF OFF OFF ON ON ON OFF ON
Water entry at –0,70 bar
(0,5” x3)
ON ON
ON OFF ON ON ON ON ON
from -0,70 to –0,80 bar ON OFF OFF OFF ON ON ON OFF ON
1st vacuum pulse
Water enetry at –0,80 bar
(0,3” x1)
for P < -0,80 bar
ON OFF
OFF OFF ON ON ON OFF ON
