Mocom millennium B - MIN AND MAX WATER LEVEL PROBES (DISTILLED WATER TANK); MAX WATER LEVEL PROBE (USED WATER TANK)

Rev. 1
Card Gr4-
2
MIN AND MAX WATER LEVEL PROBES (DISTILLED WATER
TANK)
432#00050000
MAX WATER LEVEL PROBE (USED WATER TANK)
432#00060000
Before servicing, switch off the equipment and unplug the power
supply cable from the mains socket
1. Remove the covers (see card Gr7-1 );
2. Remove the wiring of the water level probe from the CPU board;
3. Maintaining steady the probe body, loosen the ring nut and remove the
probe;
4. Mount the new probe, assembly all items and restore connections proceeding
in reverse order as above;
5. Run a sterilization cycle.

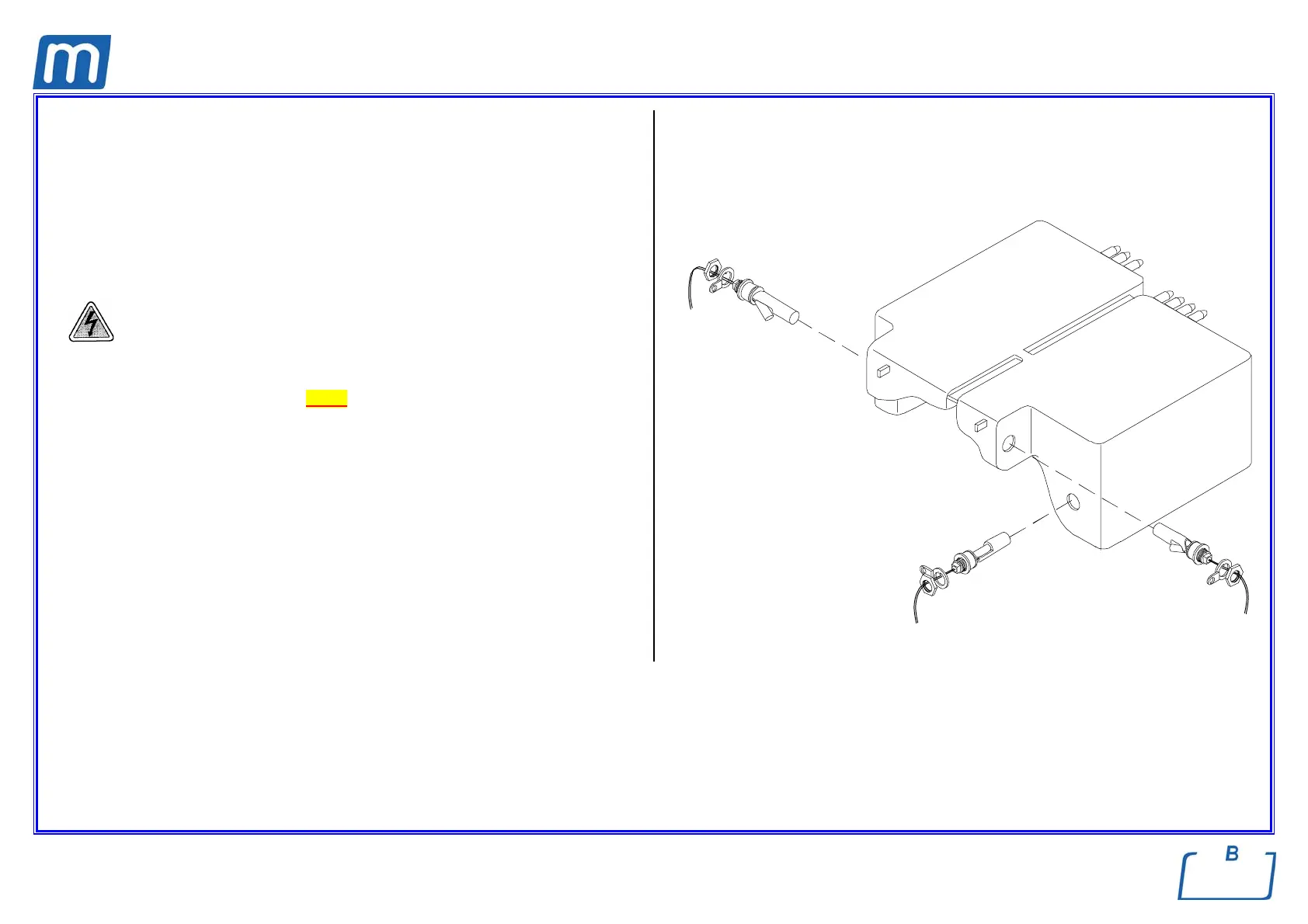

FLOAT MAX
(RECOVERY RESERVOIR)
FLOAT MAX
(MAIN RESERVOIR
FLOAT MIN
(MAIN RESERVOIR
