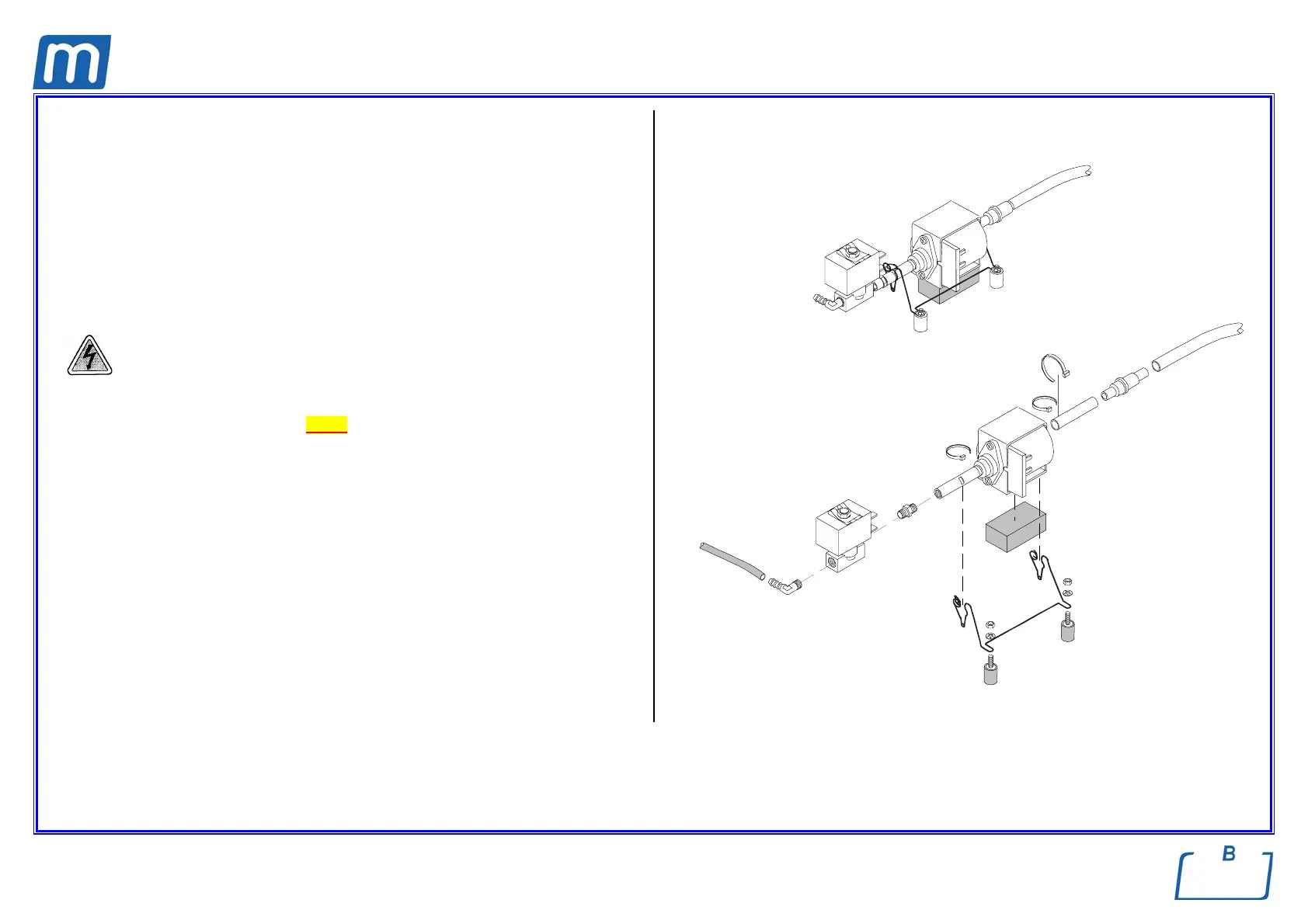

STEAM GENERATOR WATER PUMP ASSEMBLY
A#0BP2860000
STEAM GENERATOR WATER PUMP
400#00220000
WATER PUMP VALVE (EV6)
401#00030000
Before servicing, switch off the equipment and unplug the power
supply cable from the mains socket
1. Remove the covers (see card Gr7-1 );
2. Empty the main reservoir by removing the bottom plug;
3. Remove the transparent and sheathed pipes (1 and 2);
4. Remove the wiring from the pump;
5. Remove the clamps (3) fixing the water pump to the wire-bracket (4) and
remove the pump;
6. Maintain steady the pump shaft, unscrew the valve (5);
7. Mount the new pump, restore connections and assembly all items proceeding
in reverse order as above;
8. Run a sterilization cycle.
1
2
3
4
5
