Rev. 1
Card Gr4-
5

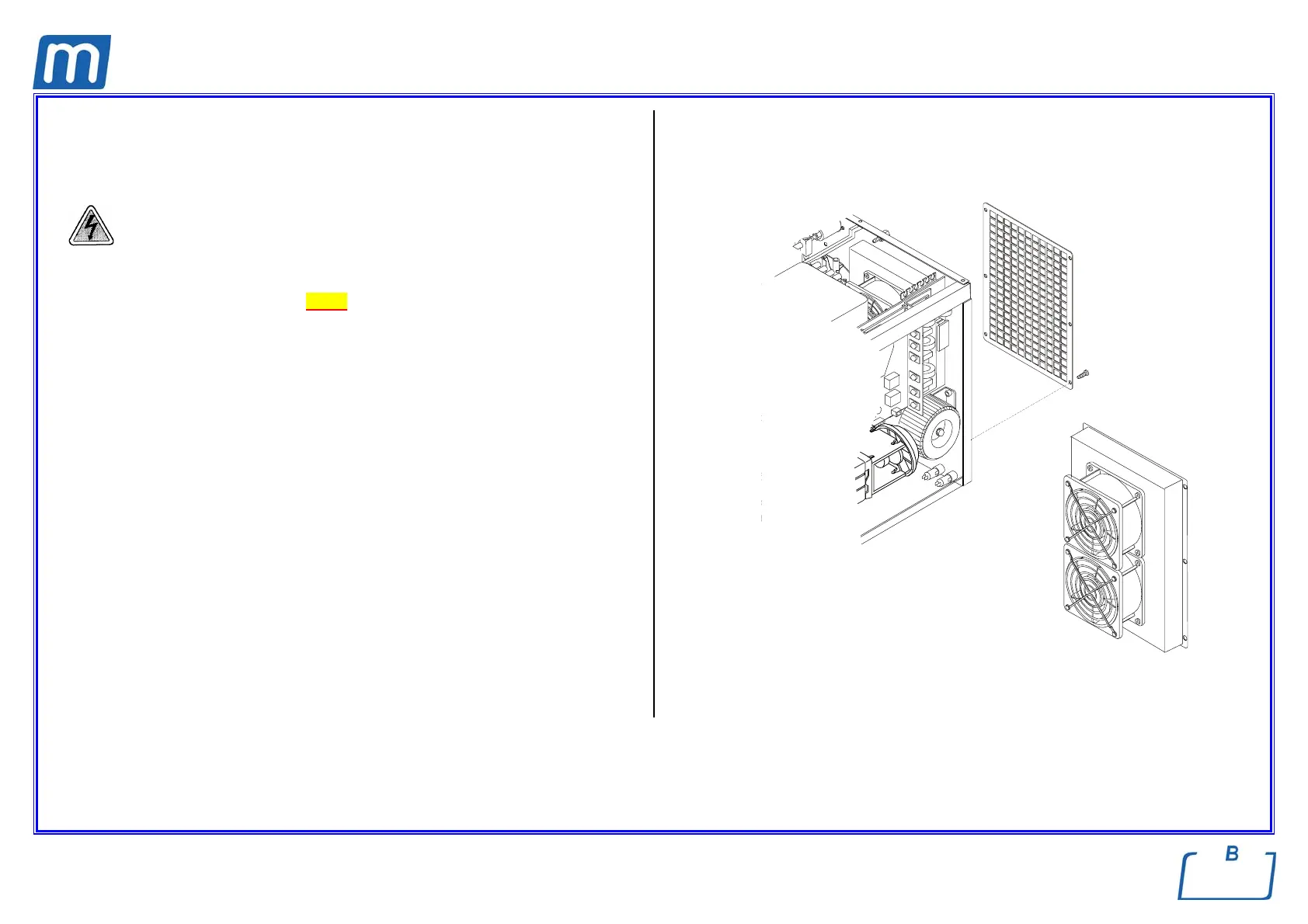

HEAT EXCHANGER ASSEMBLY
A#1BP1640000
Before servicing, switch off the equipment and unplug the power
supply cable from the mains socket
1. Remove the covers (see card Gr7-1 );
2. Remove rear grid (1);
3. Move out the group (2) as possible and remove the sheathed pipes and the
fan wiring from the CPU board;
4. Mount the new group, assembly all items and restore connections proceeding
in reverse order as above;
5. Run a sterilization cycle.
