Rev. 1
Card Gr4-
4
ELECTRIC FAN
404#00030000
Before servicing, switch off the equipment and unplug the power
supply cable from the mains socket

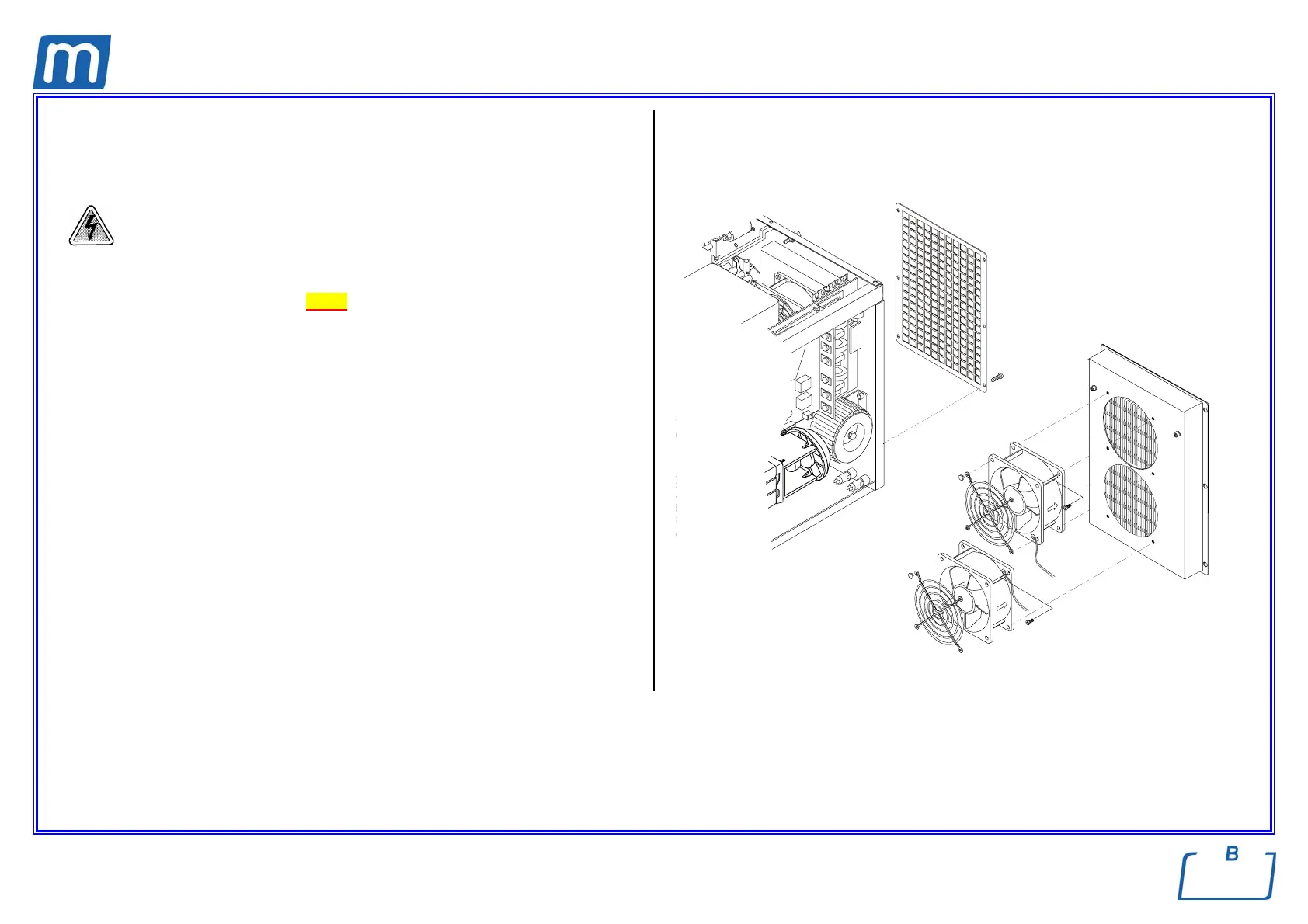

1. Remove the covers (see card Gr7-1 );
2. Remove the rear grid (1);
3. Move out the group as possible and remove the sheathed pipes and the fan
wiring from the CPU board;
4. Remove the cap (2) and remove the fan (3);
5. Mount the new electric fan, assembly all items and restore connections
proceeding in reverse order as above;
6. Run a sterilization cycle.
3
2
2
3
1
