VACUUM DOUBLE PUMP ASSEMBLY
A#0BM3100000
VACUUM DOUBLE PUMP
400#00290000
CENTRAL GASKET
400#00150000
MEMBRANE
400#00240000
“VITON” SHUTTERS
400#00180000
VACUUM PUMP HEAD
400#00120000
Before servicing, switch off the equipment and unplug the power
supply cable from the mains socket
1. Remove the covers (see card Gr7-1 );
2. Remove, from the bottom frame, the screws fixing the vacuum pump;
3. Remove the sheathed pipes and the wiring from the pump;

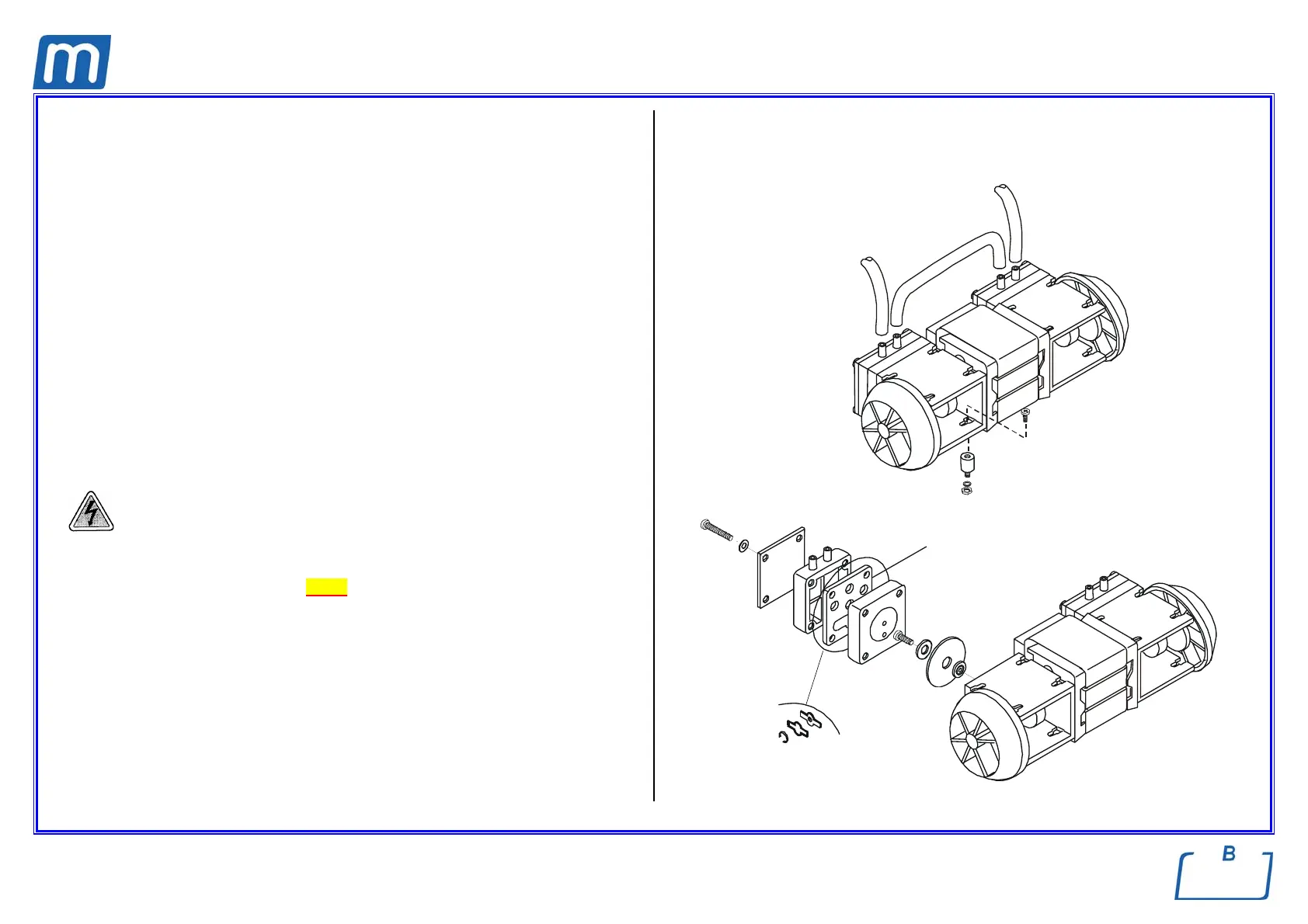

4. Remove the pump and disassembly it as necessary (see figure);
5. replace the part, restore connections and assembly all items proceeding in
reverse order as above;
6. Perform a vacuum test;
7. Run a sterilization cycle.
Otturatori
Viton
Guarnizione
centrale
Membrana
Central
asket
Membrane
“Viton”
shutters
