To avoid having to periodically empty the draining tank, it is possible to connect it directly to a central drain.
– Insert the screw plug in place of the free vent hose union on the side connector of the draining tank;
– Screw the 1/8" hose union, supplied, on the side connector; use a wrench to hold the connector to be tightened;
– Use Teflon tape or connector sealant for a perfect seal.
– On this tube union, insert a tube of suitable material and dimensions (NOT
SUPPLIED); push the tube all the way on and lock with the plastic
tie provided.
– Connect the other end of the tube to the centralized draining point, checking the seal.
e Make sure the tube is not bent, crushed or obstructed in any way.

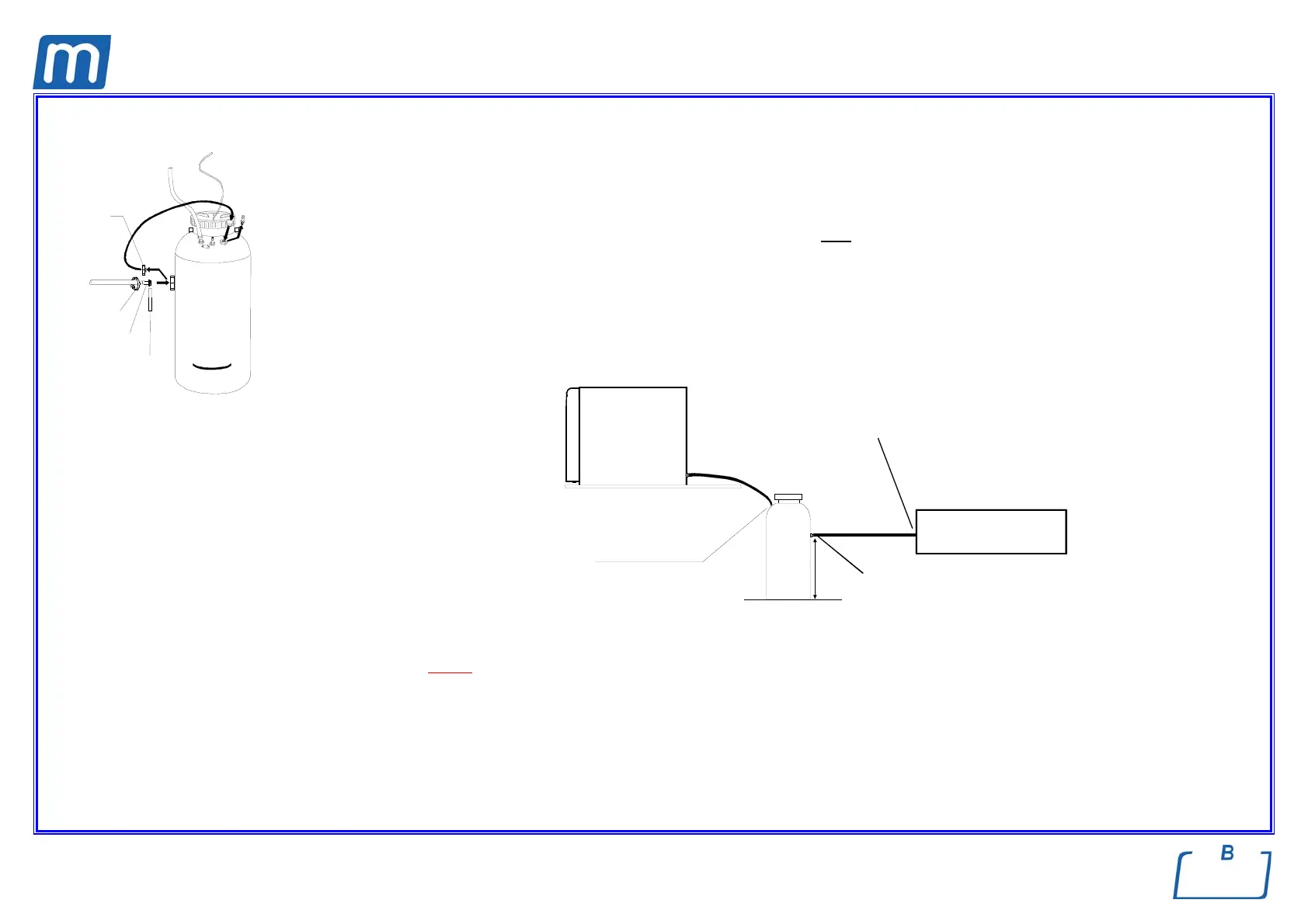

The following diagram provides an indicative arrangement of the components:
DRAIN
CENTRALIZED
Draining tank
Connection point
of the centralized draining plant
Connection point
of the draining tank
Sterilizer
X
Support plane
This point must be lower
than the support plane
Dimension X is the height of the side connector of the tank above the floor. The connection between the tank and the centralized
draining point MUST
no higher than x+30 mm. Higher connections could compromise the correct emptying of the tan.
Teflon
Clip
Draining tank
Replace the pipe-fitting
by the plug
To the draining
plant
Pipe-fitting
Plug
