Guide to Components
21
1

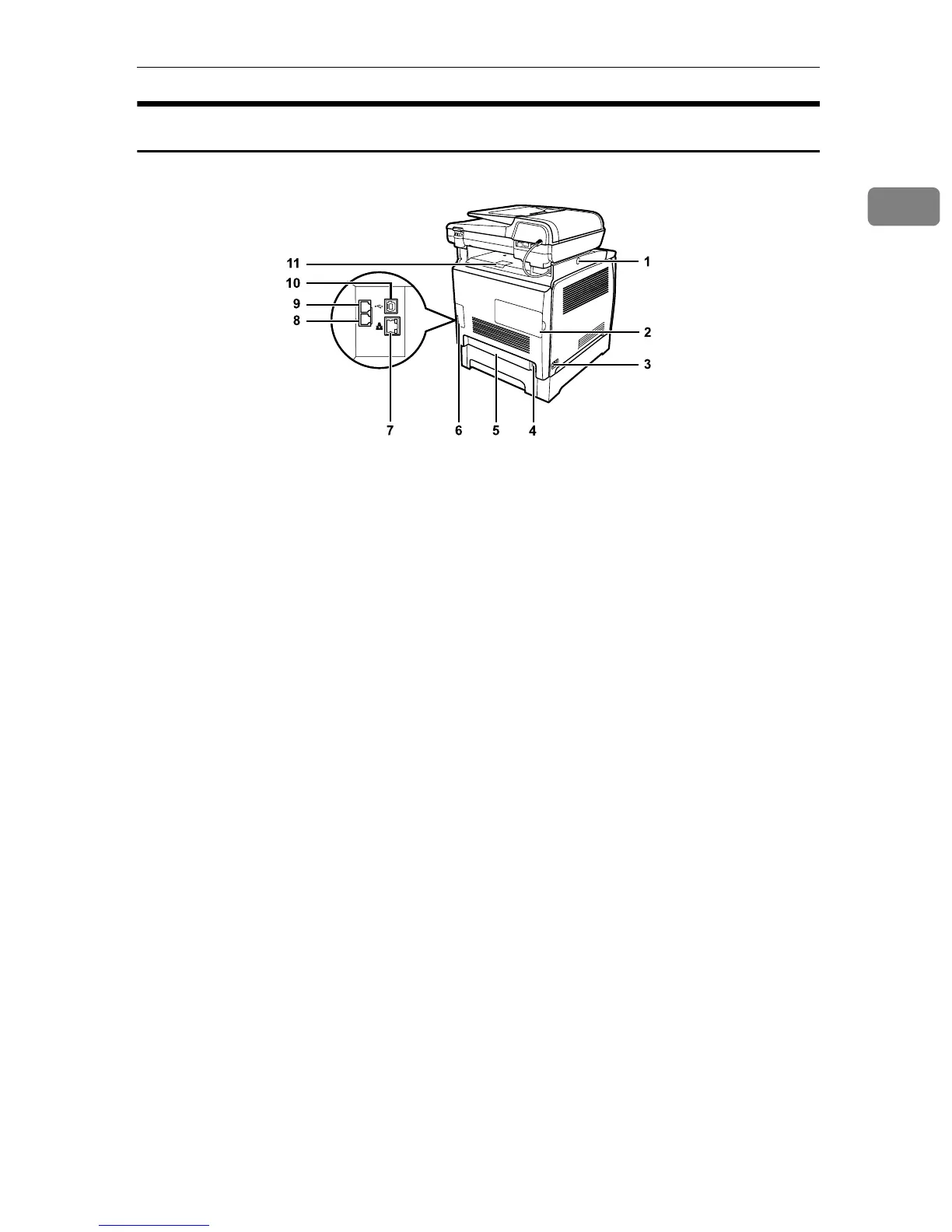

Exterior: Rear View
1. Button for Sliding the ADF
Press to slide the ADF towards the rear of
the machine and hold it in that position,
if paper output to the output tray is diffi-
cult to retrieve.
2. Memory Cover
Remove this cover to install the optional
memory unit.
3. Power Switch
Use this switch to turn the power on or
off.
4. Power Socket
For connecting the power cord to the ma-
chine.
5. Rear Cover
Remove this cover when loading paper
longer than A4 in tray 1.
6. Cable Cover
Remove this cover when connecting ca-
bles to the machine.
7. Ethernet Port
For connecting the machine to the net-
work using a network interface cable.
8. G3 (analog) Line Interface Con-
nector
For connecting a telephone line.
9. External Telephone Connector
For connecting an external telephone.
10. USB Port
For connecting a USB cable.
11. Stop Fences
Raise this fence to prevent paper falling
off when printing a large amount of pa-
per at a time. The fence can be adjusted at
the A4/Letter or Legal size position.
BAA116S
To Next Page
