Ricoh Aficio SP C232SF User Manual

Replacing the Waste Toner Bottle
305
9

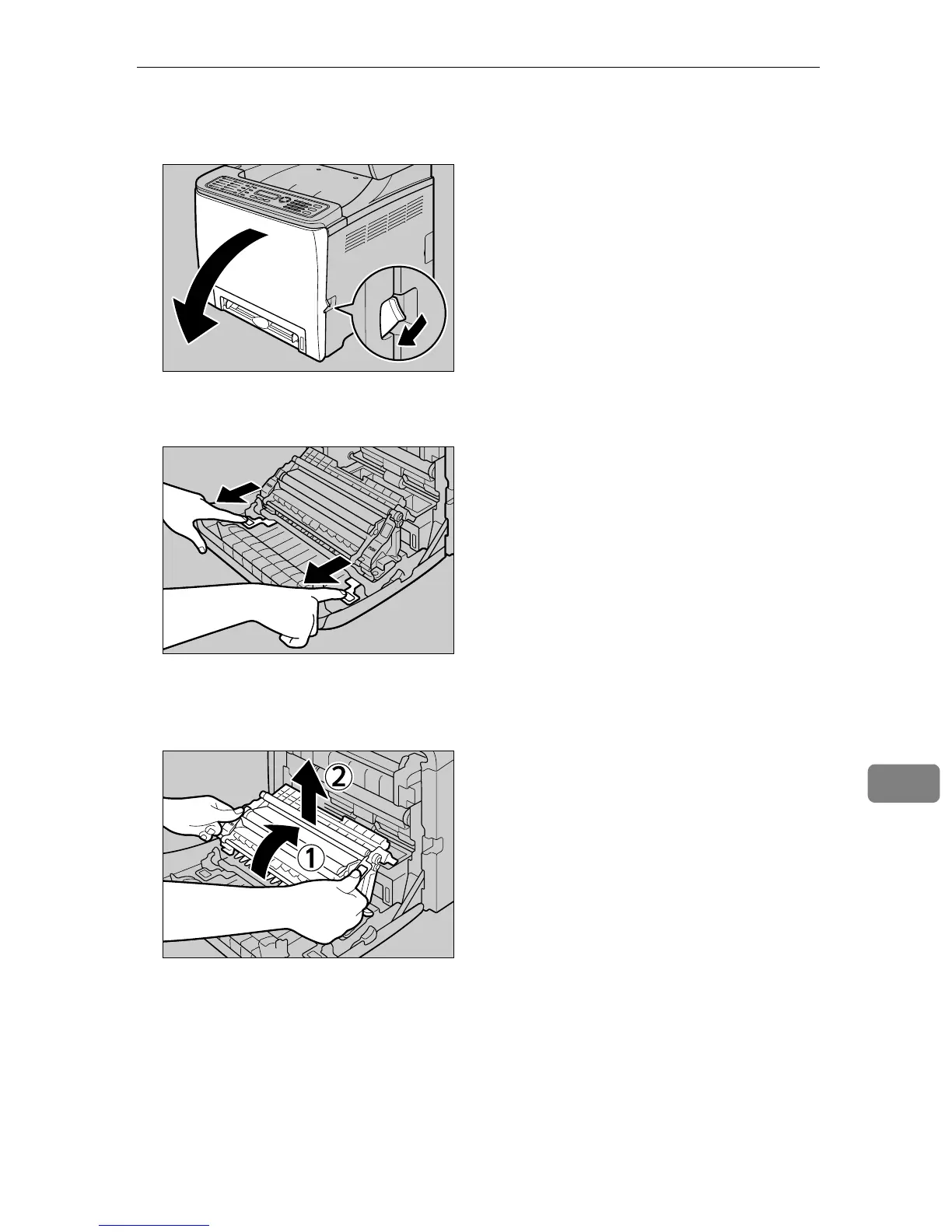

A Pull the opening lever on the front cover, and then carefully lower the front
cover.
B Slide both green levers on the front cover.
C Holding the green tabs on both ends of the transfer unit, tilt it backwards
then lift it up.
BPC045S
BAA057S
BAA058S
