Ricoh Aficio SP C232SF - Page 89

Loading Paper
79
2

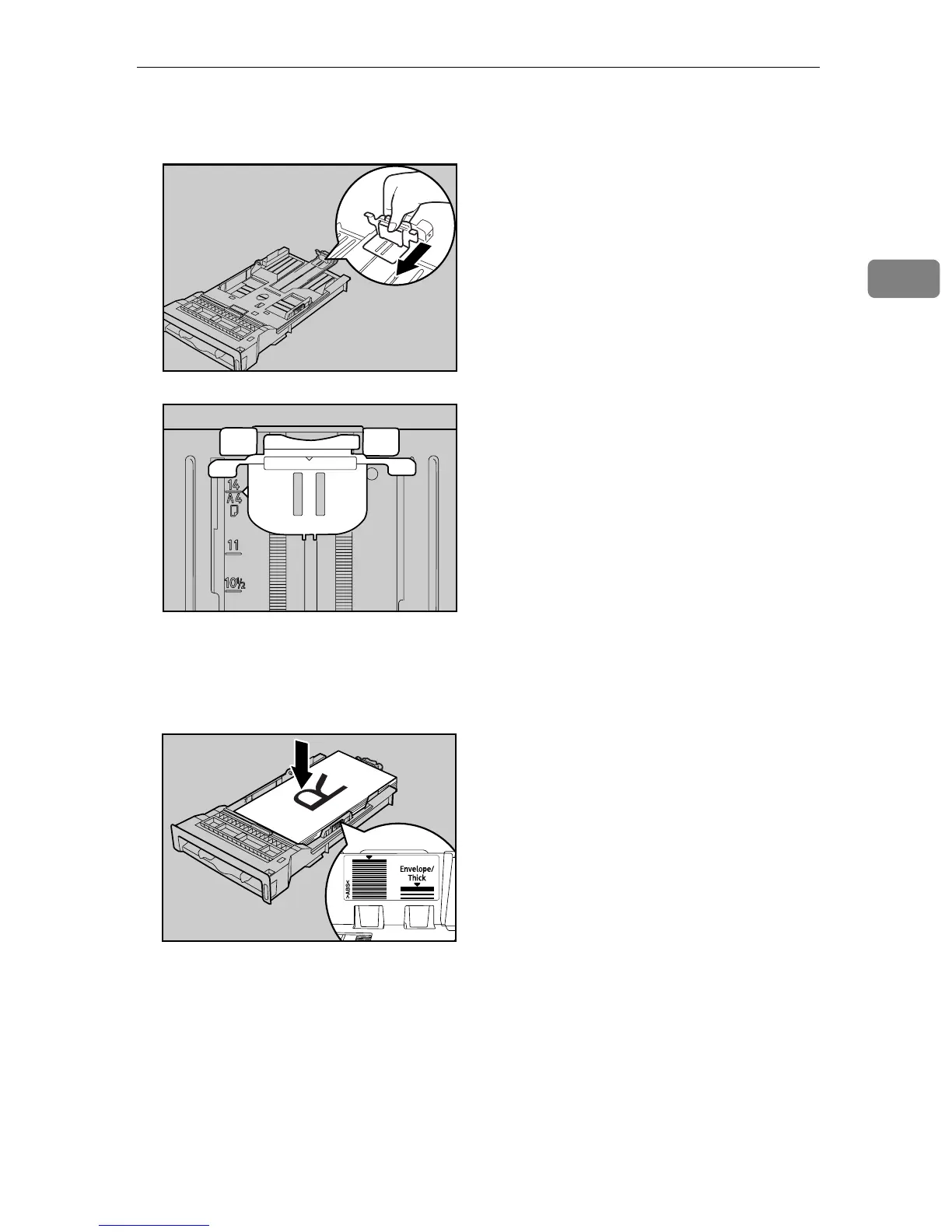

F Pinch the front end paper guide and slide it inward to match the Legal pa-
per size.
G Load the new paper stack print side up.
Make sure paper is not stacked higher than the upper limit (upper line)
marked inside the tray.
Slide the guides inward until they are flush against the paper's sides.
ASH117S
ASH126S
ASH116S
