Ricoh IM C400F

Caster Table Type M41 (D3GW03)
SM 2-67 D0CA/D0C9/D0C8/D0CB
Installation

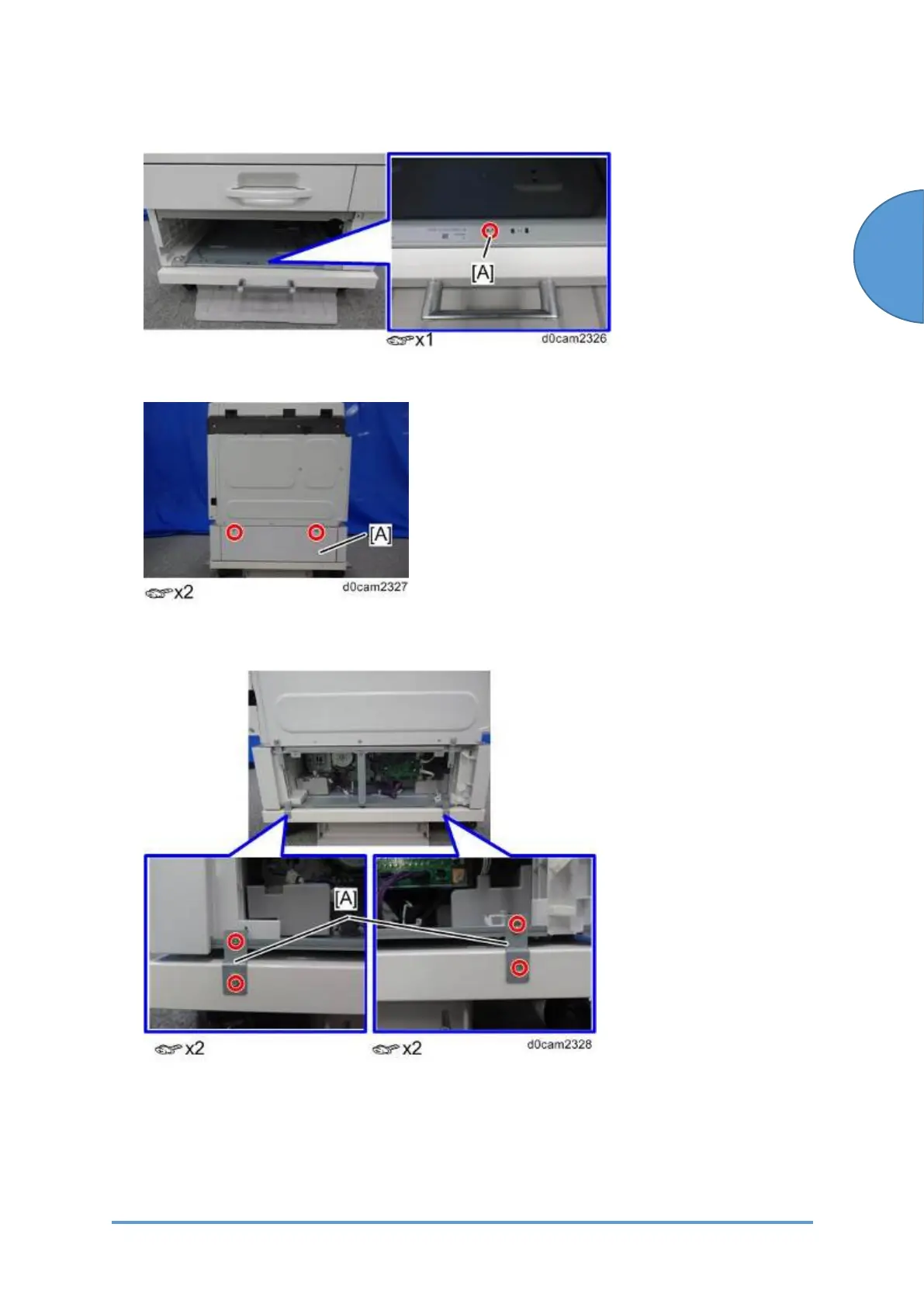

8. Secure the caster table and optional paper feed unit with the screw [A].
9. Remove the rear cover [A] of the optional paper feed unit.
10. Secure the caster table and the 1st level of the optional paper feed unit with the two joint
brackets [A].
