Anti-condensation Heater
SM 2-109 D0CA/D0C9/D0C8/D0CB

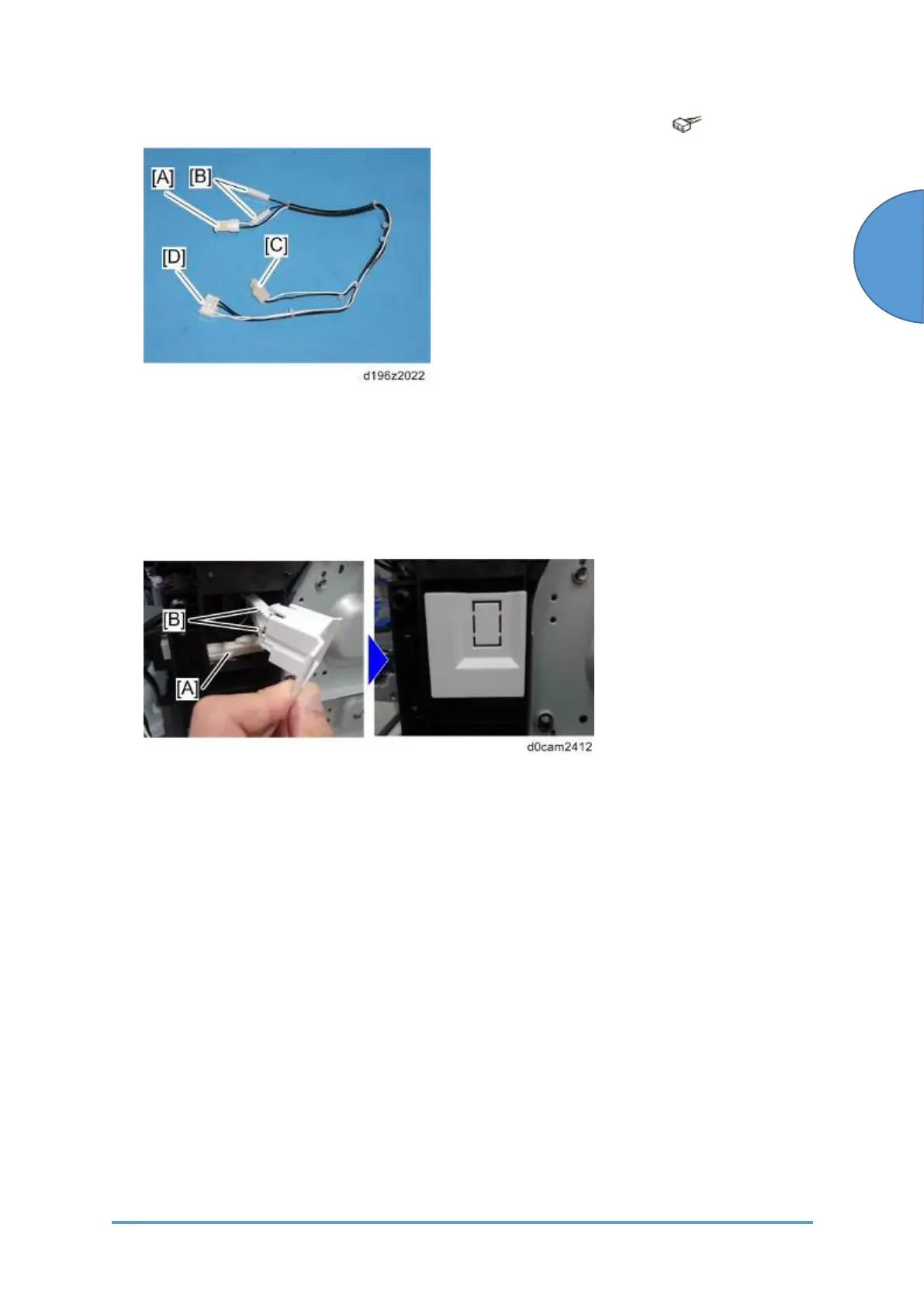

13. Connect the connector [A] of junction harness to the connector of heater.( × 1)
A: To the heater
B: Not used
C: To the optional PFU heater (if installed)
D: To the PSU (PCB17)
14. Store the connector [A] with the connector of heater in the connector holder, then push the
power switch [B] into the switch hole until you feel it click into place.
15. Route the junction harness as shown below.
To Next Page
