Main Machine Installation: Installation Procedures
SM 2-15 D0CA/D0C9/D0C8/D0CB

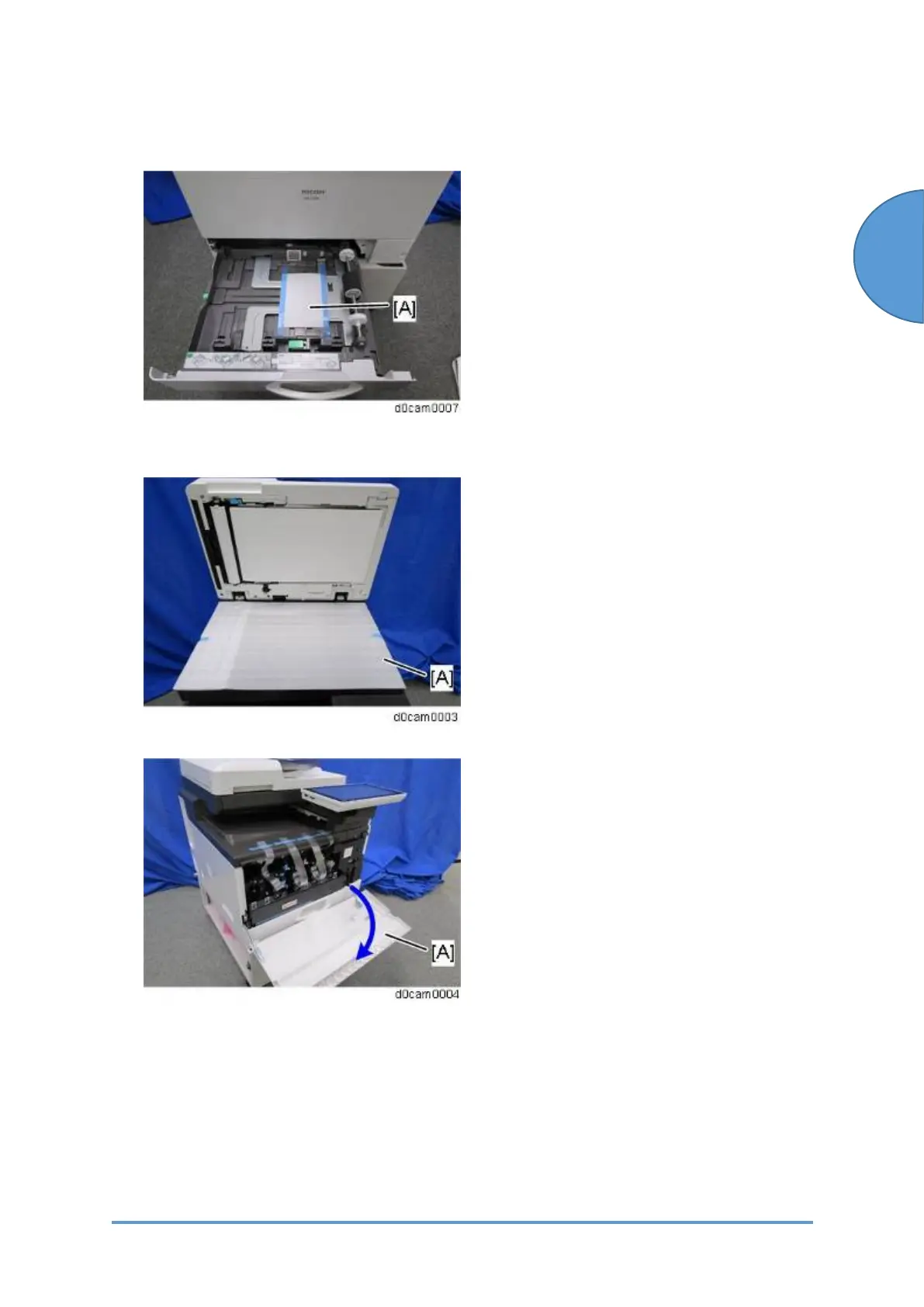

3. Pull out the paper feed tray and remove the packaging tapes and protective sheet [A]
inside.
4. Open the ADF, and then remove all the tapes and the retainer (protective sheet) [A] from
the exposure glass.
5. Open the front cover [A].
6. Pull out all protection seals on the drums straight out towards the front.
To Next Page
