Main Machine Installation: Installation Procedures
D0CA/D0C9/D0C8/D0CB 2-16 SM

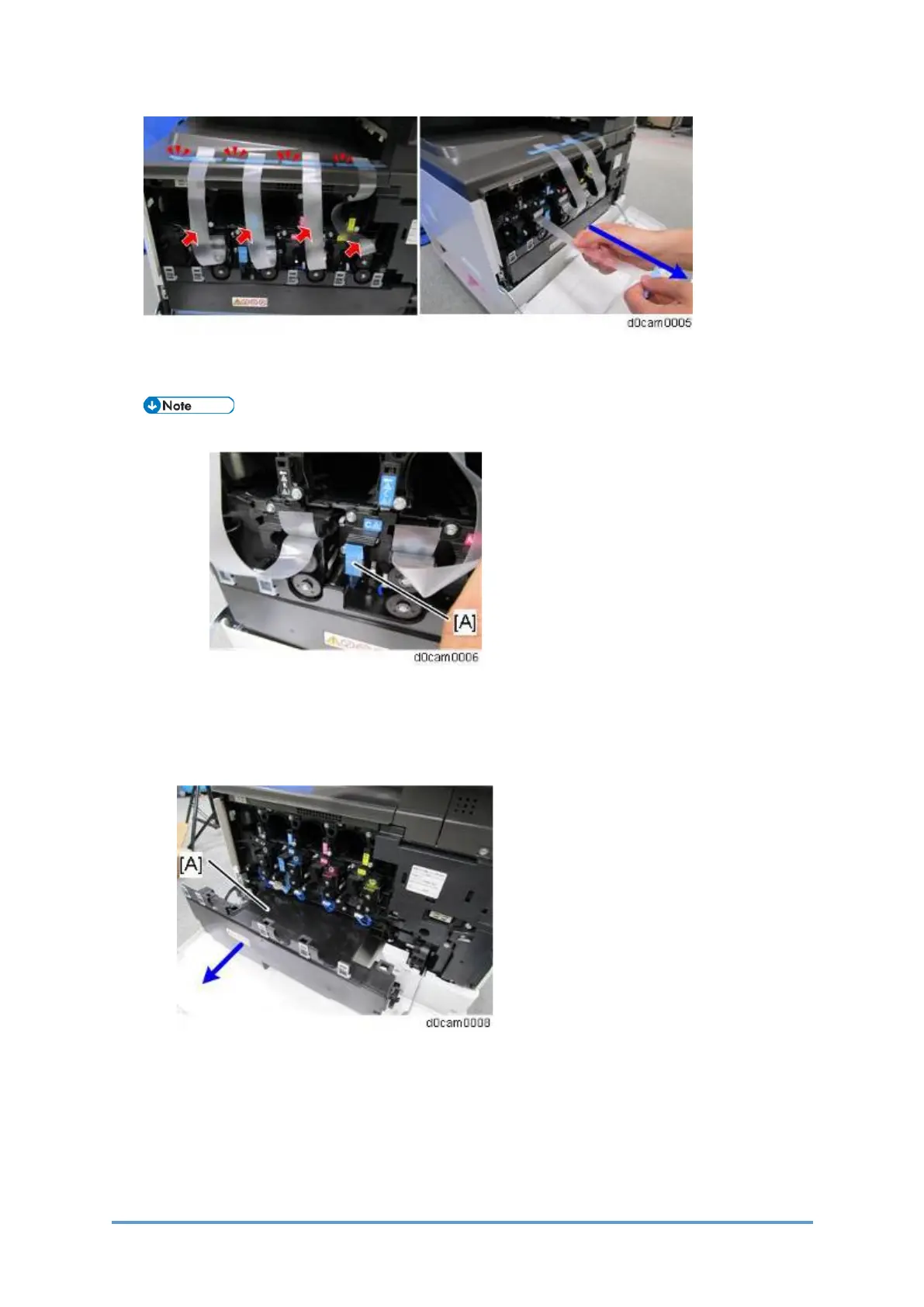

• Do not remove the packaging tape [A] at this time.
7. Do the following procedure to remove the waste toner bottle.
IM C300 series
1. Close the front cover, and then remove the paper feed tray.
2. Open the front cover again, and then remove the waste toner bottle [A].
To Next Page
