How to Collect Pre-set Non ROUTE Measurements

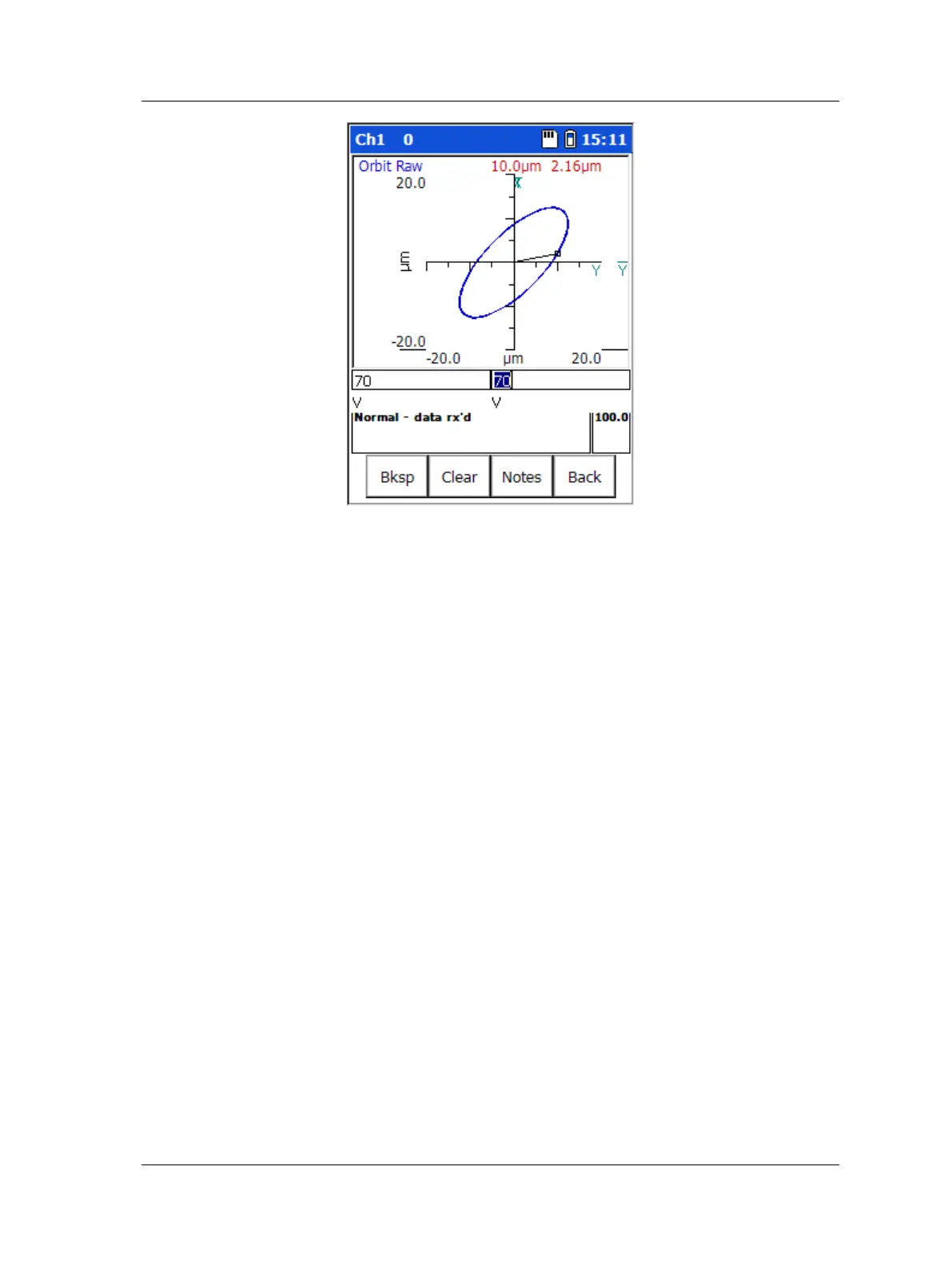

Figure A - 5.
An Orbit Display.
Function Buttons
Orbit display function buttons are:
Help – Press the Help function button to display the Help screen to quickly view on-line
help for Microlog data collection. The Help screen also accesses the Point Information
screen.
 Reference the How to View POINT Setup Information section in
the ROUTE Data Collection chapter for more information.
Retake – Press to retake measurement.
View - Use the View function button to determine how to view orbit measurements.
View options for orbit POINTs are;
Orbit: Default View
Point Info
Orbit View
Time X Time Y
1x
2x
3x
Notes – Press the Notes function button to access the Microlog’s Notes screen, where
you may view or add coded notes for the current POINT.
 Reference the Coded Notes section in the ROUTE Data
Collection chapter for more information.
Back – Press the Back function button to exit the orbit display without storing the
measurement data. You return to the main screen.
