The Analyzer Module
How to Collect Standard Vibration Measurements
• Use the up / down arrow keys to highlight the desired View option, and press the
OK button (or left arrow) to select. The field closes and indicates the selected view
option.
 The View Options screen provides a Default function button,
allowing you to, when necessary, quickly revert to the
measurement’s default view.
• Press the OK button to return to the data display screen using the selected View
option. The selected view is indicated at the top of the display.

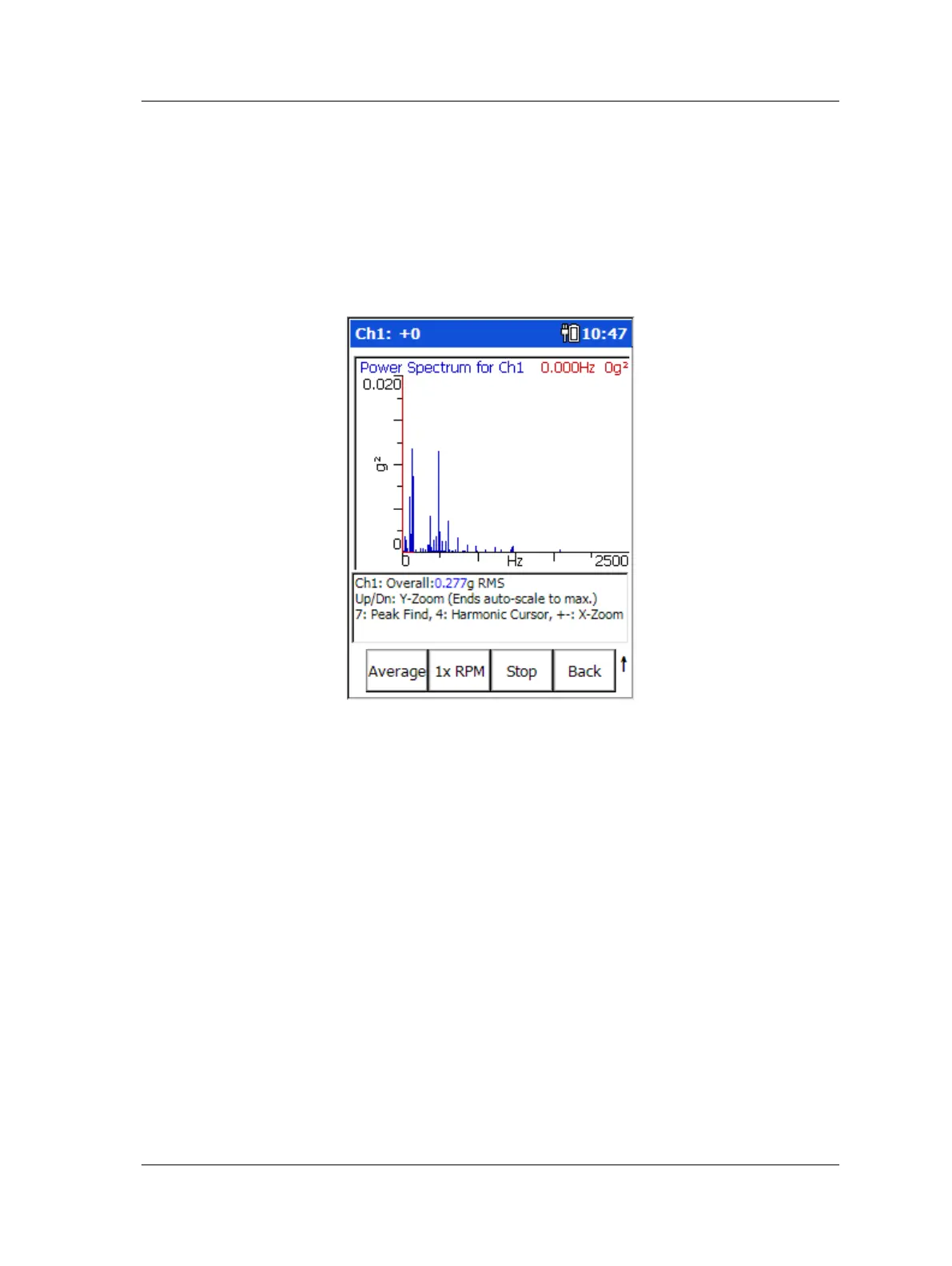

Figure 4 - 5.
A Measurement’s Power Spectrum View.
• Move the spectral cursor to identify spectral frequencies of interest.
 Press P to jump the cursor to the next peak, or press H to display
harmonic markers for the cursor position.
• For phase readings, move the cursor between peak amplitudes to observe the
phase difference between the peak amplitude components of the roving sensor to
the reference sensor.
 If you wish to return to the measurement’s setup screen, exit
Back to the Analyzer main menu and then select the Recall icon
to recall the previous measurement’s setup screen.
Save - If desired, press the Save function button to name and save the current
Analyzer display (and its settings) for later review and use. Saving measurement results
is described in detail in the following Saving Analyzer Measurement Results section.
Back – Exits the measurement and displays an Unsaved data acquisition found!
message that provides you another opportunity to Save the measurement results, and
then return to the Analyzer screen – or to Exit the measurement without saving the
results - or to Cancel and go back to the measurement results screen.
SKF Microlog - GX Series 4 - 7
User Manual
