Stober SD6 - Function; X103 B

ID 442426.04 113WE KEEP THINGS MOVING
Connection
7
Manual SD6
Terminal description X103A

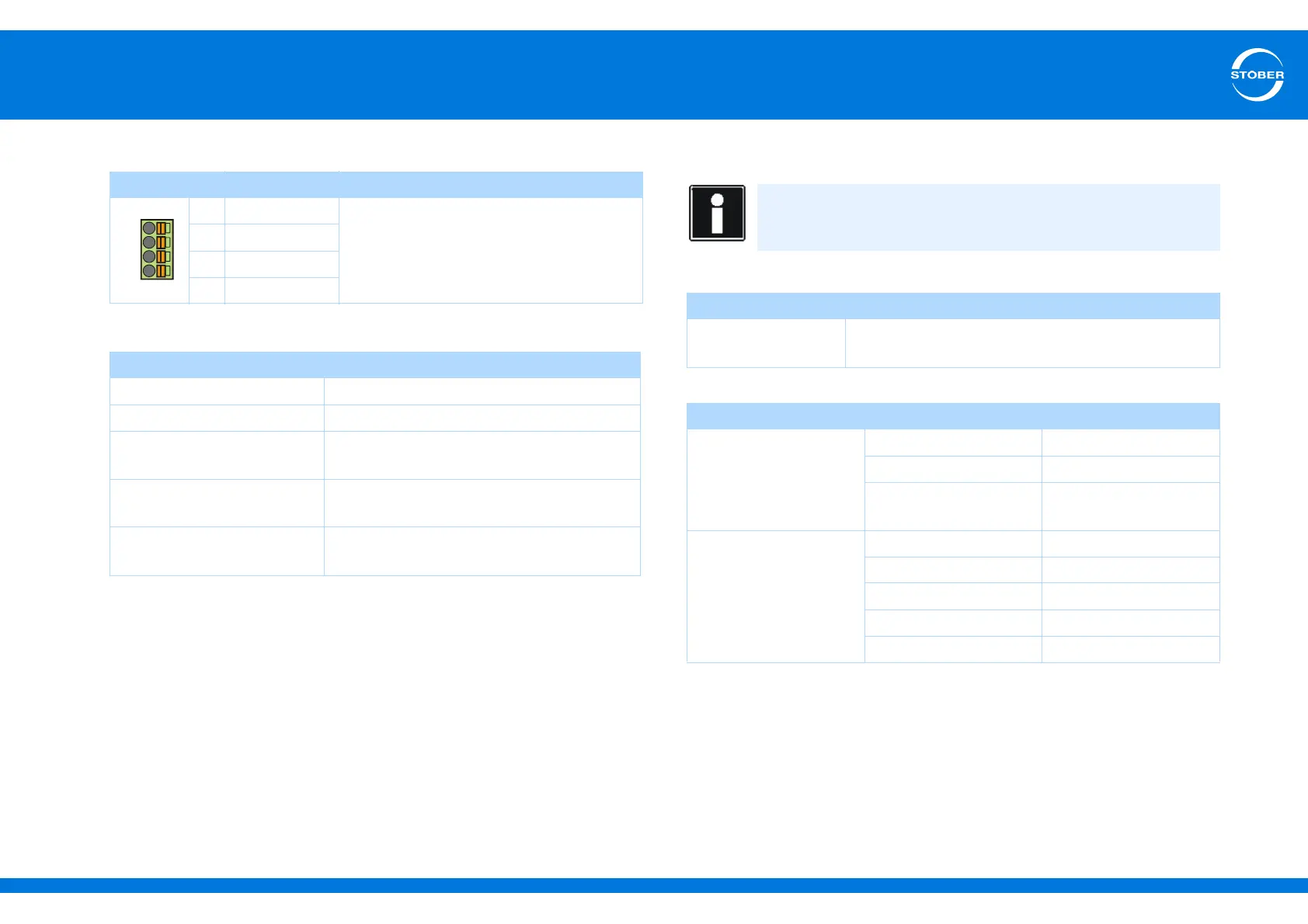

7.4.5 X103B
X103B specification
Pin Designation Function
1 BA3
Binary output
2 BA4
3 BA5
4 BA6
Maximum conductor cross-section
Connection type Maximum conductor cross-section [mm
2
]
Rigid 1,5
Flexible 1,5
Flexible with cable end,
without plastic sleeve
1,5
Flexible with cable end, with
plastic sleeve
0,75
2 leads with the same cross-
section with double cable end
—
4
1
2
3
Information
When the 24 V power fails, binary inputs BE6 to BE13 have signal
status 0 (regardless of the physical signal state).
General specification
Maximum cable
length
30 m, shielded
Electrical data
Binary outputs 
BA7 to BA10
Maximum output current 50 mA
Typical voltage drop < 2 V
Refresh rate Cycle time of the
application
Binary input BE6 Low level 0 – 8 V
High level 12–30 V
Input voltage Max. 30 V
Input current Max. 16 mA
Input frequency Max. 3 kHz
