Stober SD6 - Function

ID 442426.04 116WE KEEP THINGS MOVING
Connection
7
Manual SD6

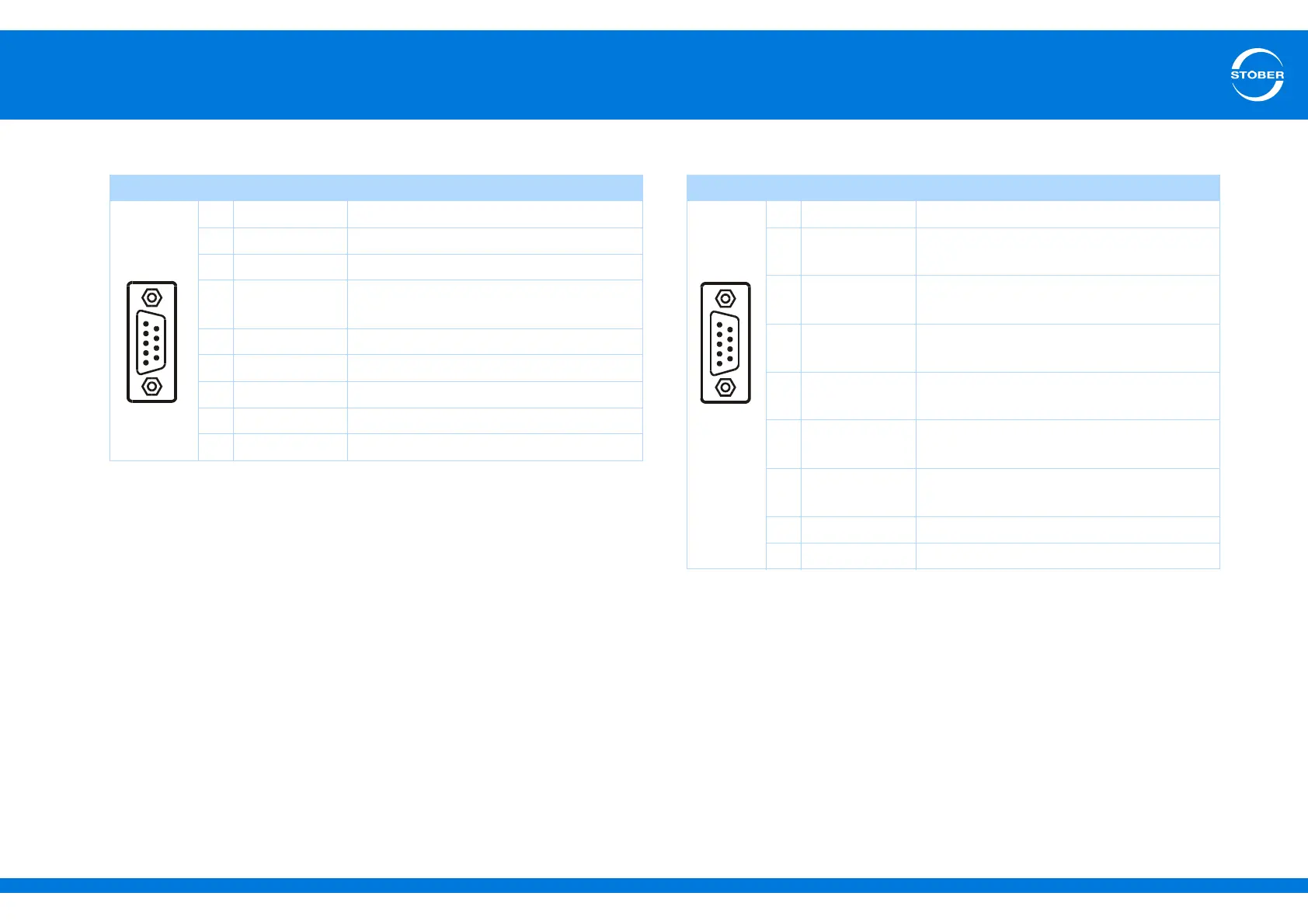

Terminal description X120 for SSI encoder Terminal description of X120 for incremental encoder
Pin Designation Function
Connector
1 GND-ENC Reference potential for pin 4 to pin 7
2— —
3— —
4 CLK- Inverse differential input/output for
CLOCK
5 CLK+ Differential input/output for CLOCK
6 DATA+ Differential input/output for DATA
7 DATA- Inverse differential input/output for DATA
8U
2
Encoder supply
9 GND Reference for pin 8
5
1
9
6
Pin Designation Function
Connector
1 GND-ENC Reference potential for pin 2 to pin 7
2 N+ Differential input/output for the 
N channel
3 N- Inverse differential input/output for the N
channel
4 A- Inverse differential input/output for the A
channel
5 A+ Differential input/output for the 
A channel
6 B+ Differential input/output for the
B channel
7 B- Inverse differential input/output for the B
channel
8U
2
Encoder supply
9 GND Reference for pin 8
5
1
9
6
