ID 442426.04 124WE KEEP THINGS MOVING
Connection
7
Manual SD6
7.6.2 Overview of terminals

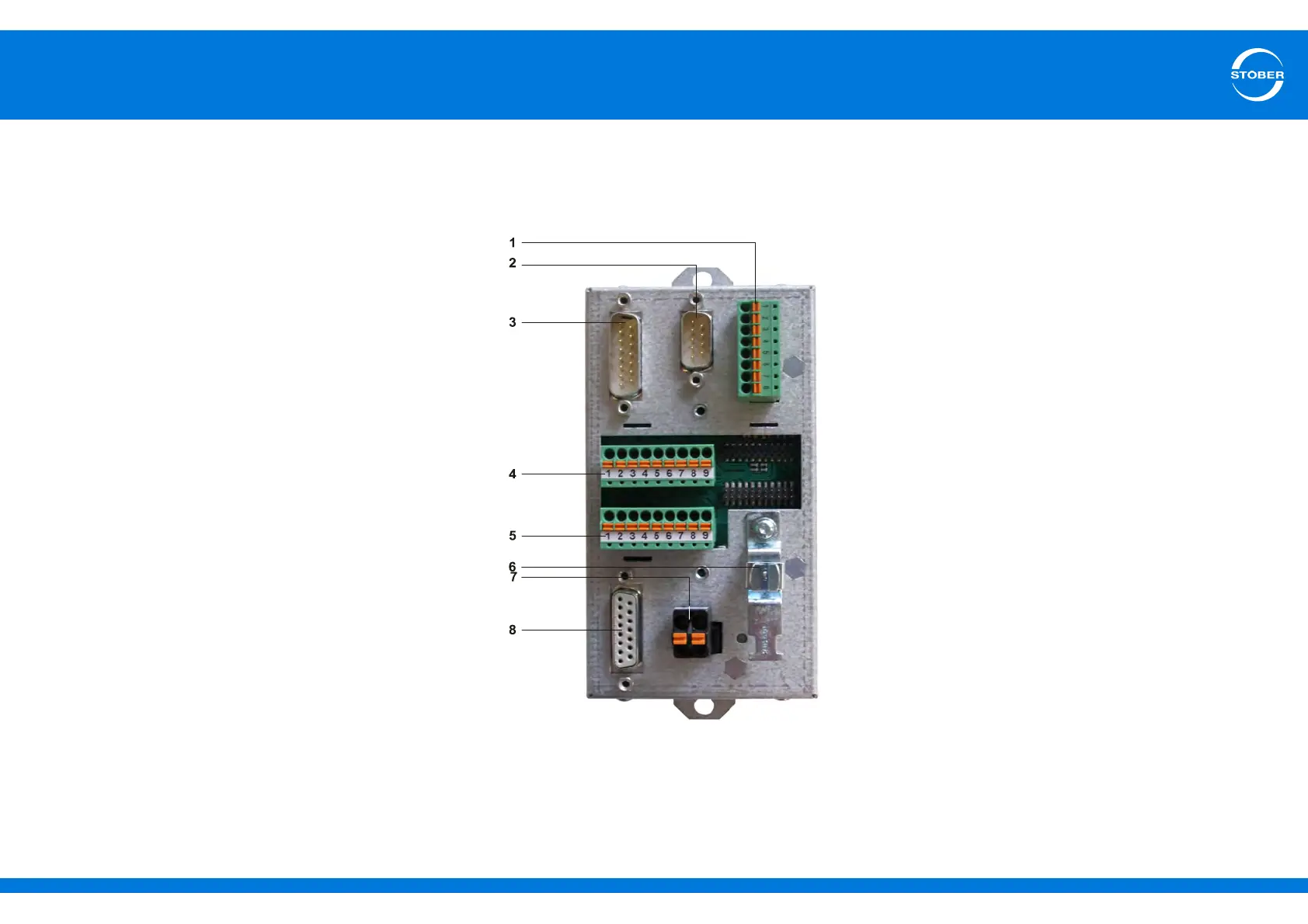

The terminal overview shows the adapter box for transferring TTL and Hall
sensor signals from HIWIN synchronous linear motors to the SD6 drive
controller.
1 X302: Connection to SD6, terminal X101 (on terminal module XI6, RI6 or
IO6)
2 X301: Connection to SD6, terminal X120 (on terminal module XI6 or RI6)
3 X300: Connection to SD6, terminal X4
4 X305: Connection to HIWIN-TTL via loose cable ends
5 X306: Connection to HIWIN-TTL via loose cable ends
6 Shielded terminal
7 X303: 24V power supply
8 X304: Connection to HIWIN-TTL via D-sub connector
