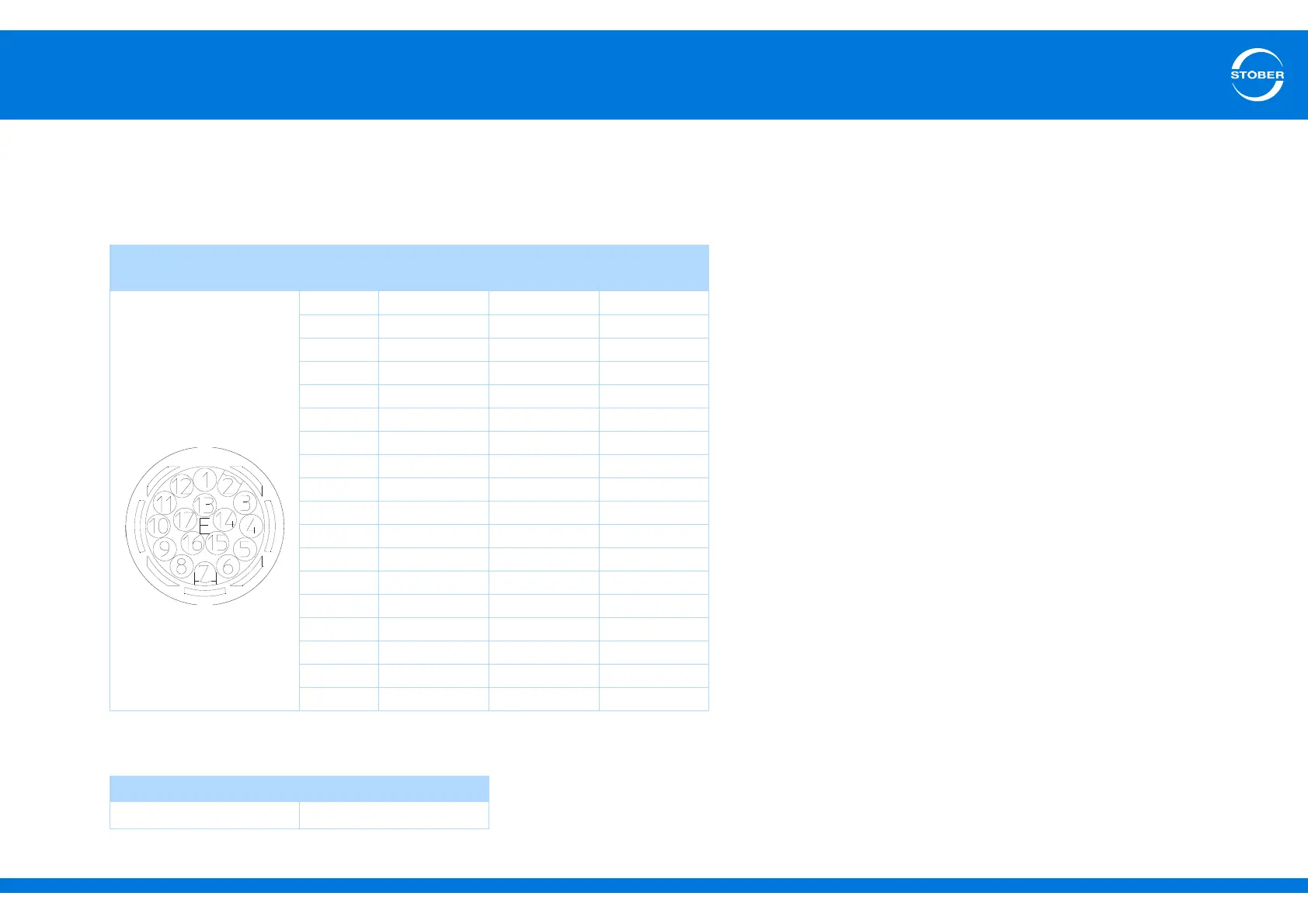

7.7.2.4 Encoder TTL
TTL incremental encoder in combination with a Hall sensor can be combined with HIWIN synchronous linear motors.
The matching encoder cable for the connection to the LA6 adapter box is described below.
Encoder cable – plug connector con.17
Motor Signal Wire colors D-sub (X304)
Angle flange socket Pin Encoder Pin
1A- YE 5
2B- OG 4
3N+ BU 11
4U
2
BNRD 2
5SenseBNYE 6
6———
7———
8———
9A+ GN 13
10 B+ RD 12
11 N- GY 3
12 GND BNBU 10
13———
14 HALL A GNRD 1
15———
16 HALL B GNBK 9
17 HALL C BNGY 14
Housing Shield
Dimensions – connector size con.17
Length [mm] Diameter [mm]
56 22
