ID 442426.04 25WE KEEP THINGS MOVING
Components of the drive system
3
Manual SD6

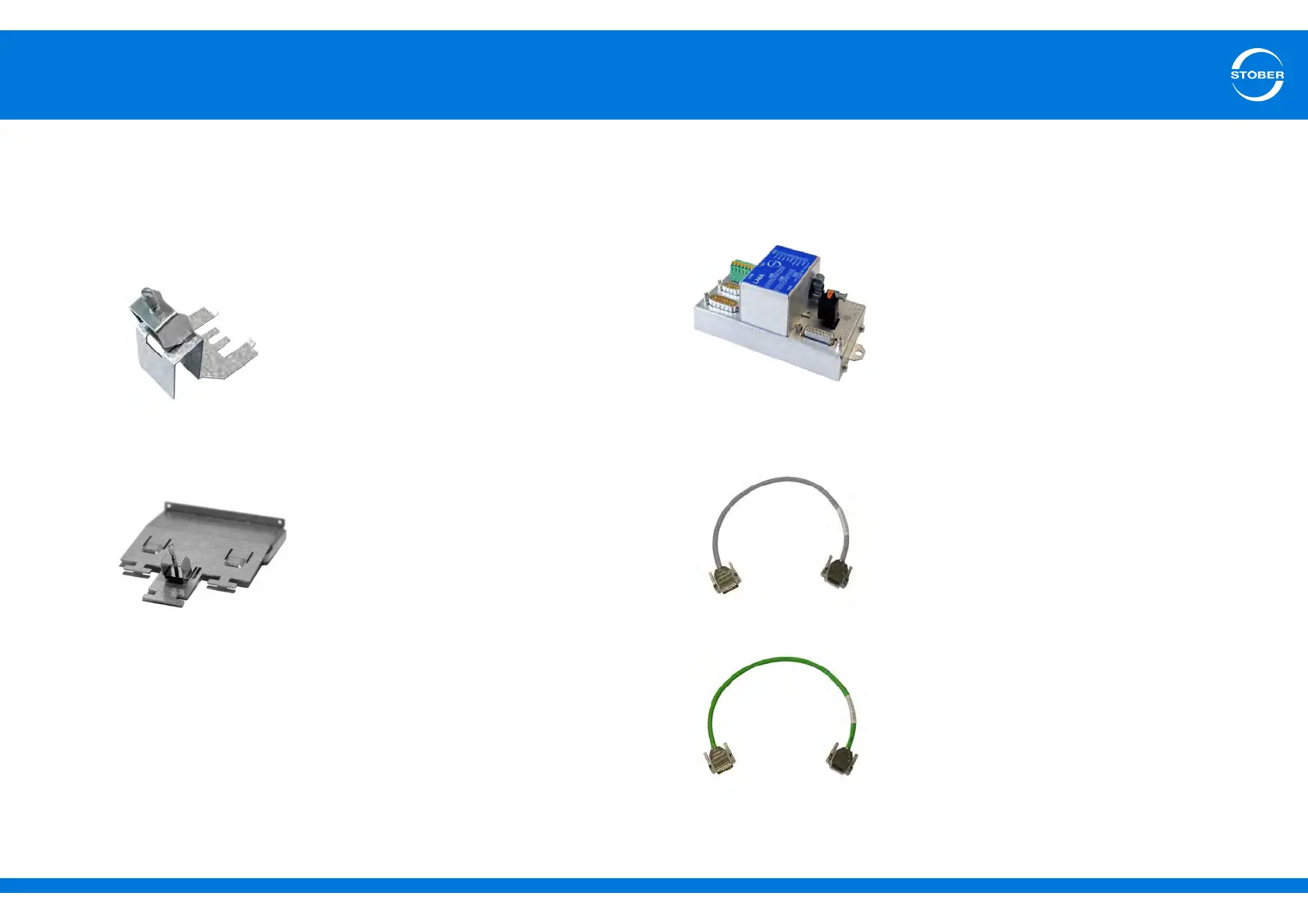

3.4.7 EMC shroud
You can use the EMC shroud EM6 to connect the cable shield of the power
cable. Two different designs are available.
3.4.8 Encoder adapter box
EMC shroud EM6A0
ID no. 135115
EMC shroud for size 0 to 2.
Accessory part for shield connection of the
motor line. Attachable to the basic housing.
Including shield connection terminal for power
cable cross-sections of 1 to 10 mm².
EMC shroud EM6A3
ID no. 135120
EMC shroud for size 3.
Accessory part for shield connection of the
motor line. Attachable on the basic housing.
Including shield connection terminal for power
cable cross-sections of 6 to 25 mm².
If necessary you can also connect the cable
shield of the braking resistor and DC link
connection on the shroud. Additional shield
connection terminals are available as
accessories for this purpose (ID No. 56521).
Encoder adapter box LA6A00
ID no. 56510
LA6 for connecting HIWIN-TTL.
Encoder adapter box for transferring TTL and
Hall sensor signals from HIWIN synchronous
linear motors to the SD6 drive controller.
LA6 for the adaptation of additional linear motors
on request.
SSI/TTL connection cable X120
ID no. 49482
Cable for connecting the TTL interface X120 to
the SD6 drive controller (on terminal module RI6
or XI6) with the X301 interface on the LA6
adapter box for transferring Hall sensor signals.
0.3 m.
POSISwitch connection cable
Cable for connecting terminals X4 to the SD6
drive controller and X300 on the LA6 adapter
box for transferring incremental encoder signals.
The following versions are available:
ID no. 45405: 0.5 m.
ID no. 45386: 2.5 m.
