Stober SD6 - Function; X20: Motor

ID 442426.04 99WE KEEP THINGS MOVING
Connection
7
Manual SD6
Cable requirements

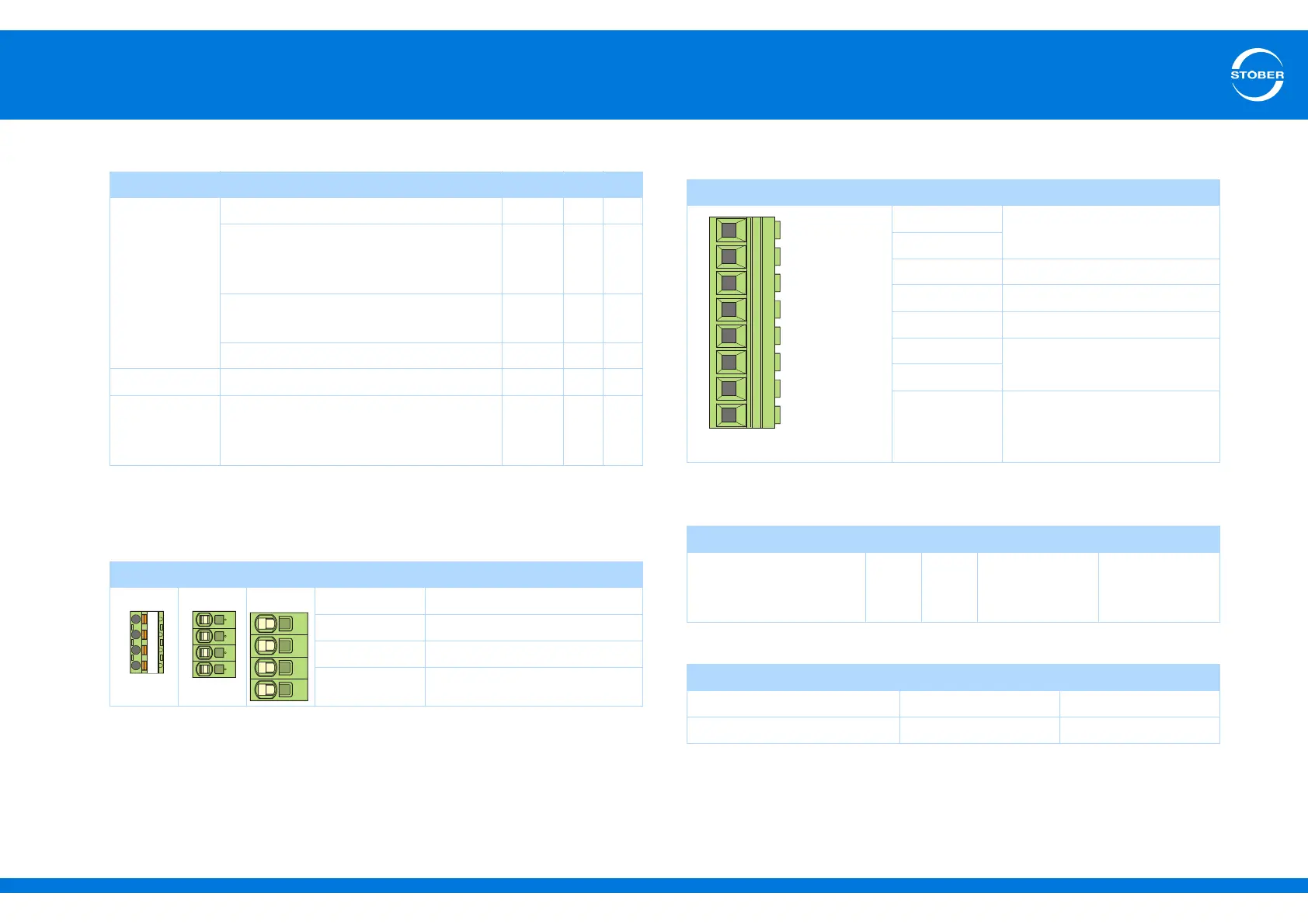

7.3.6 X20: Motor
Terminal description X20 – size 0, size 1, size 2
Terminal description X20 – size 3
Maximum conductor cross-section of power supply connection
terminals
Maximum motor cable length
Feature Line type Unit Min Max
Cross-section Fine wire line without cable end sleeve mm
2
0.14 1
Fine wire line 
with cable end sleeve without plastic
collar
mm
2
0.2 1
Fine wire line 
with cable end sleeve and plastic collar
mm
2
0.2 1
According to AWG AWG 26 18
Length — m — 30
Insulation
stripping
length
—mm—9
Pin Designation Function
Size 0 Size 1 Size 2 U Motor connection phase U
V Motor connection phase V
W Motor connection phase W
PE Protective ground
UV
W
PE
UV
W
PE
UV
W
PE
Pin Designation Function
R-
Brake resistor
R+
W Motor connection phase W
V Motor connection phase V
U Motor connection phase U
D-
DC link
D+
PE Protective ground
Size 0 1 2 3
Max. cross-section for
conductor with ferrule
[mm
2
]
2.5 4
6
(10 for rigid
conductors)
25
(35 for rigid
conductors)
Size 0 to 2 3
Without output derater 50 m 100 m
With output choke 100 m —
R- R+ W V U D- D+ PE
