ID 442426.04 132WE KEEP THINGS MOVING
Connection
7
Manual SD6

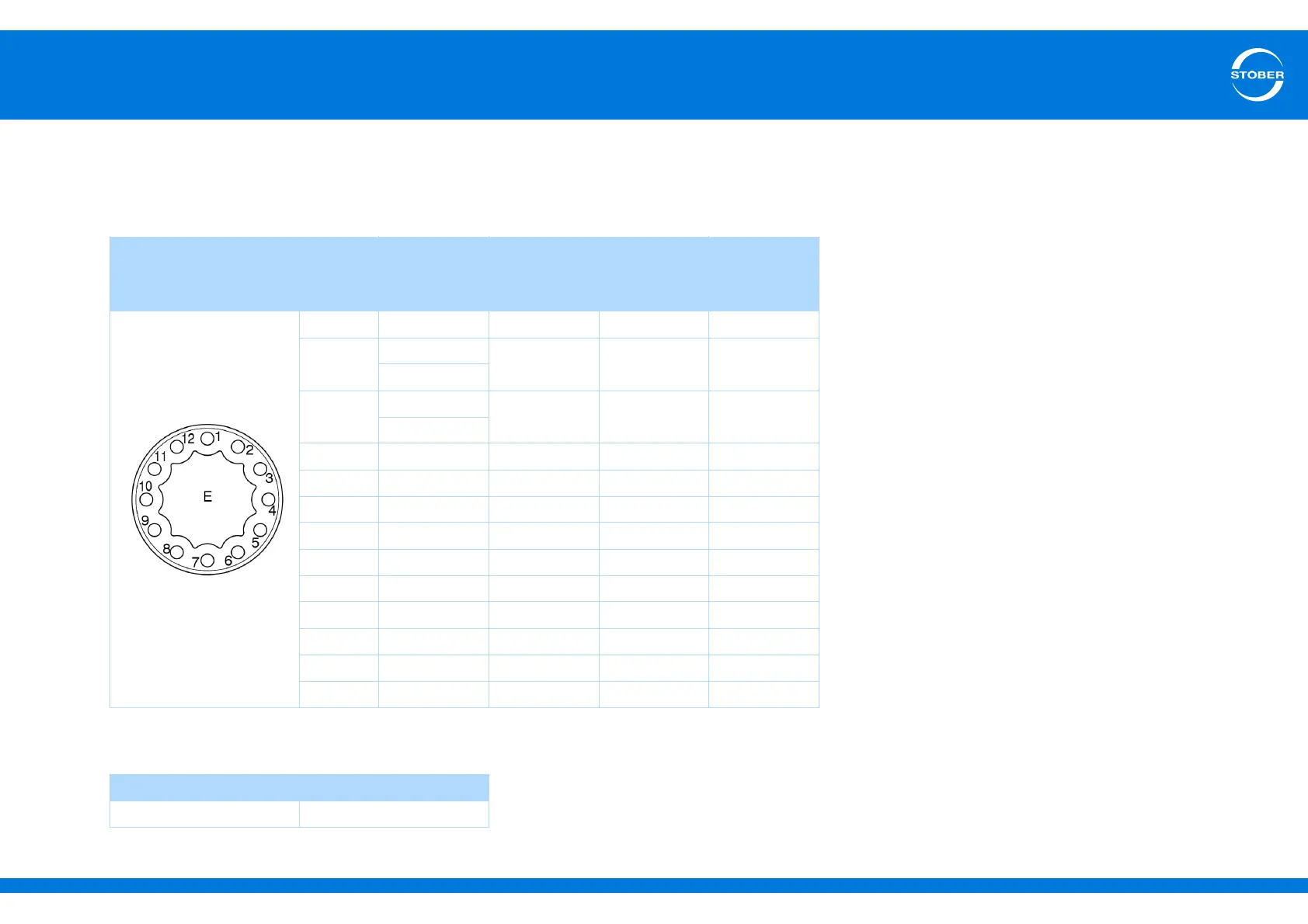

Encoder cable – plug connector con.15
The voltage supply is buffered for the inductive EnDat 2.2 digital encoders "EBI 1135" and "EBI 135" with multiturn function. In this case, pin 2 and pin 3 are assigned
to the backup battery U
2BAT
. Note that the encoder cable must not be connected to X4 of the drive controller but to the Absolute Encoder Support (AES) for these
encoders.
Motor Signal Wire colors D-sub (X4)
Angle flange socket Pin Motor-
internal
Encoder Pin
1CLK+ VT YE 8
2
Sense
BU PK 12
U
2BAT+
a)
a) Only relevant for EBI encoders.
3
—
WH GY 3
U
2BAT-
a)
4————
5 DATA- PK BN 13
6DATA+ GY WH 5
7————
8CLK- YE GN 15
9————
10 GND WHGN BU 2
11————
12 U
2
BNGN RD 4
Housing Shield
Dimensions – connector size con.15
Length [mm] Diameter [mm]
42 18.7
