ID 442426.04 75WE KEEP THINGS MOVING
Installation
6
Manual SD6
6.1 Notes on safety
Installation work is only admissible when no voltage is present. Observe the 5
safety rules.
Remove the additional covers before commissioning so that the device will not
overheat.
Note the minimum open areas specified in the technical data during installation
to prevent the drive controller from overheating.
Protect the device against falling parts (bits or strands of wire, pieces of metal,
etc.) during installation or other work in the control cabinet. Parts with
conductive properties may result in a short circuit or device failure within the
drive controller.

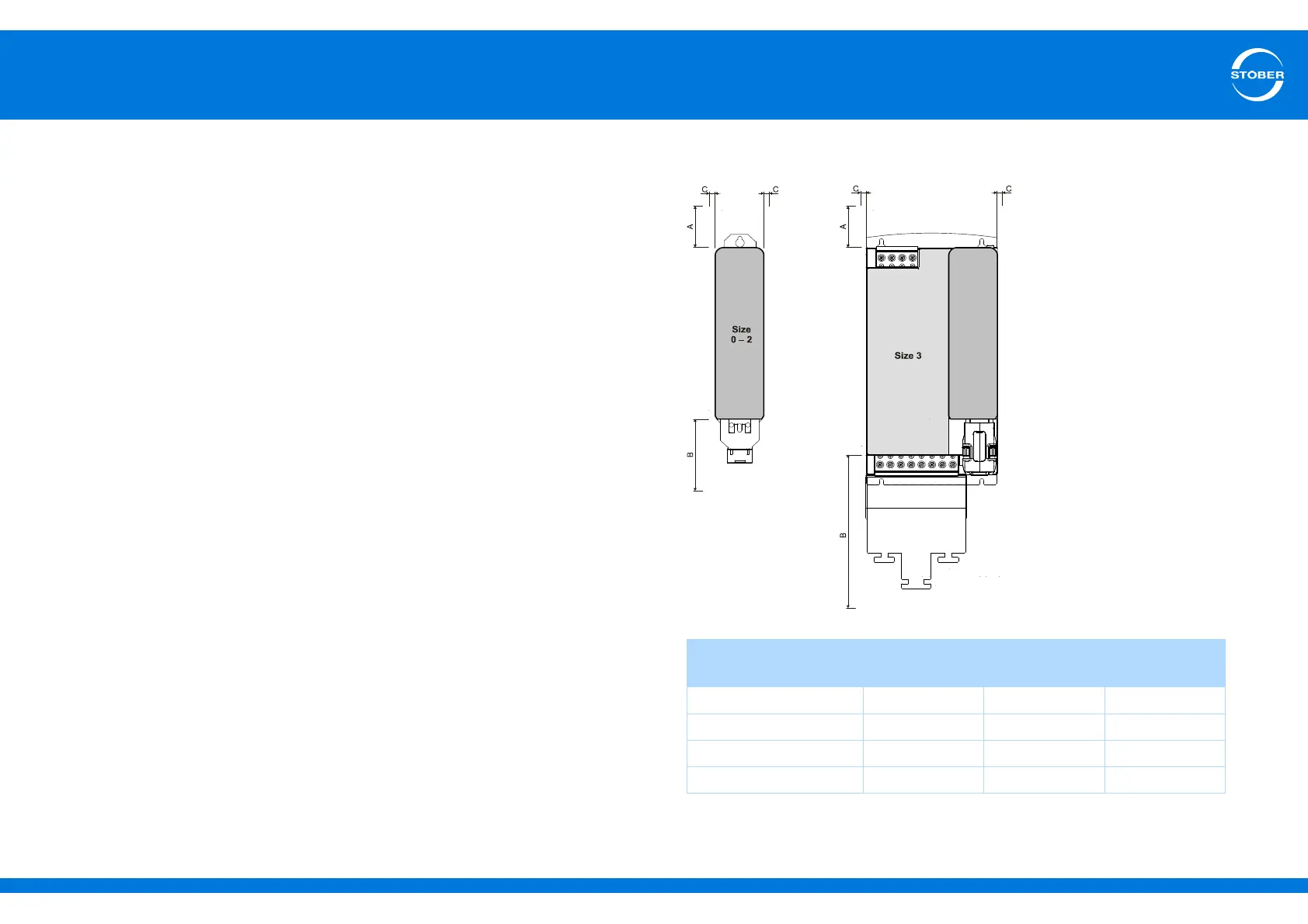

6.2 Drive controller
Min. clearance
[mm]
A
Above
B
Below
C
a)
On the side
a) Only without Quick DC-Link module DL6
Size 0 – 2 100 100 5
... with EMC shroud 100 120 5
Size 3 100 100 5
... with EMC shroud 100 220 5
